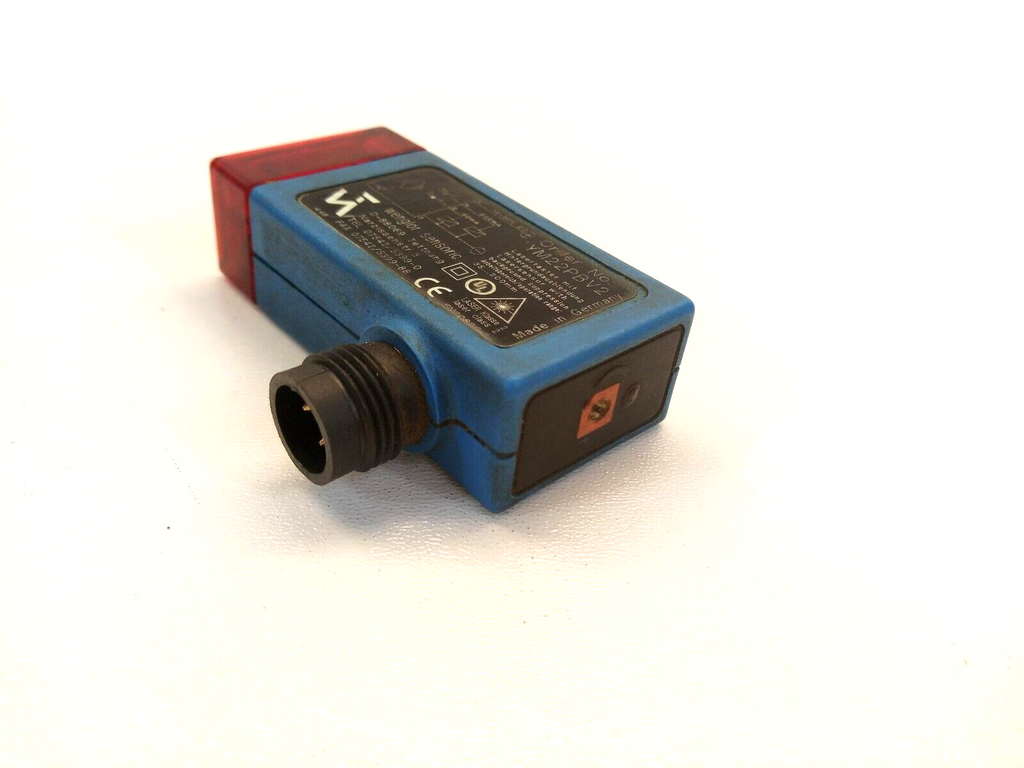

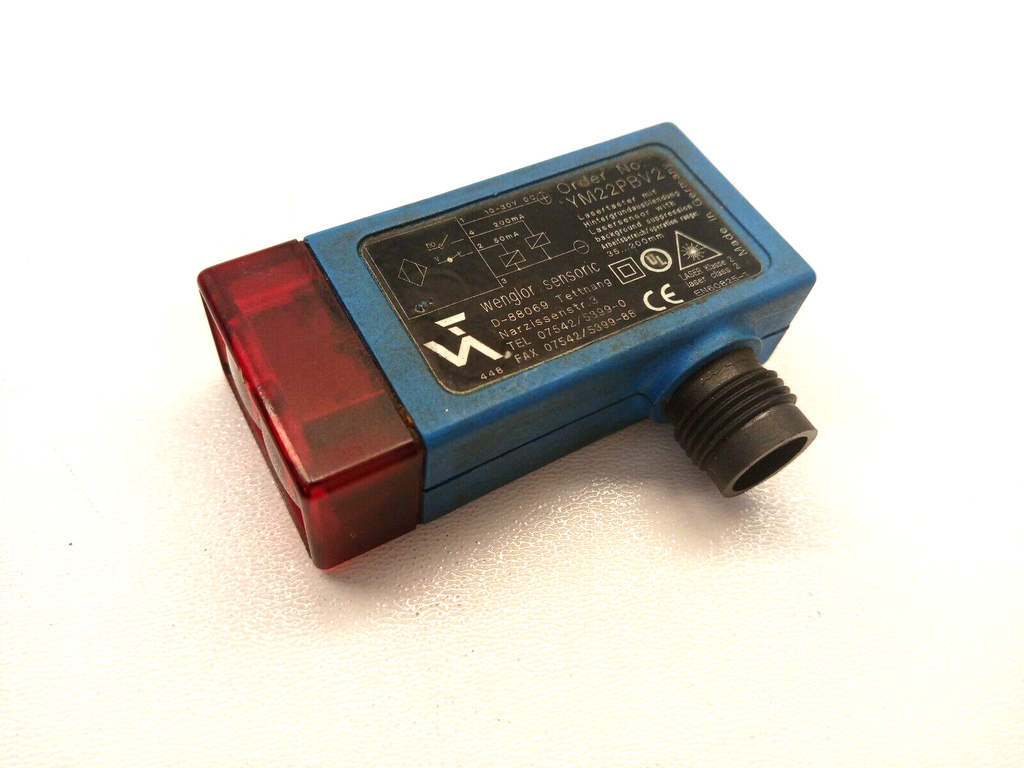

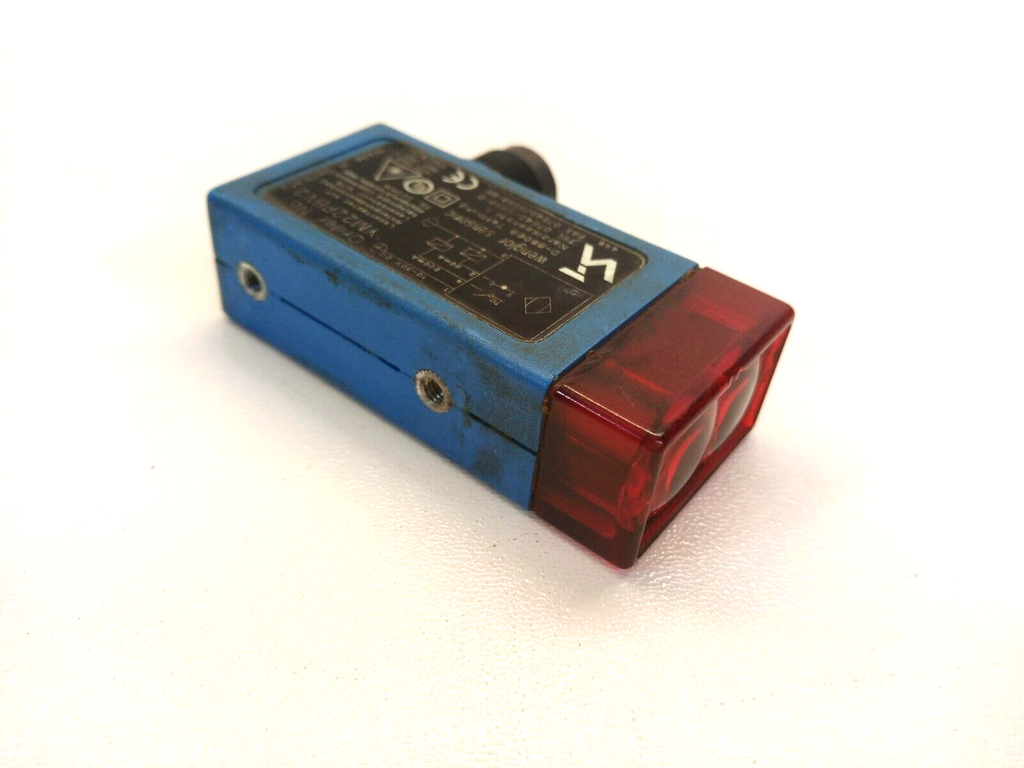

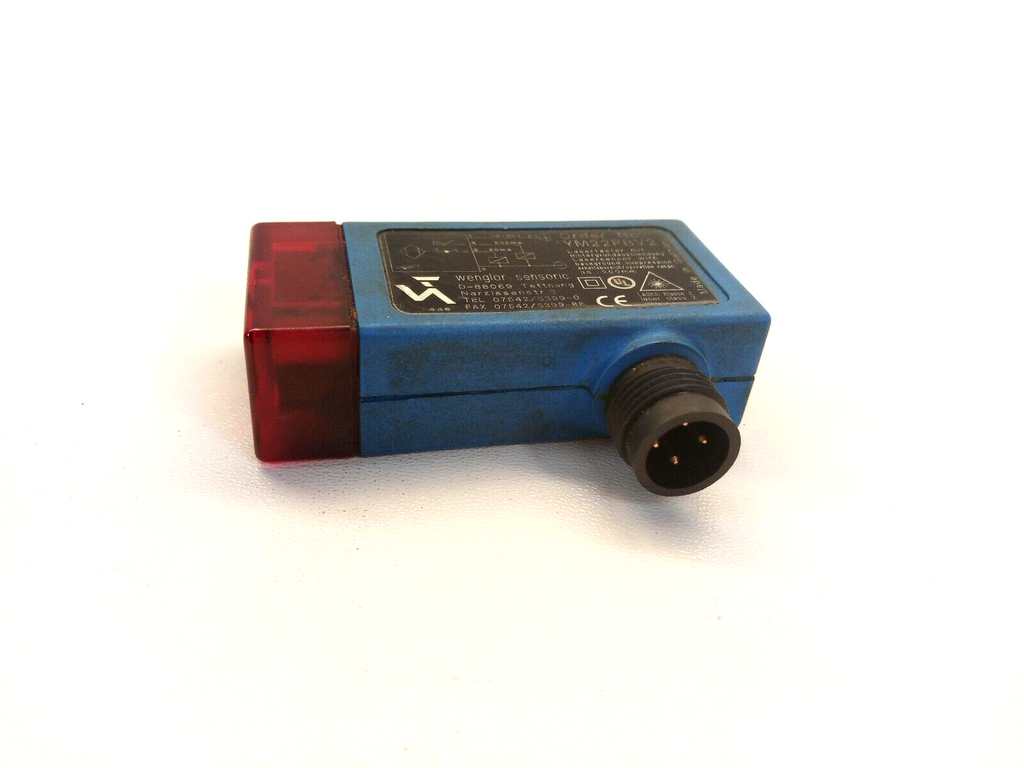

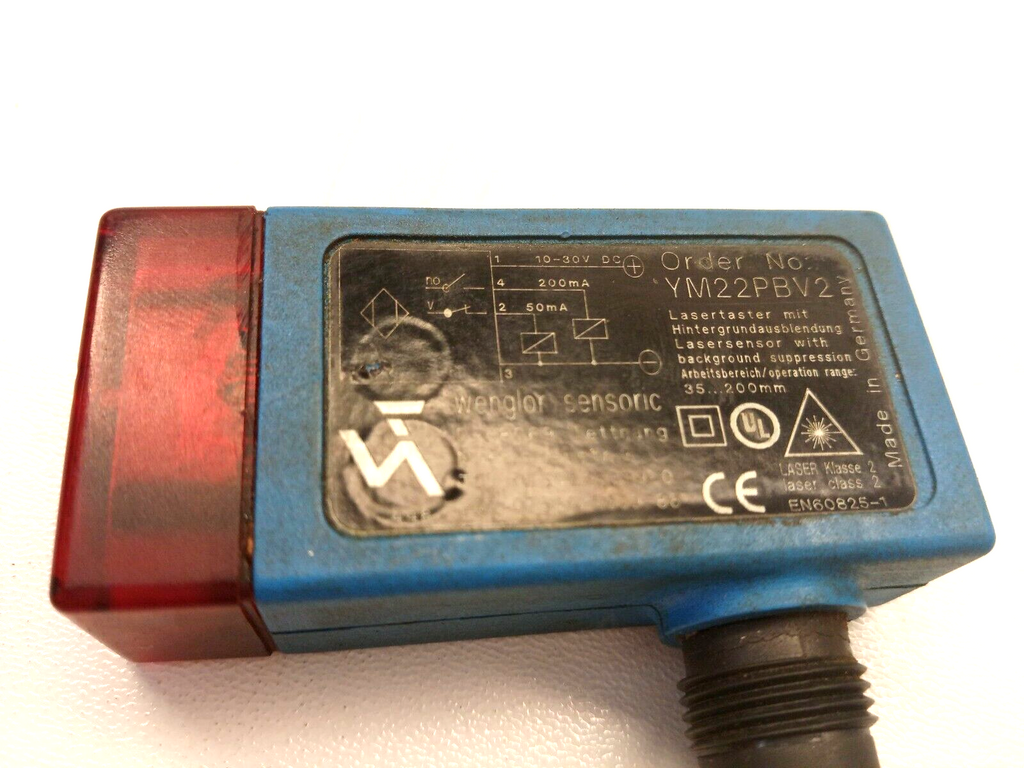

Wenglor YM22PBV2 Reflex Sensor, Reflex Switch, Sensor Switch, 200mm range, YM22 PBV2, Laser Sensor

Manufacturer description: These sensors determine the distance by angle measurement. They can particularly well detect objects in front of any background. The shape, color and surface properties of the objects have almost no influence on the switching behavior of the sensor.

Manufacturer data on technical data:
Sensing range: 200 mm
Adjustment range: 35 ... 200 mm
Switching hysteresis: < 10 %
Light type: Laser (red)
Wavelength: 650 nm
Lifetime (Tu = +25 °C): 100,000 h
Laser class (EN 60825-1): 2
Max. permissible ambient light: 10,000 Lux
Light spot diameter: 1 mm
At a distance of: 120 mm
UB 10...30 V DC
PnP 200 mA

PSH2KTL82
