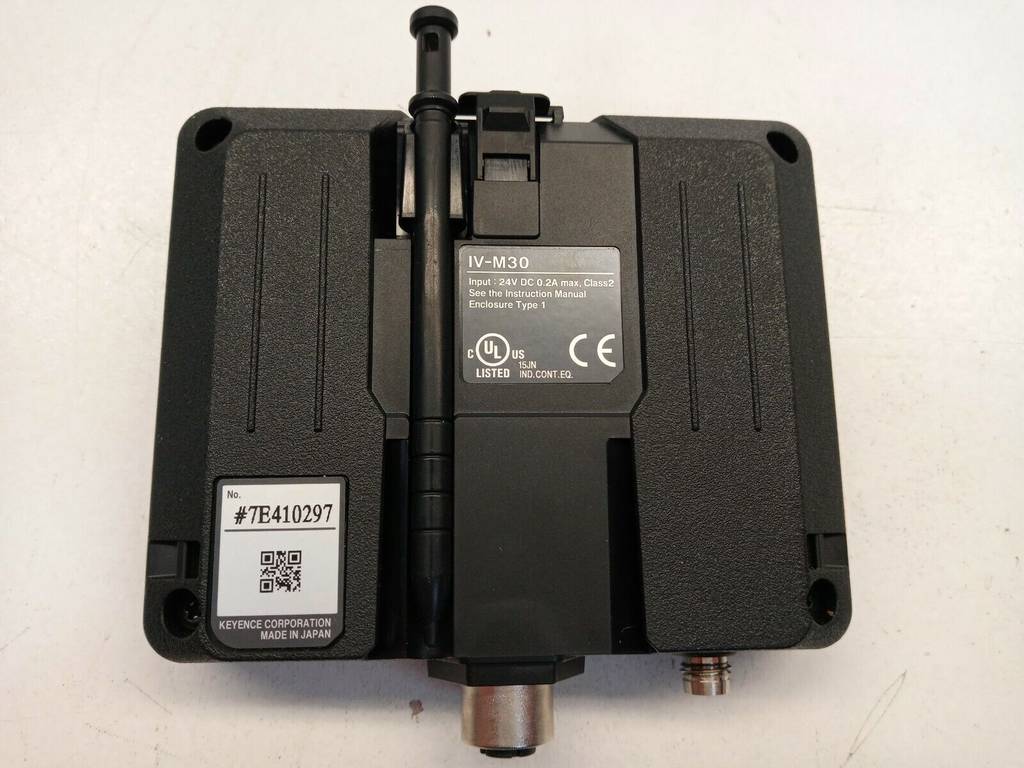

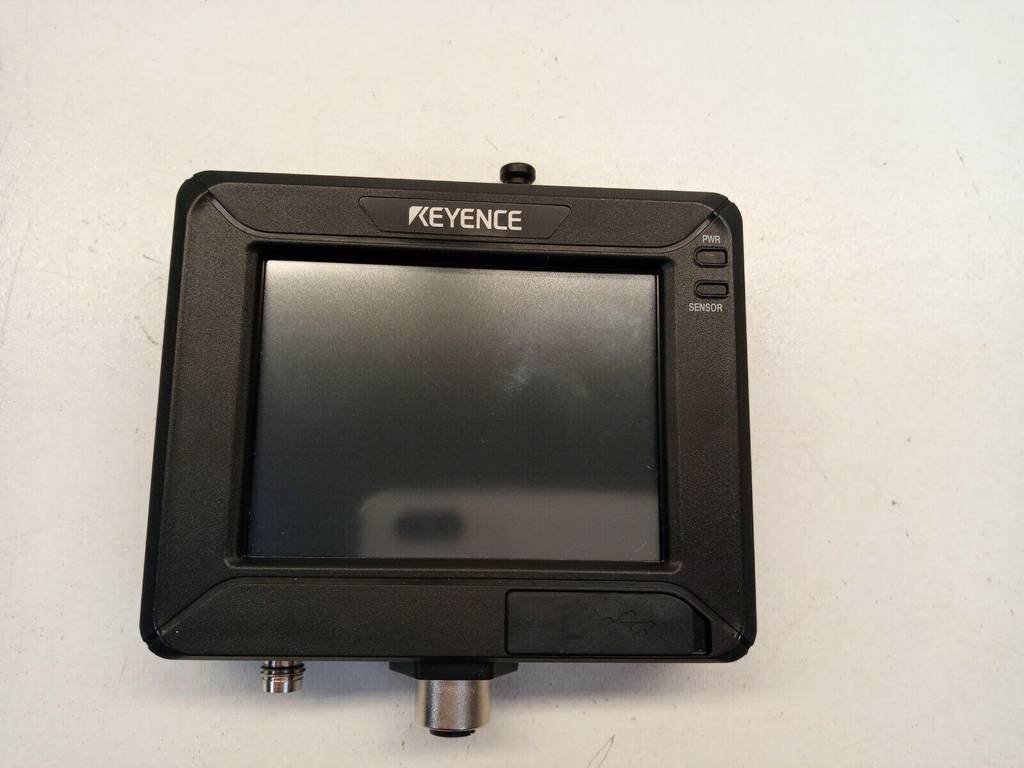

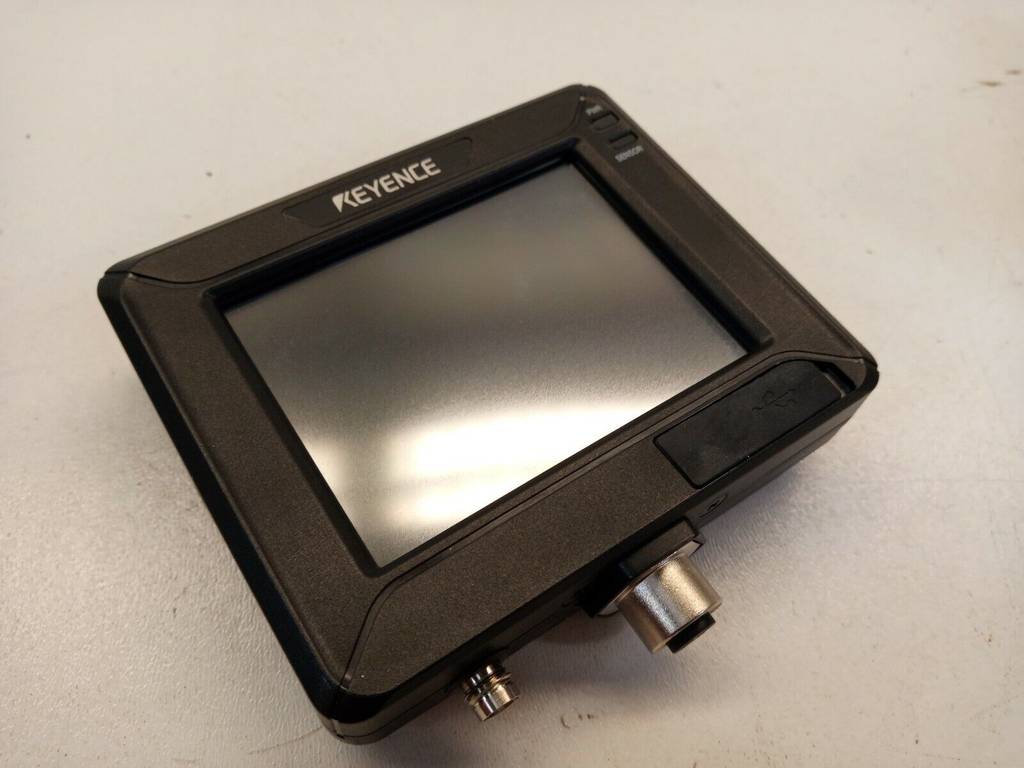

Keyence IV-M30 Intelligent Monitor IVM30 Display IV M30 QVGA

Manufacturer's technical data:

Model

IV-M30

Supported languages

Japanese/English

Display

3.5" TFT color LCD 320 x 240 dots (QVGA)

Backlight

Method

White LED

Lifetime

Approx. 50,000 hours (25 °C)

Touchscreen

Method

Analog resistive

Operating force

0.8 N or less

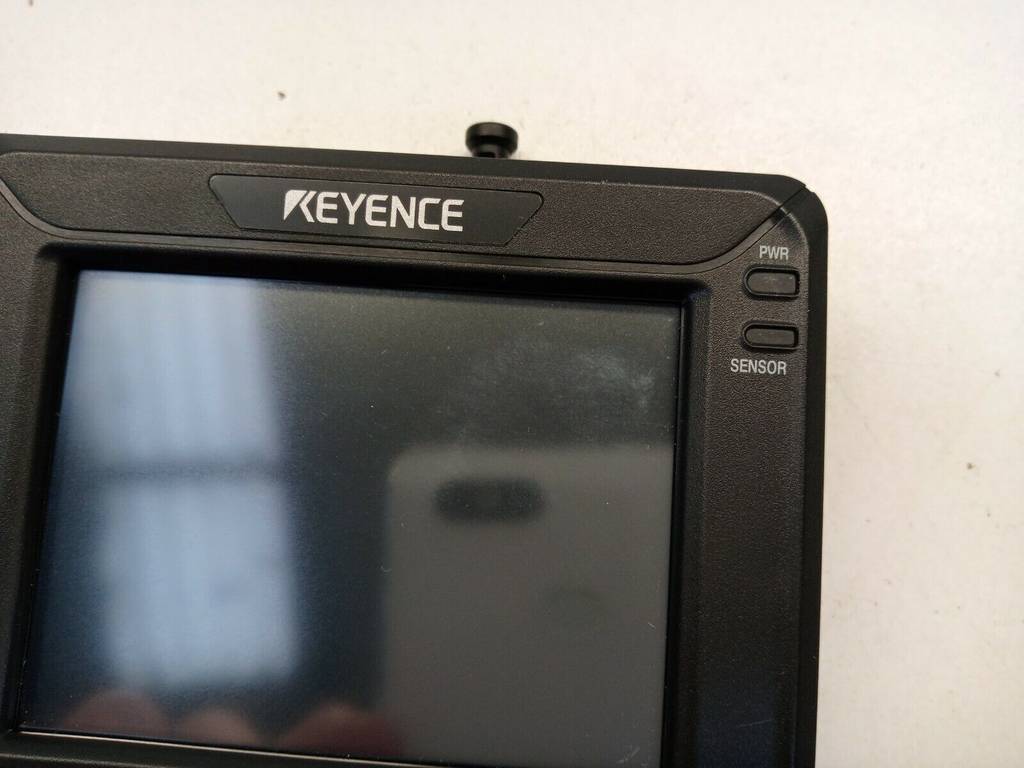

LEDs

PWR, SENSOR

Ethernet

Standard

100BASE-TX/10BASE-T*1

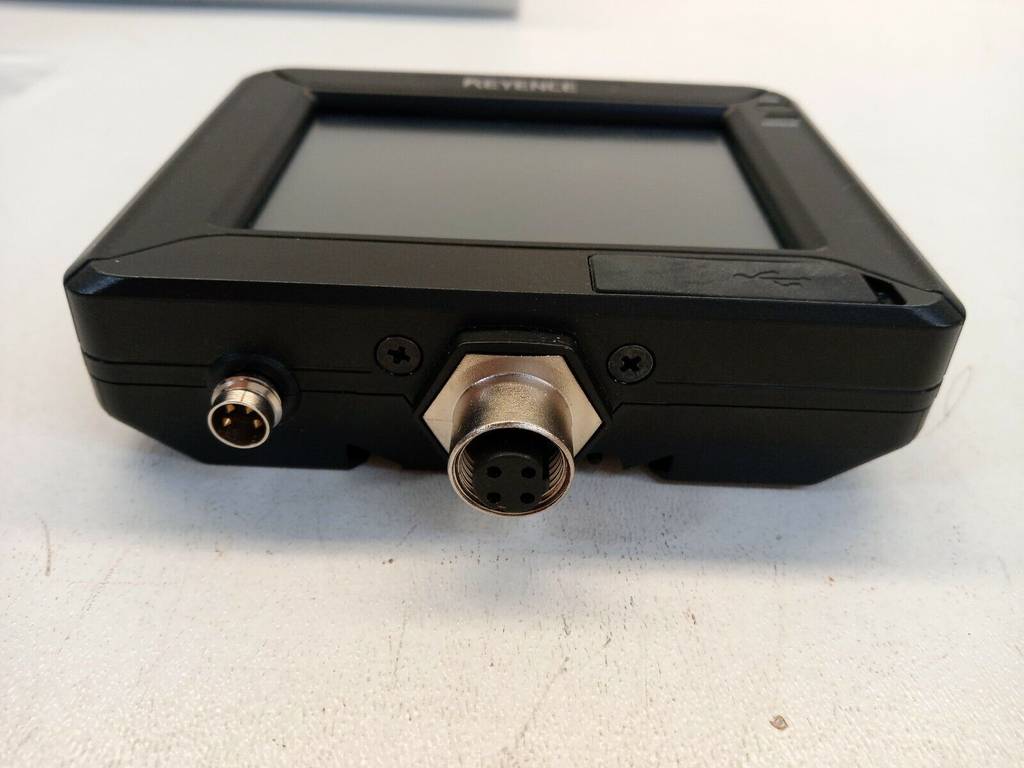

Connection

M12 4-pin connector*1

Memory expansion

USB memory*2

Ratings

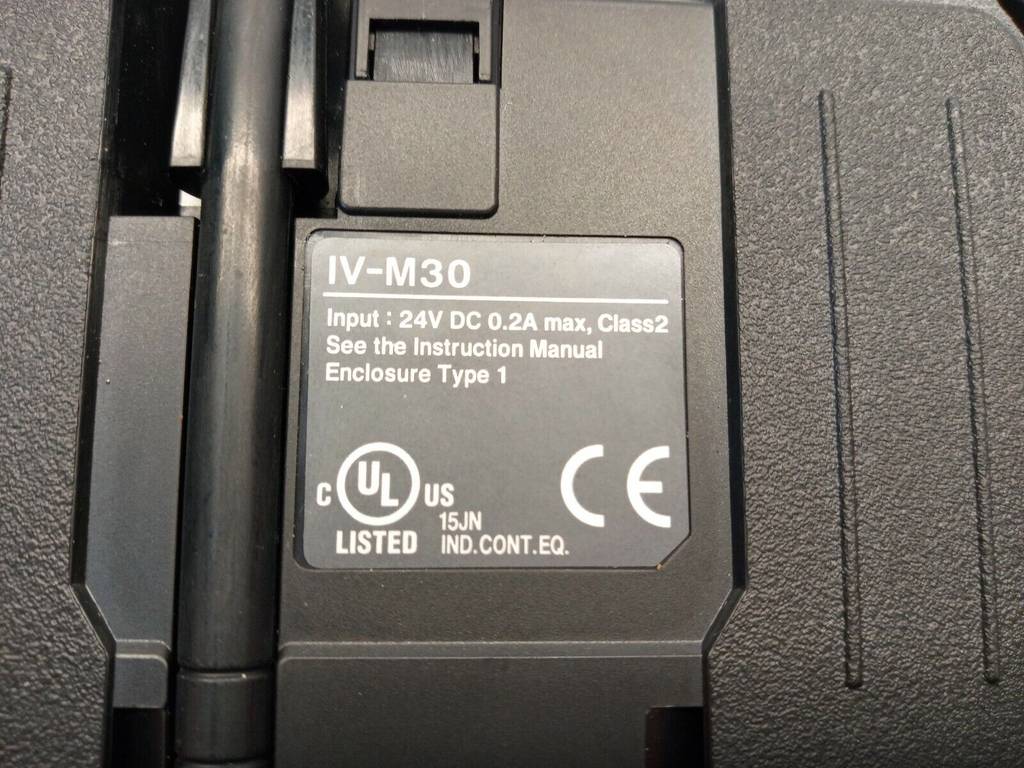

Supply voltage

24 VDC ±10 % (incl. ripple)

Power consumption

0.2 A or less

Environmental resistance

Ambient temperature

0 to +50 °C (No freezing)

Relative humidity

35 to 80 % RH (No condensation)*3

Shock resistance

1.3 m over concrete floor (twice in any direction)

Vibration resistance

10 to 55 Hz, Double amplitude 0.7 mm, 20 sweeps each in X, Y and Z directions

Material

Polycarbonate

Item condition: This item comes from a business liquidation of one of the largest automotive parts suppliers in Germany and was stored in carousels there, so some original packaging is missing and some items have storage traces.

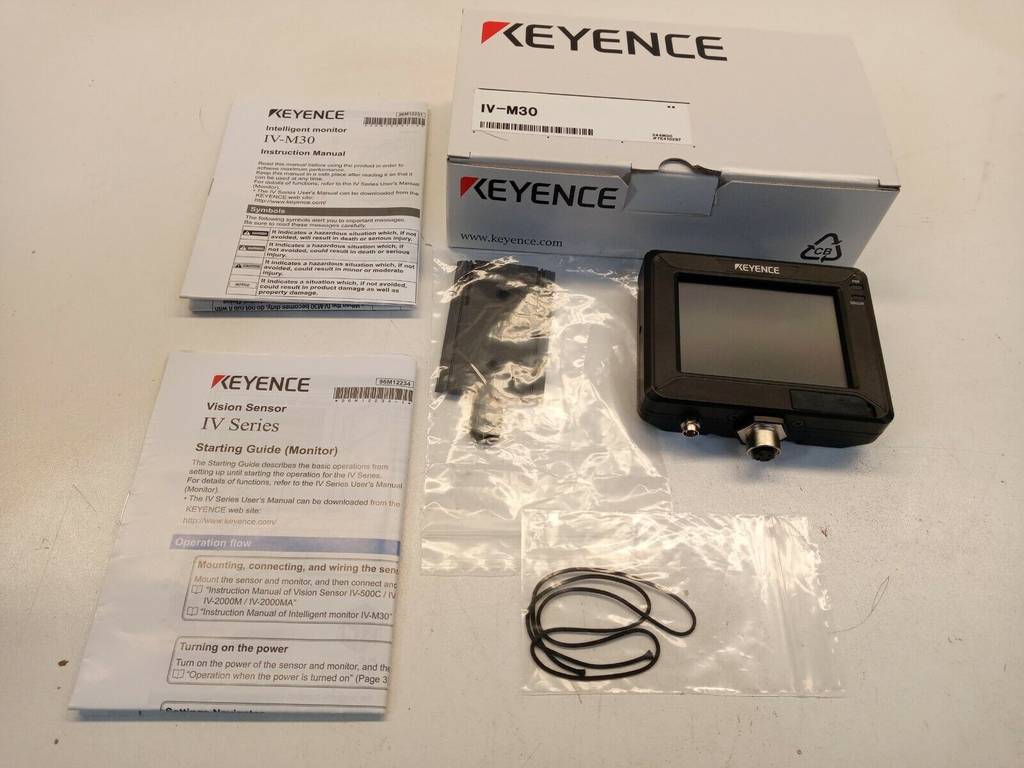

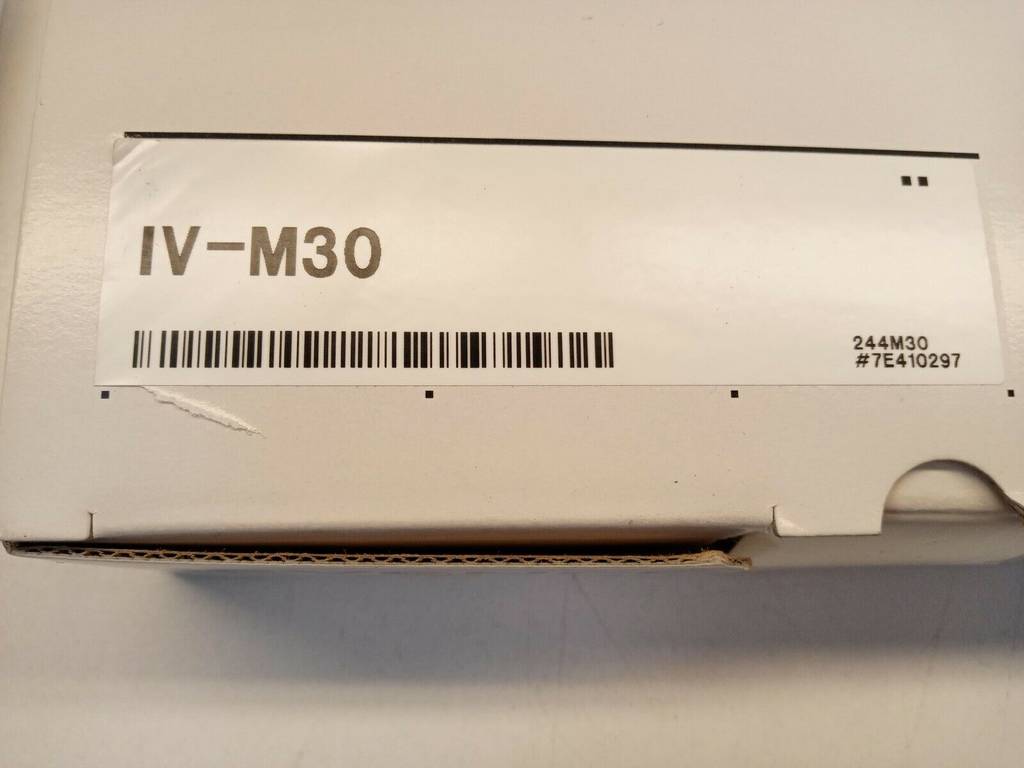

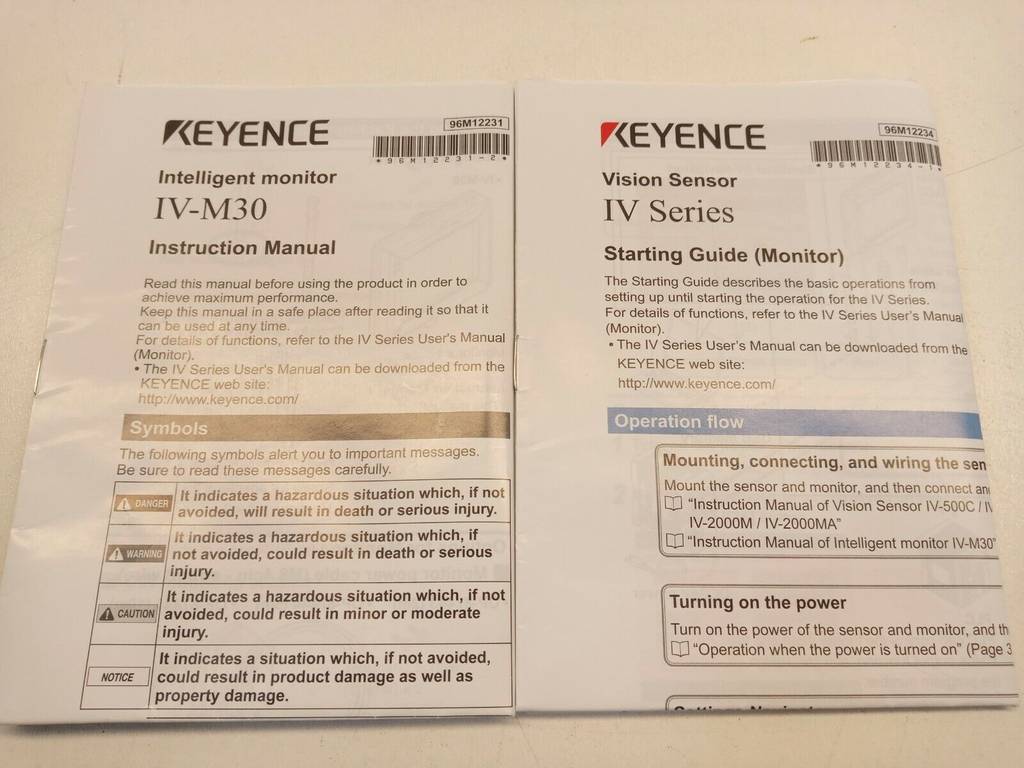

Item like new, was used if at all only rarely with original packaging, which however is no longer in top condition
