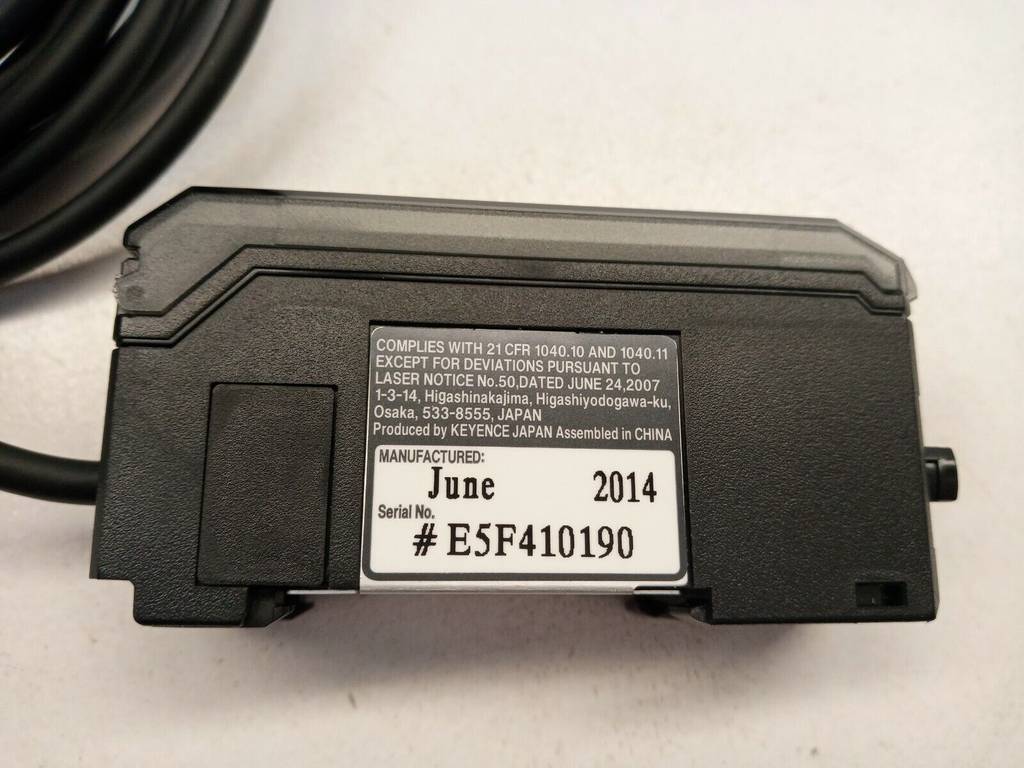

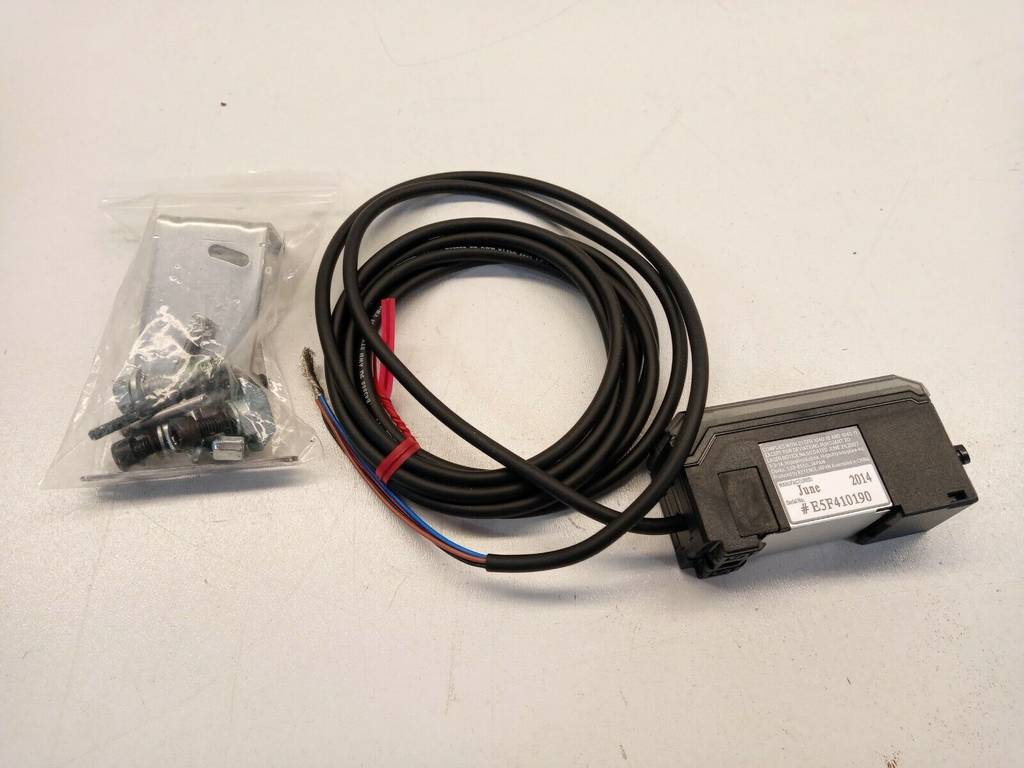

Keyence GV-21P Amplifier Main Unit GV21P PNP GV 21P Sensor Amplifier

CMOS Laser Sensor

Manufacturer's technical data:

Model

GV-21P

Type

Amplifier, Main Unit

Power Consumption

Normal

Max. 2200 mW (at 30 V: max. 73.3 mA)

Eco-Half

Max. 1700 mW (at 30 V: max. 56.7 mA)

Eco-All

Max. 1600 mW (at 30 V: max. 53.3 mA)

Display

Dual Display with 7 Segments (Actual Value: 3-digit red LED Display, Set Value: 3-digit green LED Display)
+ Dual-color 13-segment LED Bar (red, green)

Output Radiation

PNP

Control Output

PNP open collector x 2 Channels, max. 30 V DC/Max. 100 mA, Residual Voltage max. 1 V

Control Input

Emission Stop Input, Bank Switching Input, Shift Register Input, Timing Input, Response Time per Input: 20 ms

Response Time

1.5/3/10/20/50 ms

Operation Status Indicators

Control Output: red LED x 2 Channel Indicator: green LED x 2 Laser Emission Indicator green LED Other: green LED x 2/red LED x 3

Ratings

Supply Voltage

10 to 30 VDC, incl. Ripple (S-S) 10 %*1

Environmental Resistance

Ambient Temperature

-10 to +55 °C (No Freezing)

Relative Humidity

35 to 85 % RH (No Condensation)

Vibration Resistance

10 to 55 Hz, Double Amplitude 1.5 mm, 2 Hours each in X, Y and Z Axis

Material

Housing Material, Display Cover: Polycarbonate, Button Surface: Polyacetal, Cable: PVC

Item Condition: This item comes from the liquidation of one of the largest automotive parts suppliers in Germany and was stored in carousels there, so some original packaging is missing and some items have storage traces.

Item like new, was used only rarely if at all

PSH2KTL62-11
