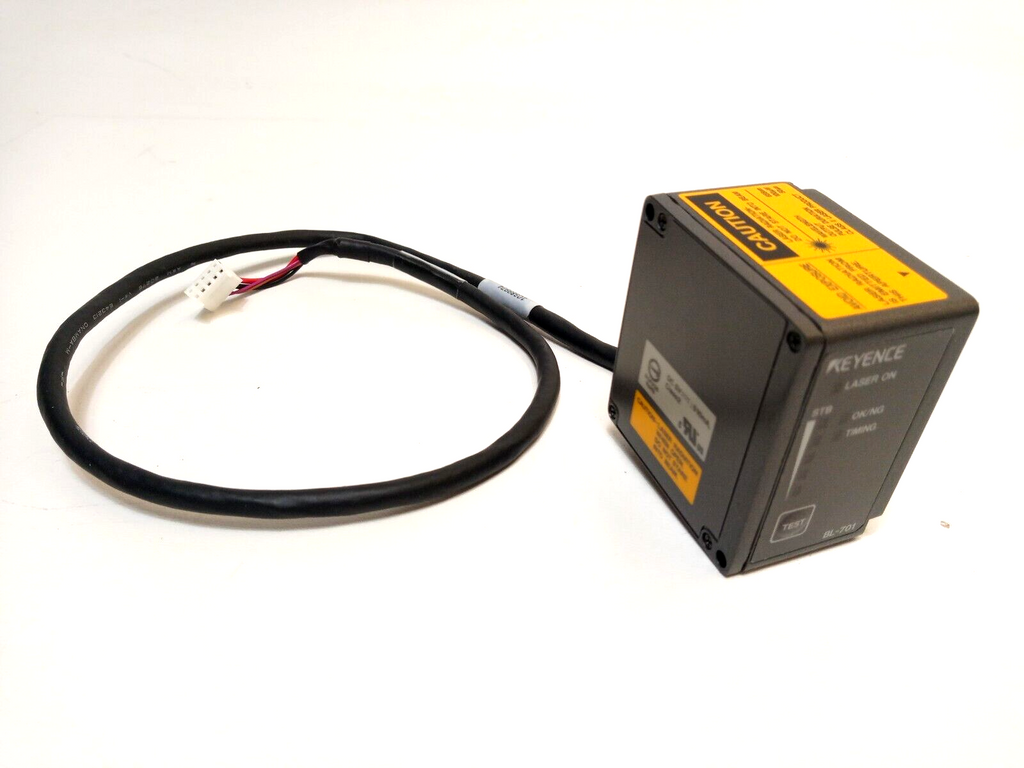

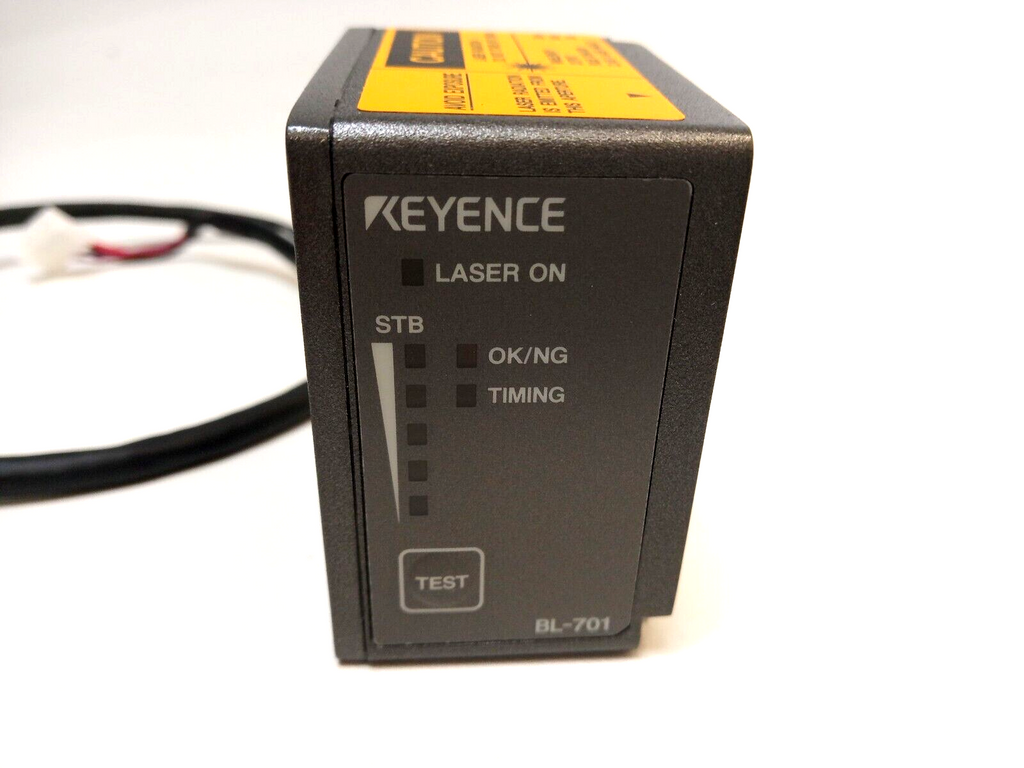

Keyence BL-701 Laser Barcode Reader with Large Reading Distance, BL701, Barcode, Reader, Barcode, OVP, High Resolution Model, Raster

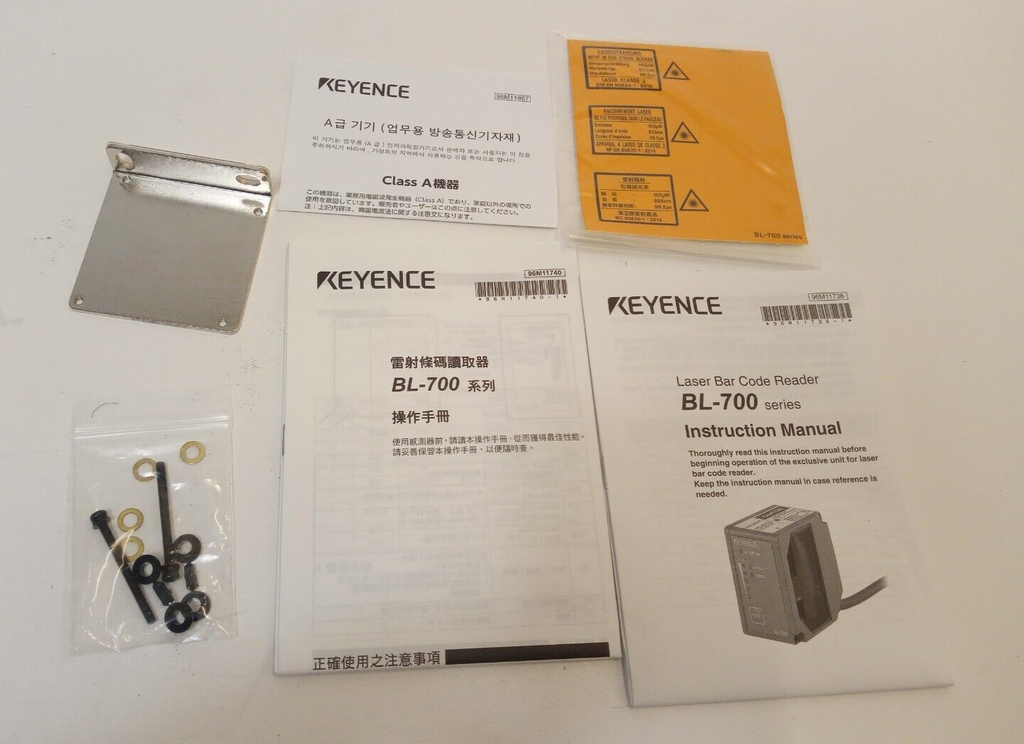

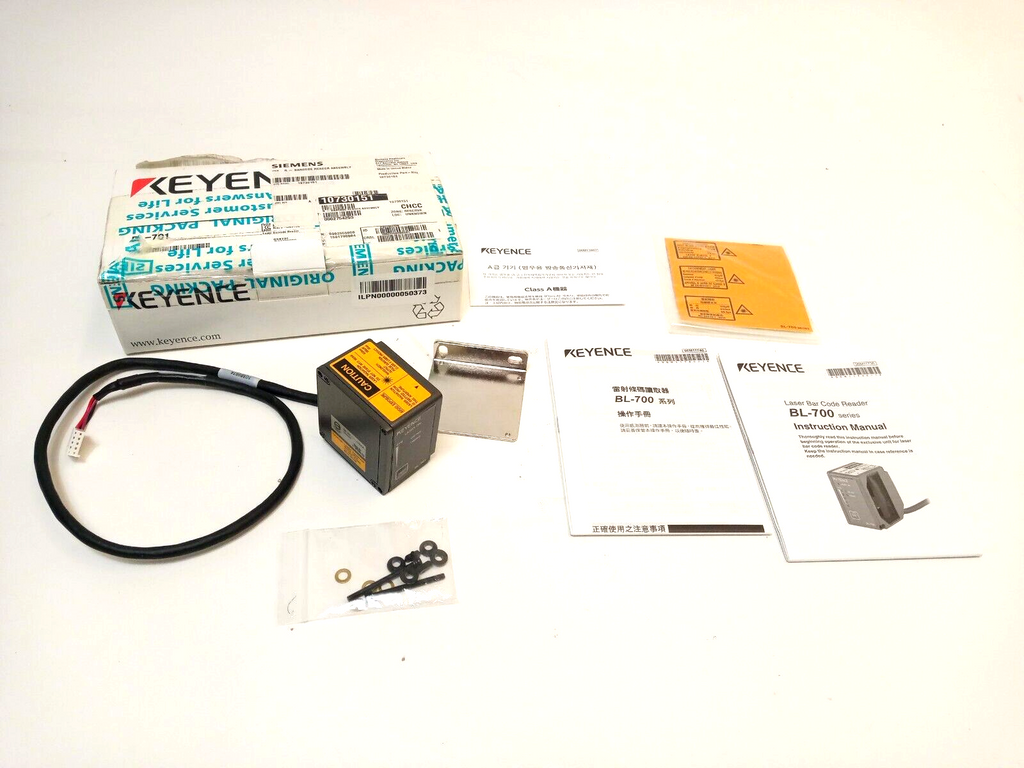

Condition: new in original packaging

Manufacturer's technical data:

Model: BL-701

Type: High Resolution

Type:

Scanning method: Raster cycle

Laser:

Light source: Visible red semiconductor laser (Wavelength: 655 nm)

Control output: 100 µW

Pulse duration: 99.5 µs (IEC 60825-1), 50 µs (FDA (CDRH) Part 1040.10)

Laser class: Class 2 laser device

Reading:

Supported codes: CODE39, ITF, Industrial 2of5, COOP 2of5, Codabar, CODE128, CODE93, EAN/UPC (A-E)

Number of readable digits: max. 32 digits*1

Readable barcode width: 0.15 mm to 1.0 mm*2

Reading distance: 160 to 370 mm (0.5 mm)

Focal distance: 230 mm

Max. readable label width: 310 mm (335 mm)*3

Print Contrast Standard (PCS): 0.6 or higher (Reflectance of white area: 75% or more)

Scan frequency: 700 scans per sec.

Technical data of inputs and outputs:

Input terminals:

Number of inputs: 1

Input format: Voltage-free or voltage-carrying input*4

Output terminals:

Number of outputs: 2 (OK and NG)

Output radiation: NPN open collector 100 mA (max. 40 V)

Rated load: 24 VDC, 30 mA

Leakage current (when OFF): 0.1 mA or less

Residual voltage (when ON): 0.5 V or less

Serial interface:

Communication method: Compliant with EIA RS-232C

Baud rate: 600, 1200, 2400, 4800, 9600, 19200, 31250, 38400 bps

Synchronization between transmitter and receiver: Asynchronous

Data bit length: 7/8 bit

Stop bit length: 1/2 bit

Parity check: None/Even/Odd

Ratings:

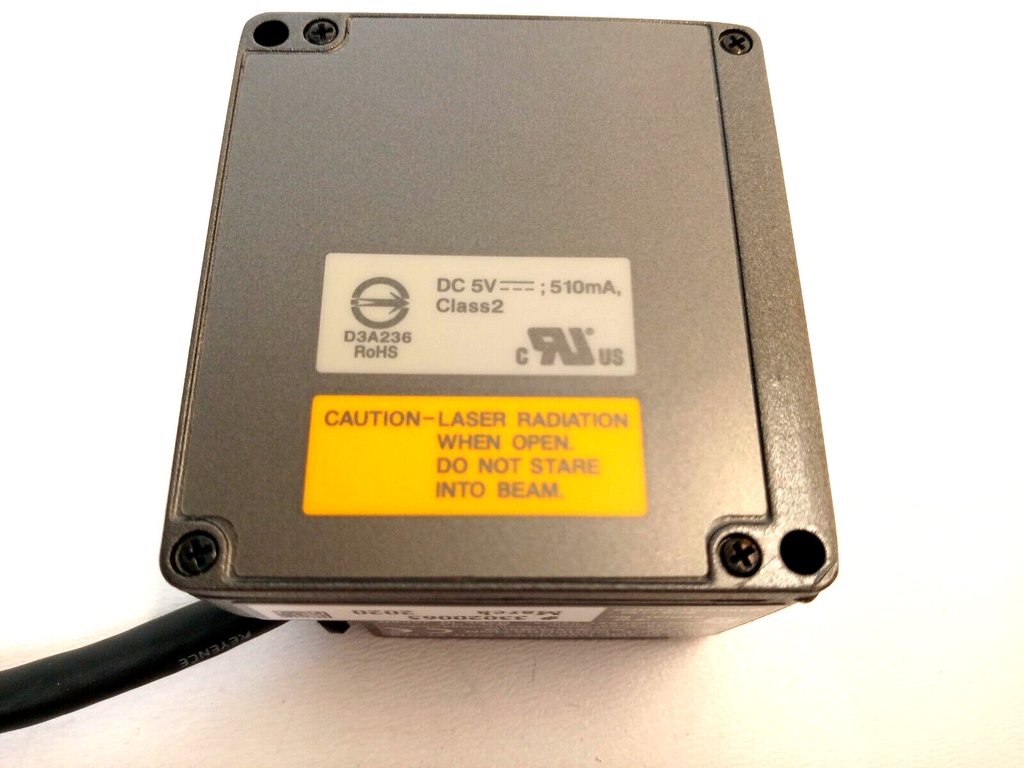

Supply voltage: 5 VDC ±5%

Power consumption: 510 mA or less

Environmental resistance:

Protection class: IP65

Ambient light: Sunlight: max. 10,000 Lux, Incandescent lamp: max. 6,000 Lux

Ambient temperature: 0 to +40 °C

Relative humidity: 35 to 85% RH (No condensation)

Operating environment: No dust, no corrosive gases

Vibration resistance: 10 to 55 Hz, Double amplitude 1.5 mm, 2 hours each in X, Y and Z directions

PS
