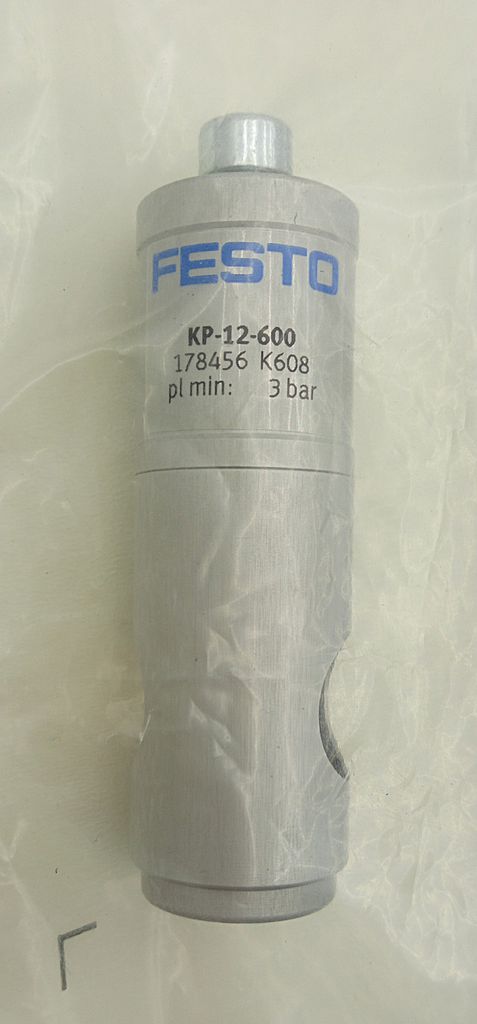

Festo 178456 KP-12-600 Spring steel clamping cartridge tilting wedge mechanism KP12600

The KP-12-600 is a compact and robust chuck designed for pneumatically clamping round stock up to 12 mm in diameter. It utilizes spring force for secure holding and compressed air release and employs a tilting wedge design to achieve static holding forces of up to 600 N at 10 bar operating pressure. This chuck is suitable for installation in any orientation and features an optional piston rod, an anodized aluminum body, brass clamping jaws, a POM piston, and NBR/TPE-U(PU) seals. The unit operates reliably in temperatures ranging from -10 °C to +80 °C and meets ISO 8573-1:2010 standards for medium cleanliness. With moderate corrosion resistance (CRC 2) and LABS compliance, it offers durable performance in industrial automation systems and tooling applications.

Technical details:

Brand: Festo
Model name: 178456
Clamping type: From both sides
Corrosion resistance class: CRC 2 (moderate load)
LABS (LABS) Conformity: VDMA 24364-B1/B2-L
Ambient temperature (operating): -10 °C to +80 °C
Seals: NBR and TPE-U (PU)
Spring material: Spring
steel Housing material: Anodized aluminum
Jaw material: Brass
Piston material: POM
Net weight: Approx. 50 g

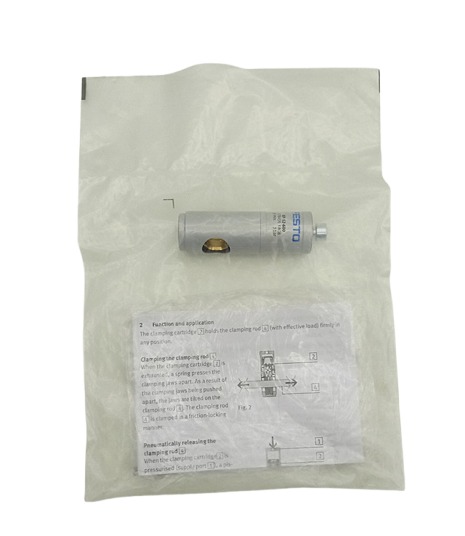

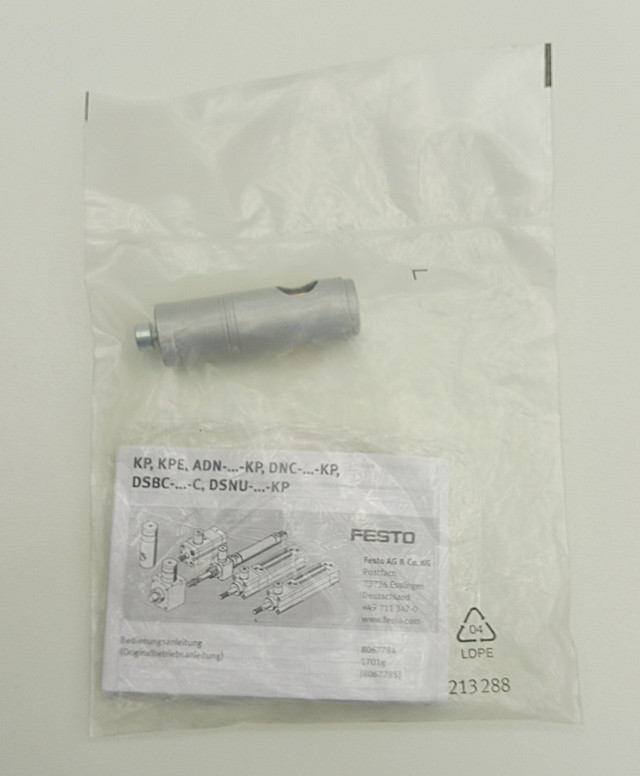

Condition: Comparable to pictures

A notice:

For detailed technical data and processing instructions, we strongly recommend consulting the original data sheets or contacting the manufacturer directly.
