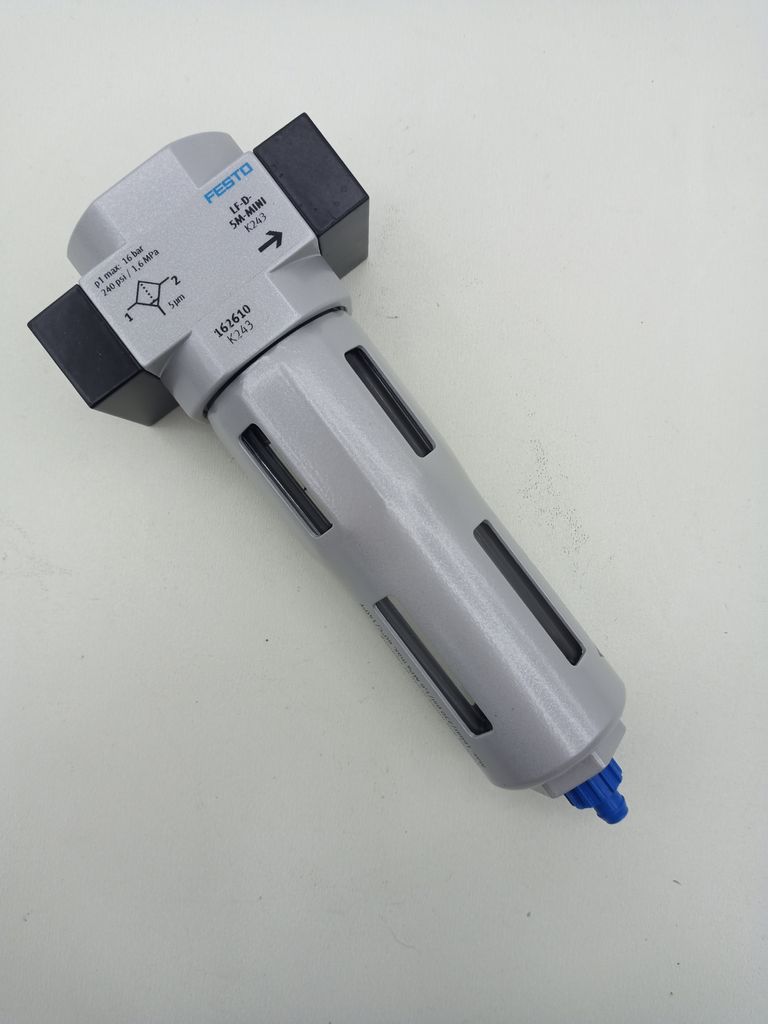

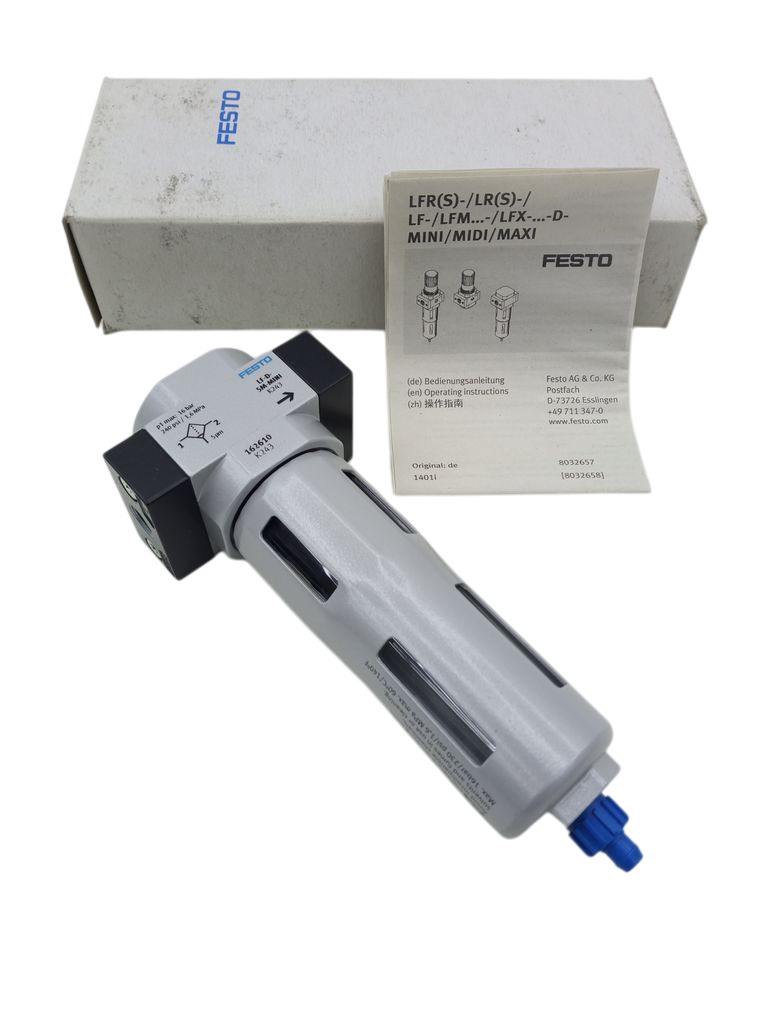

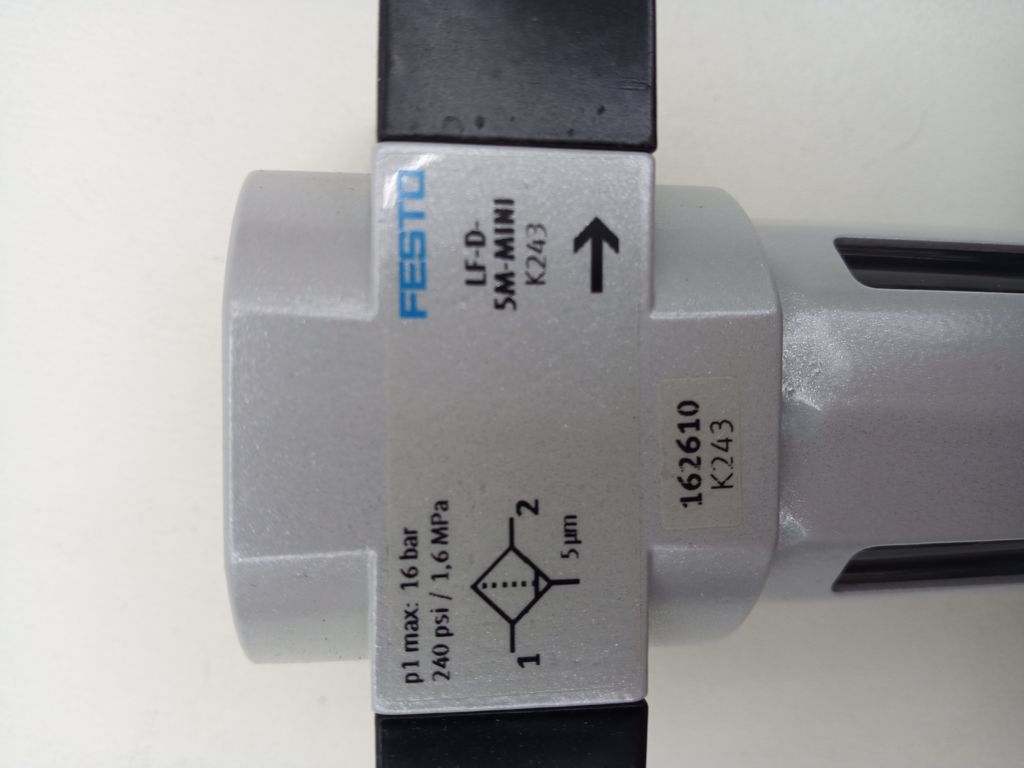

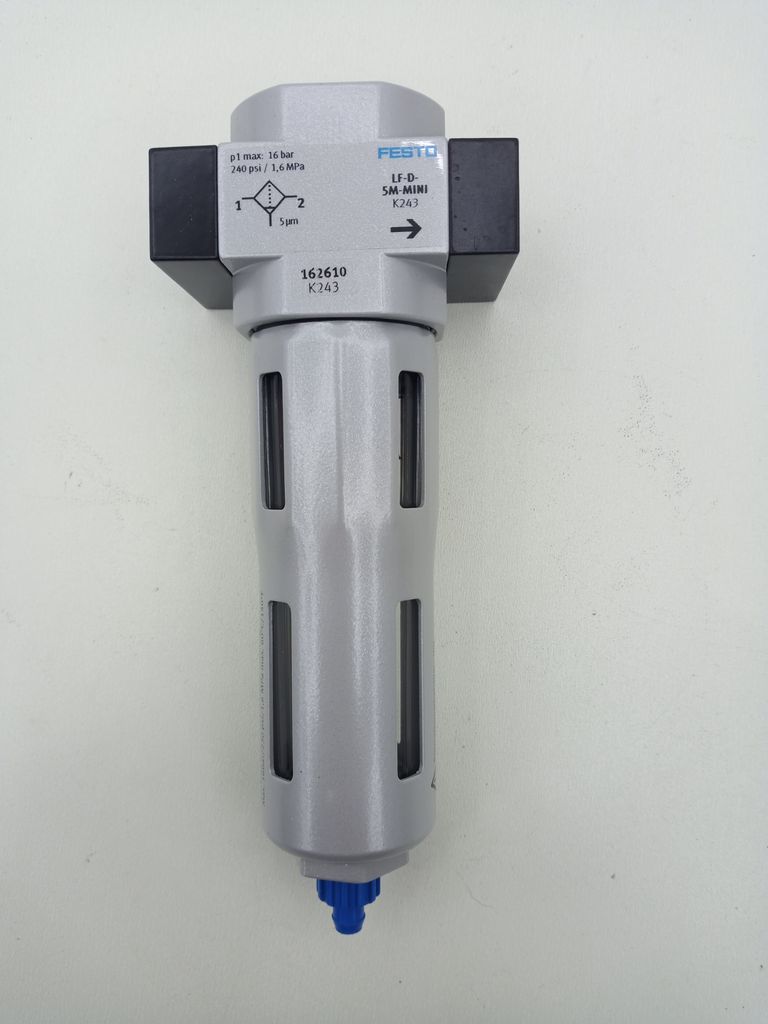

Festo 162610 LF-1/8-D-5M-MINI Compact compressed air filter with rotating element

The Festo LF-1/8-D-5M-MINI is a compact compressed air filter that combines a sintered element and a centrifugal separator for efficient moisture removal. Compact and modular, it delivers 800 l/min with 5 µm filtration and a manual, rotatable condensate drain. Designed for in-line installation (G1/8 connections), its die-cast zinc housing, PC shell, and PE filter element ensure durability. Rated for a pressure of 0–16 bar and an operating range of -10–60 °C, it meets air quality and corrosion class CRC 2 according to ISO 8573-1:2010.

Technical Details:

Brand: Festo
Model: 162610
Type: Compressed air filter, Series D, Mini size
Filter fineness: 5 µm (sintered filter + centrifugal separator)
Condensate drain: Manual rotary mechanism
Connections: Inlet/outlet G 1/8
Materials: PE filter, die-cast zinc housing, PC container, metal protective cage
Corrosion resistance: CRC 2 – moderate stress
Condition: Images comparable

A notice:

For detailed technical data and processing instructions, we strongly recommend consulting the original data sheets or contacting the manufacturer directly.
