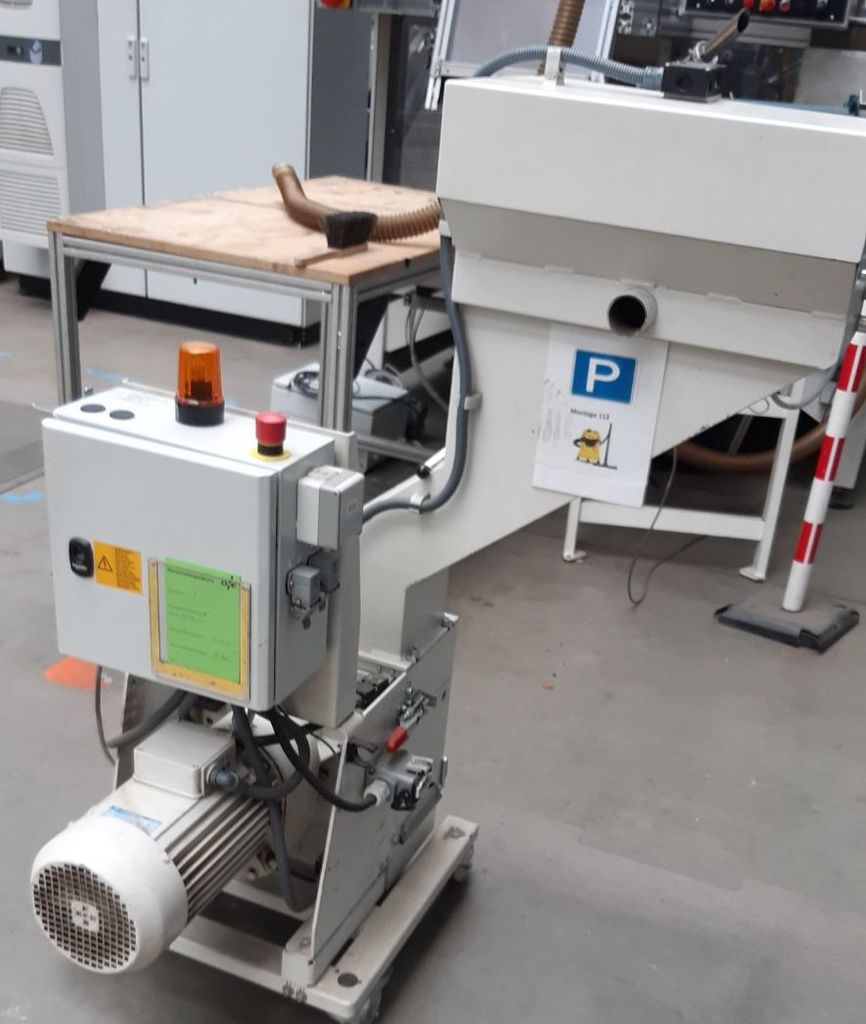

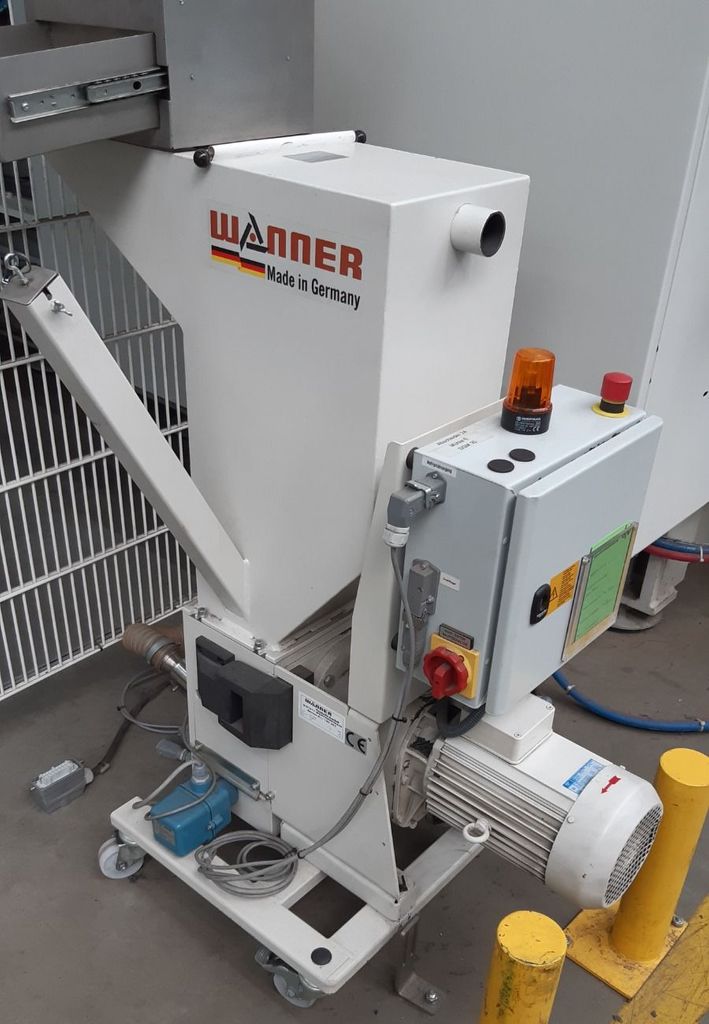

The Compact Series

The new Wanner cutting mills of the C's series ("C" stands for "compact", "s" stands for "silent" i.e. noise-optimized) offer practical solutions for almost all problems related to in-line recycling of sprues and rejects in the production process.

Due to the modular design, the cutting mills of the C's series can be easily adapted to the respective application or the requirements in the plant.
Depending on the type and method of feeding the sprues, the disposal of the ground material, or the injection molding machine used,
the C's series from Wanner offers optimal solutions that can be adapted to your respective operating process through a variety of standard components.
The optimized cutting geometry and the low rotor speed guarantee high-quality ground material with a low dust content, sound-insulated feed chutes and
the grinding chamber design optimized in terms of structure-borne noise and natural vibration contribute to a low noise level.
The generously dimensioned gearbox ensures a long service life of the cutting mills and also allows for extremely compact dimensions.
The grinding chamber can be opened very easily with just a few manual steps, which saves time and thus costs, e.g. for cleaning due to a change of color or material.

The advantages of the C's series

easy adaptation to the respective application through a modular system
compact design requires only little space next to the injection molding machine
solid, castor-mounted cast/steel housing
robust motor/gearbox unit for long service life
significantly reduced noise level due to helical rotor and vibration-optimized grinding chamber design.
easy handling and easy cleaning
of the mill save time and costs
improved feeding behavior of bulky sprues
and ground parts due to optimized rotor geometry
grinding chamber with hardened inserts for minimal
wear with GF material
high-quality and low-dust ground material due to
optimized cutting geometry. The co-rotating disc
in the side wall reduces friction and thus
heating and damage to the ground material.
Knives can be easily re-sharpened without tools
sound-insulated and tamper-proof feed chutes

Technical data

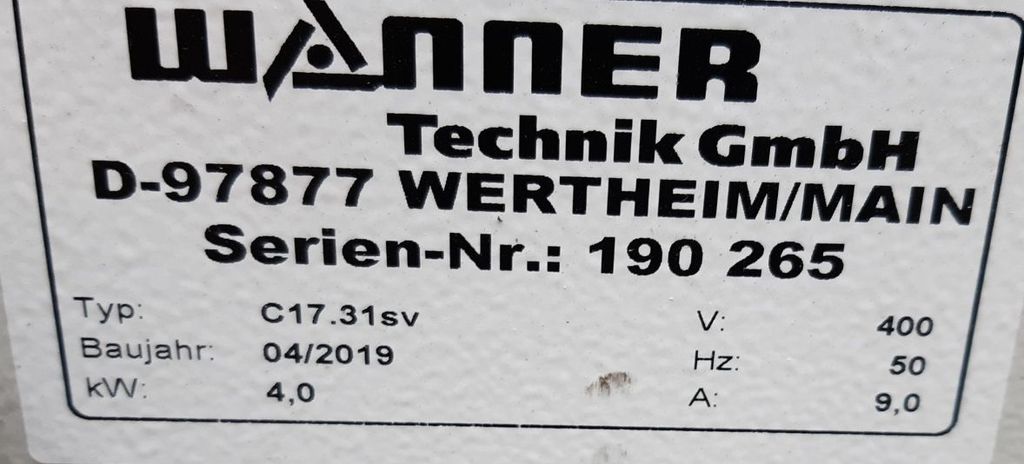

Manufacturer: Wanner
Type: C17.31sv
Grinding chamber opening: 170 x 320 mm²
Rotor diameter: 220 mm
Rotor knives: 12
Stator knives: 2
Throughput: 25-30 kg/h
Screen hole size: 3-8 mm
Voltage: 400 Volt/ 50 Hz
Suction container: Vol. approx. 7 l
Suitable for GF material as standard

Control:
Contactor control with overcurrent protection switch
Electrically redundantly designed with self-monitoring safety relay according to EN 12012
5 m connection cable

Weight: 165 kg
Year of manufacture: 04/2019

Product video
