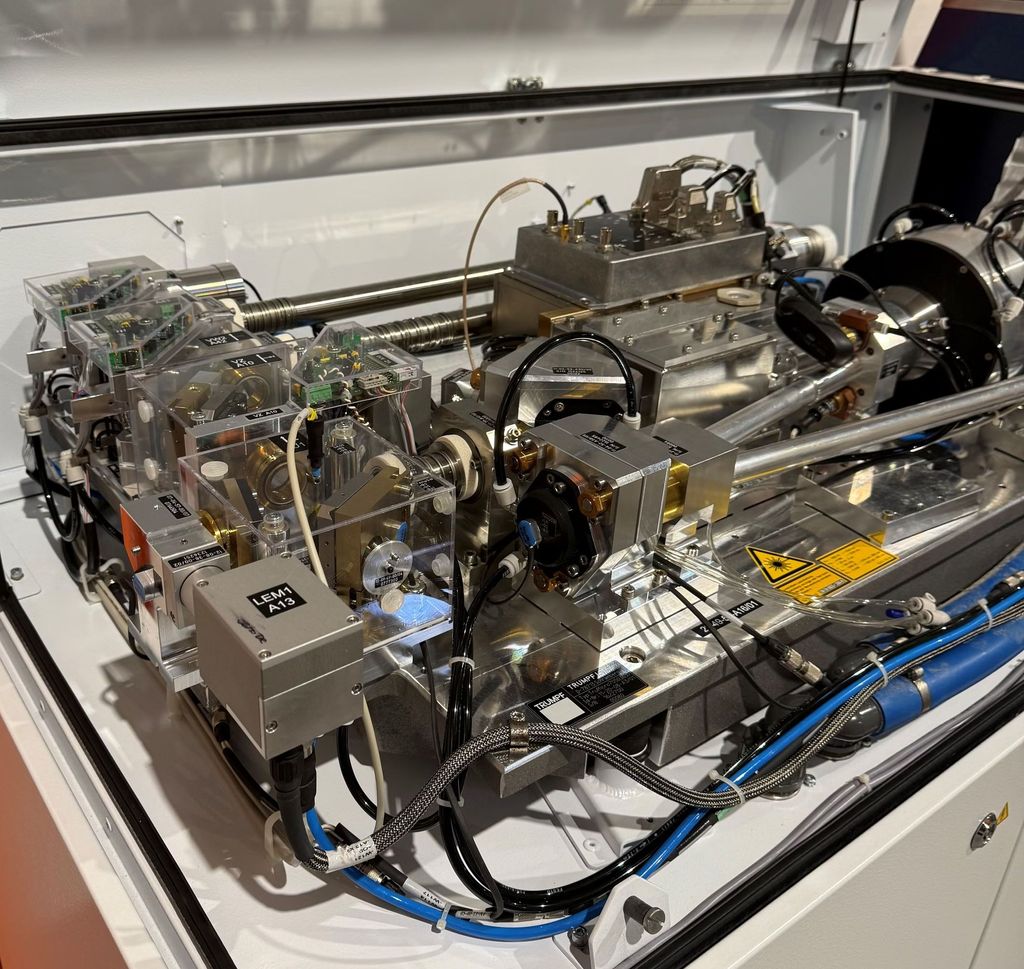

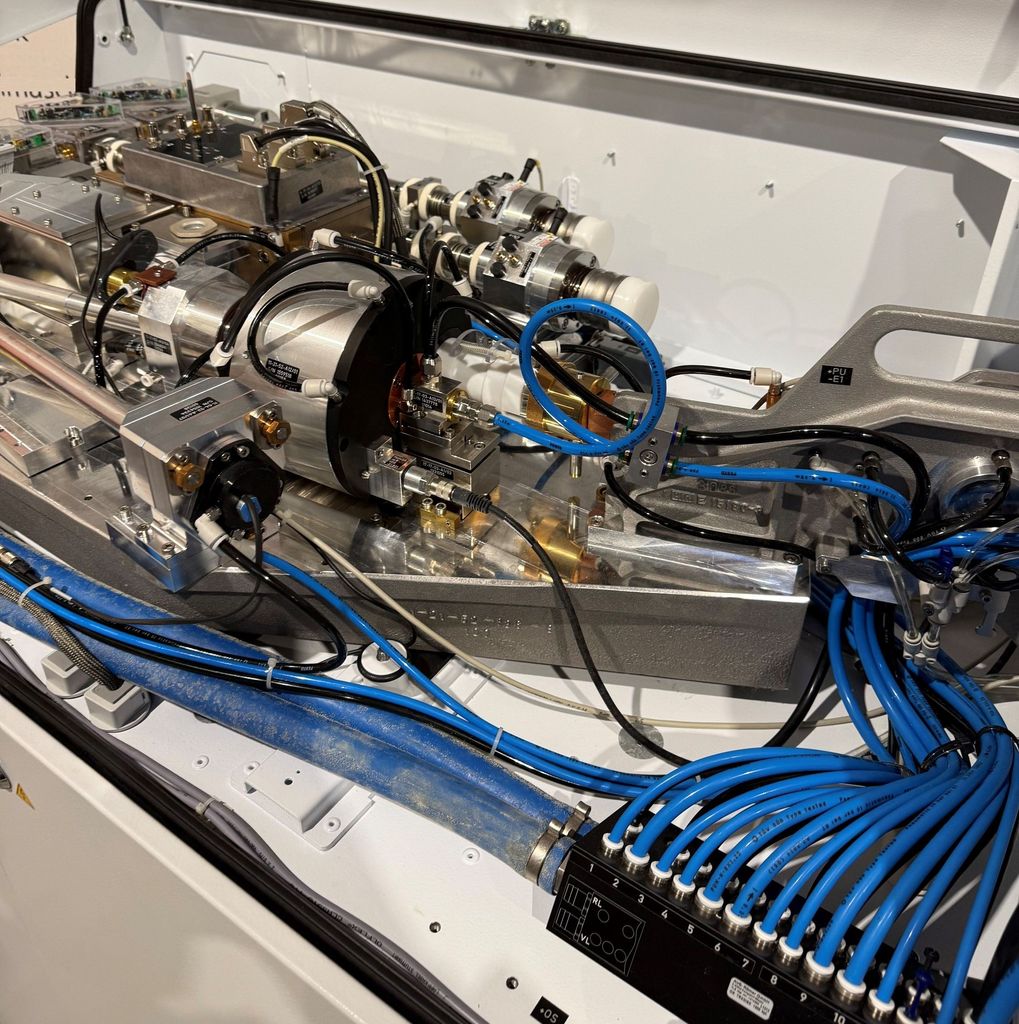

Trumpf TruMicro 6 kW Laser Source

High-performance disk laser with nanosecond pulses.

The high-performance nanosecond lasers of the TruMicro Series 7000 are based on disk laser technology and combine
short pulses and high pulse energies even at high frequencies.
This allows you to remove layers and contamination at maximum speed and reduce your cycle times.
Optimize your processes further by varying the repetition rate - with constant pulse duration

The short-pulse lasers of the TruMicro Series 7000 are the ideal tool for the efficient and economical cleaning of tire molds.

Large-area applications with high average power
Ablation, cleaning, tempering:
The lasers of the TruMicro Series 7000 show their full performance in large-area applications.
With pulse energies of up to 100 mJ, they achieve enormous decoating rates.
A scanner ensures excellent utilization of the power.
Flexible laser light cables transport the light to where it is needed and facilitate the integration of the laser.

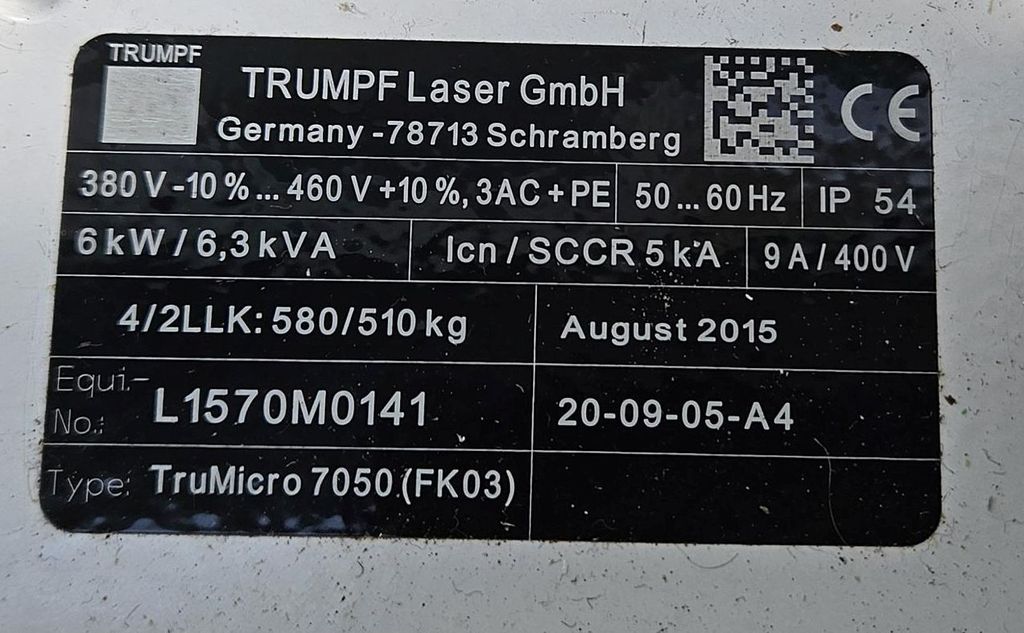

Manufacturer: Trumpf

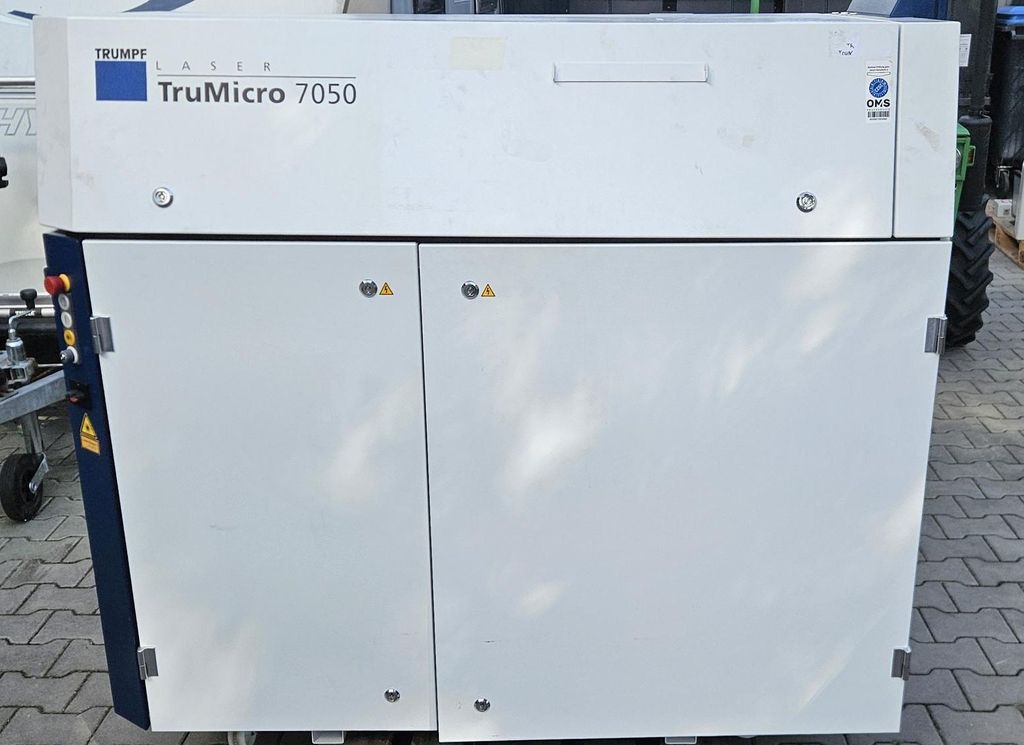

Type: TruMicro 7050 Laser Source
Power: 6 kW

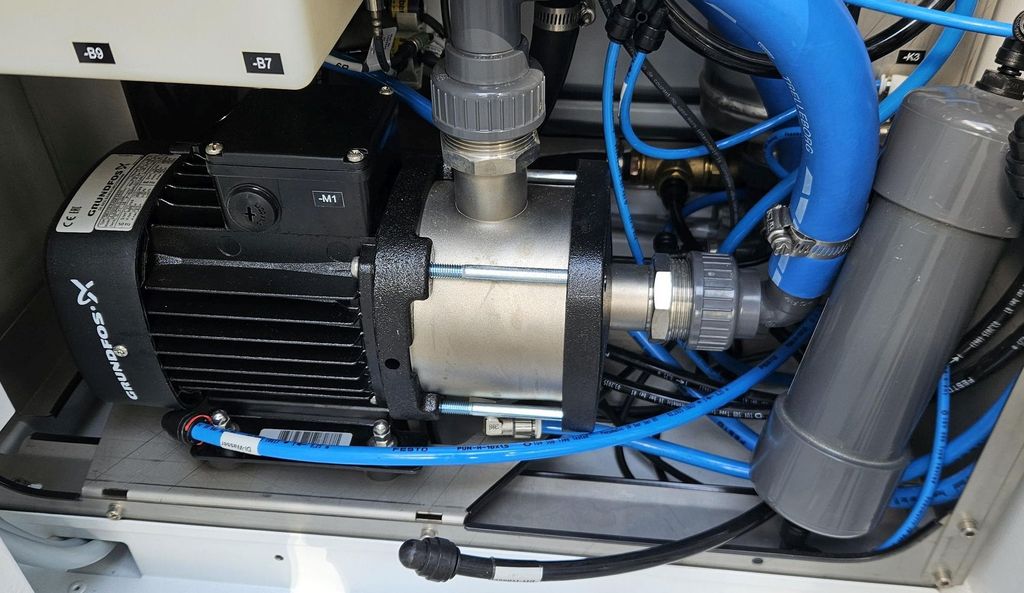

Cooling: Water

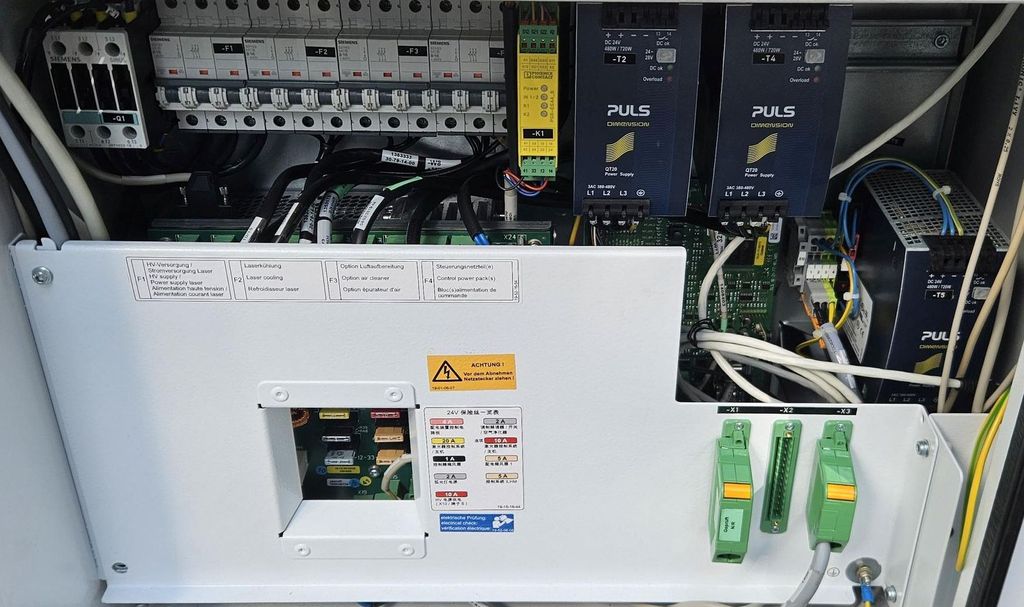

System input power 380–460 VAC 3 phases
Laser power: 750 W
Wavelength 1030 nm
Pulse energy: 80 mJ
Pulse duration: 30 ns
Beam quality: 20 mm
Repetition rate: 5 to 100 kHz
Fiber diameter: 400 µm
IP: 54

Dimensions:(WxHxD) 1460 mm x 1350 mm x 730 mm

Find more items - new and used - in our shop!
International shipping costs on request!

Manufacturer: Trumpf
Type: TruMicro 7050 Laser Source
Power: 6 kW
Cooling: Water
System input power 380–460 VAC 3 phases
Laser power: 750 W
Wavelength 1030 nm
Pulse energy: 80 mJ
Pulse duration: 30 ns
Beam quality: 20 mm
Repetition rate: 5 to 100 kHz
Fiber diameter: 400 µm
IP: 54

Dimensions:(WxHxD) 1460 mm x 1350 mm x 730 mm
