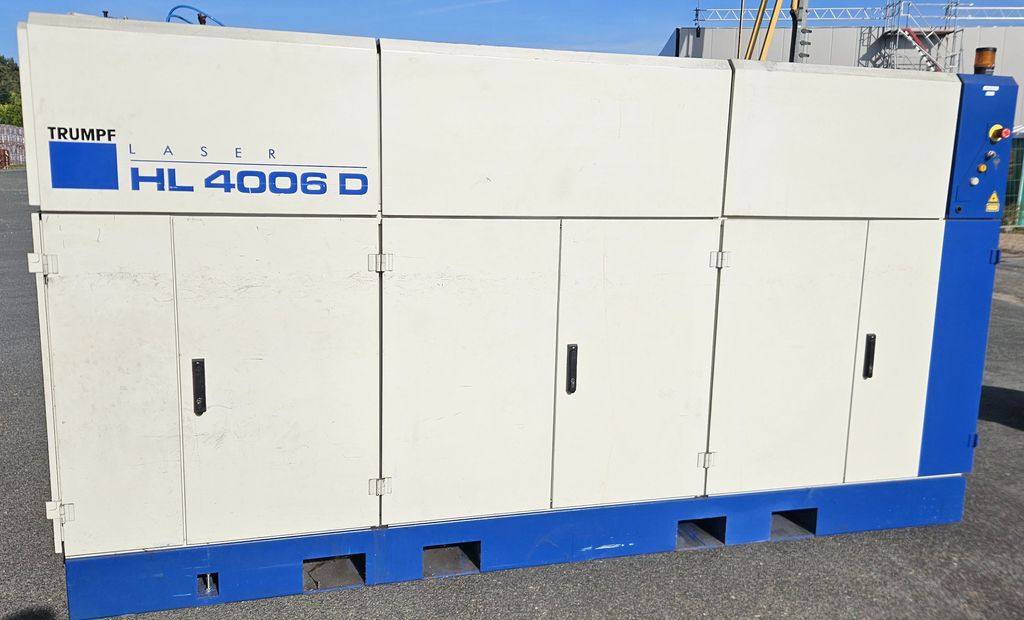

Trumpf Haas HL 4006D YAG Solid-State Laser

The Trumpf Haas HL 4006D is an Nd:YAG solid-state laser with 4000W of power, designed for industrial applications such as welding highly reflective materials, especially for use with robots and a range of up to 100 meters via flexible fiber optics.

Applications
Welding: The main application is welding metal parts, especially highly reflective materials such as aluminum and copper, where other lasers are difficult to use.
Automated manufacturing: The laser is designed for integration into automated production lines with industrial robots.
Precision processing: The high power and precise beam quality enable precise work in industrial processing.

Technical Data

Manufacturer: Trumpf Haas
Model: HL 4006D
Rated laser power: 4000 W
Beam quality: 25 mm.mrad
Laser wavelength: 1064 nm
Rated voltage: 400 V
Rated power:132 kW
Rated input: 140 KVA
Year of manufacture: Oct 2006
Weight: 1500 kg

Operating hours approx. 20000

Dimensions W x H x D 3200 x 1700 x 1250 mm

Laser optics incl. ILV scanner, pyrometer and various spare parts
Computer with WinLas software for parameter control

The matching chiller and robot can be found in our shop
Rehsler TW HL4006D chiller
Kuka KR 30/2 6-axis welding robot
