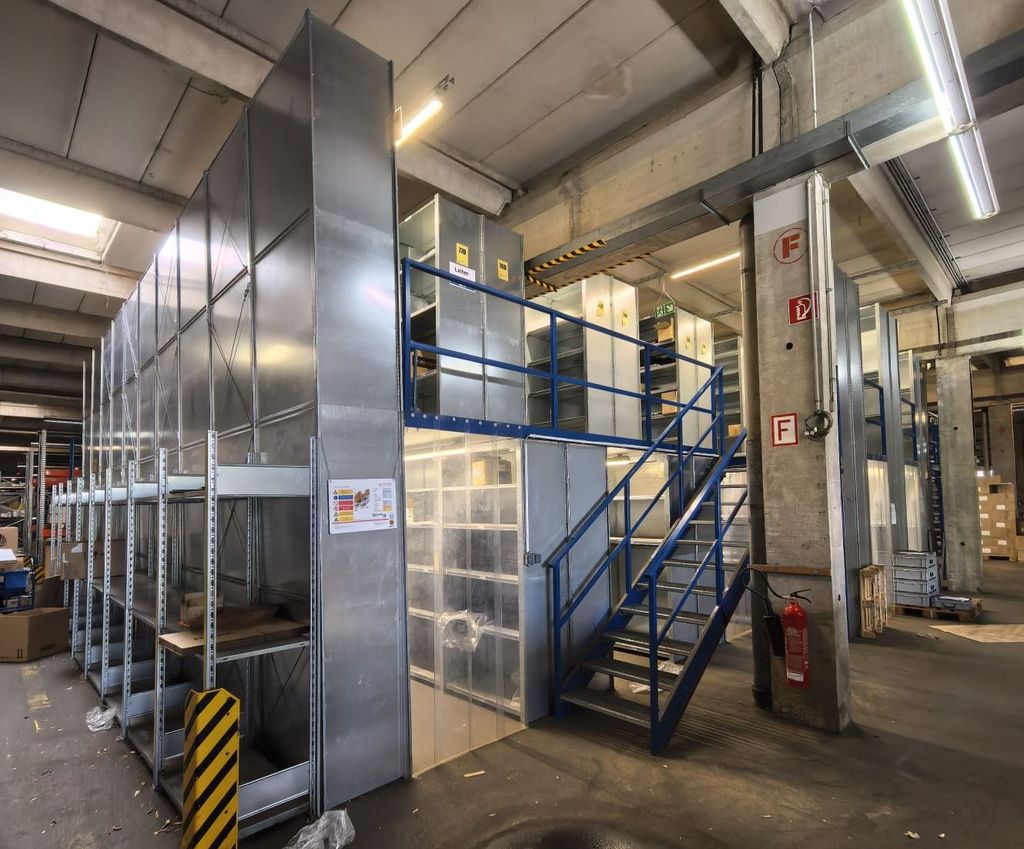

Schulte 2-storey shelving system 440 m² mezzanine floor 2 staircases

komplett-konzept.leasingo.de

More items - new and used - can be found in our shop!
International shipping costs on request!

Manufacturer: Schulte Lagertechnik
Shelving system: Plug-in system
Shelf type: 2-storey shelving system
No. of mezzanine levels: 1
Base area: 13.18 m x 16.7 m
Square metres: per floor 220.11 m²
Height 1st floor: 2180 mm
Clearance height: 2040 mm
Height 2nd floor: 2250 mm
Clearance height: 1950 mm

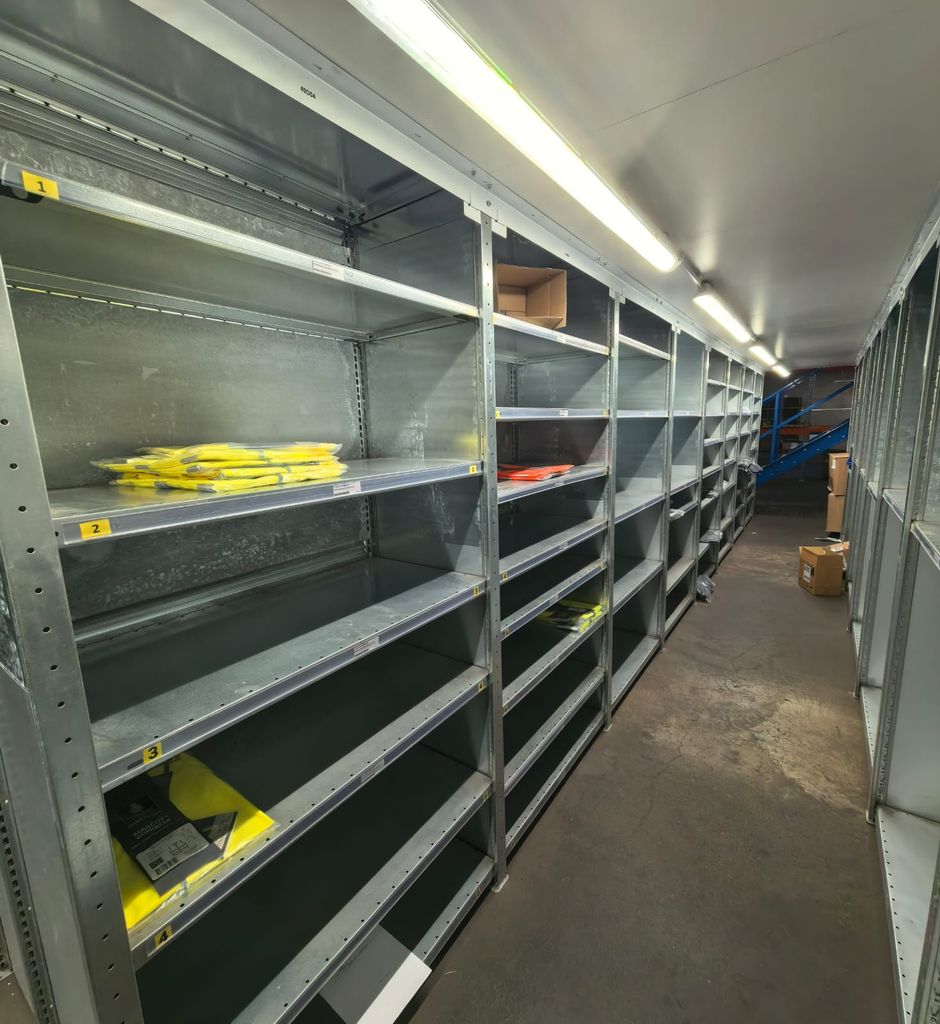

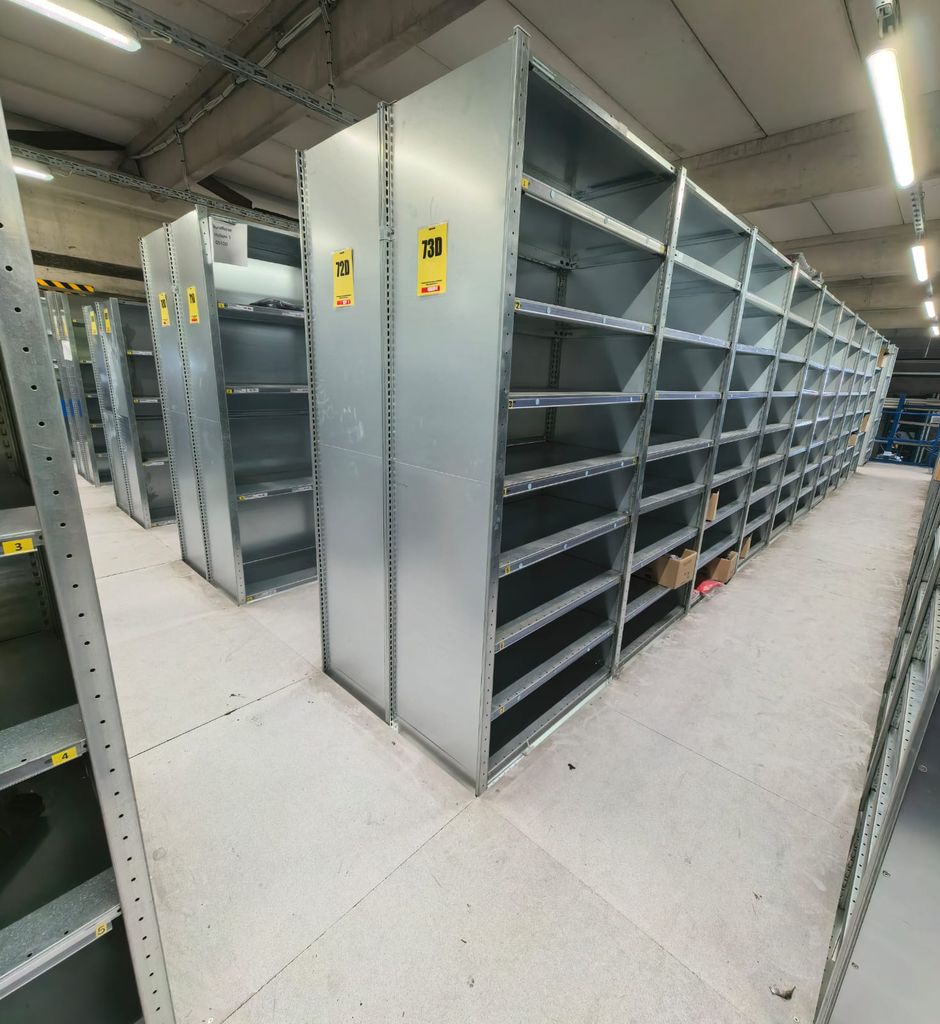

MULTIplus shelving
25 mm grid perforation
Shelf height: 2200 / 2300 mm
Bay width: 1000 mm
Bay depth: 400 / 500 mm
Shelf load: 150 / 250 kg
Shelf board: 1000 x 400 mm
Colour: galvanised
2 staircase accesses
Sturdy safety railing
Powder-coated
With handrail and knee rail
Steps made of grating

max. mezzanine load:
Shelf aisle: 250 kg/sqm
Main aisle: 250 kg/sqm
Transfer point: 250 kg/sqm
Shelf load: 150 kg / 250 kg
Bay load: 2500 kg
max. buckling length: 600 mm
