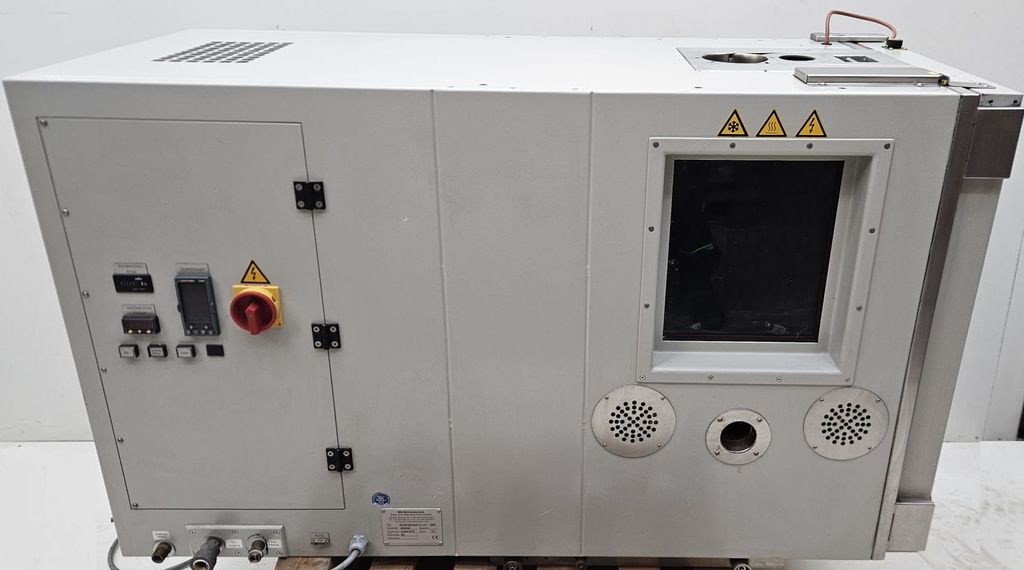

Zwick / Roell Temperature Chamber for AllroundLine

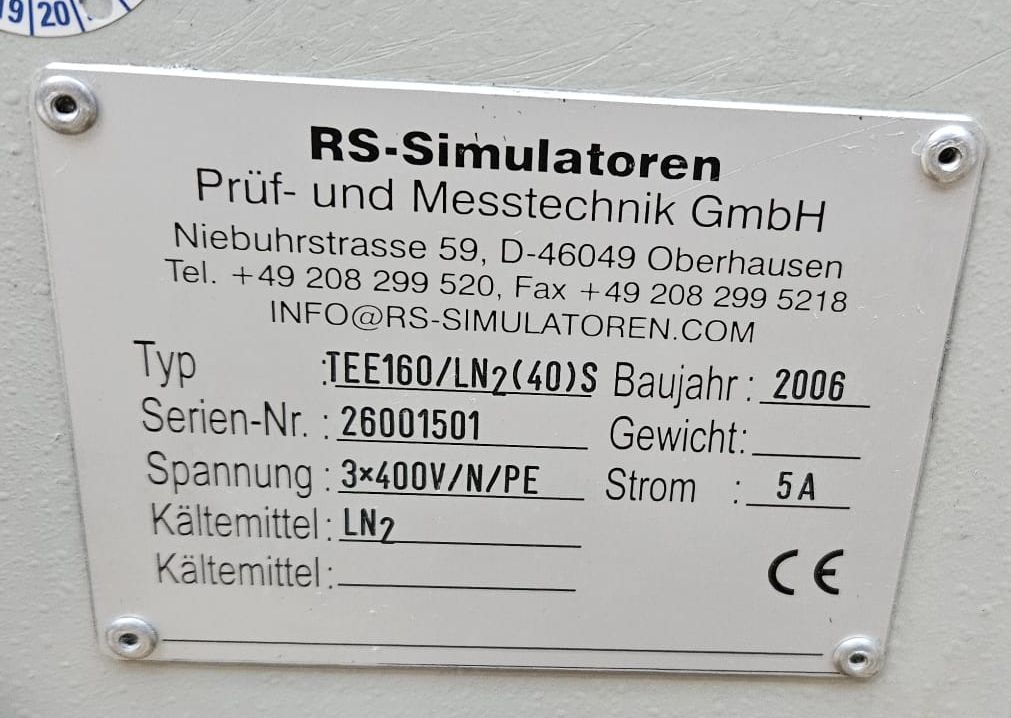

Type: TEE160/LN2 40S

The RS-Simulatoren model TEE160/LN2 40S is a specialized temperature chamber developed primarily for material testing in combination with ZwickRoell testing machines (in particular the AllroundLine)

Flexible in application
The innovative temperature chamber from ZwickRoell guarantees a flexible testing system tailored to customer needs without compromise.
This ensures reliable test results in the future as well.

The safety door function guarantees operator protection in accordance with European safety requirements.

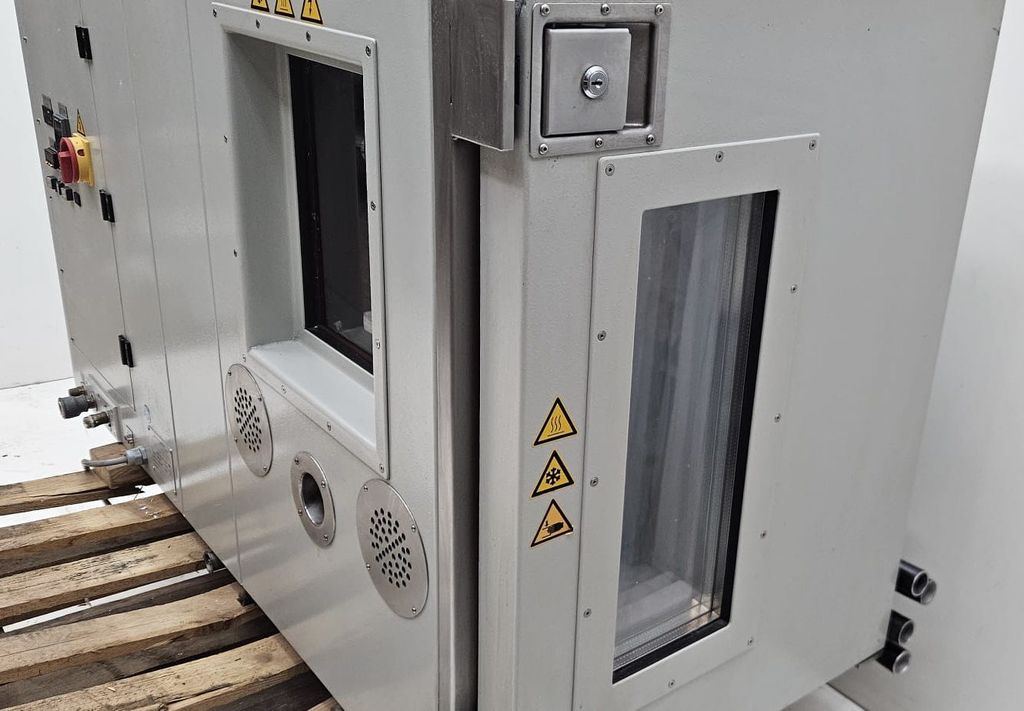

The chamber door serves as a safety door with locking mechanism.

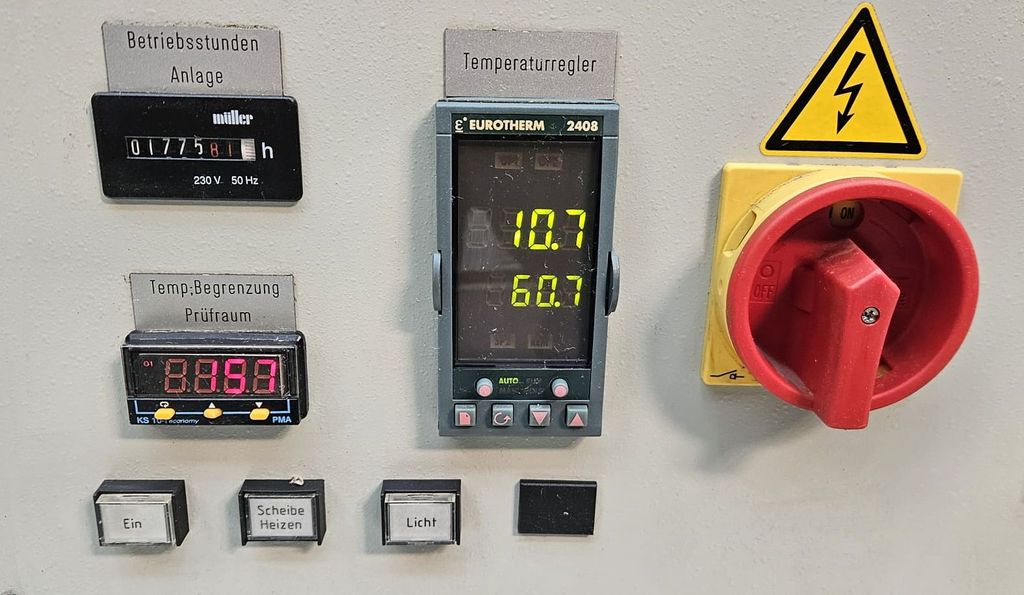

Precise temperature control
The temperature chamber creates extremely homogeneous and precise conditions for the test specimens throughout the entire chamber volume.
The test results are therefore accurate and reproducible.
Key specifications

Temperature range: -40 °C to +160 °C.

Cooling system: Liquid nitrogen (LN2) for high cooling rates.

Temperature chamber for the AllroundLine

Application: Specifically designed for integration into material testing machines to perform mechanical tests (e.g. tensile or compression tests) under controlled environmental conditions.

All panels in the door area (inside and outside) are made of stainless steel.

Solid base frame, dismountable

Dimensions:
W x D x H = 1400 x 600 x 800 mm

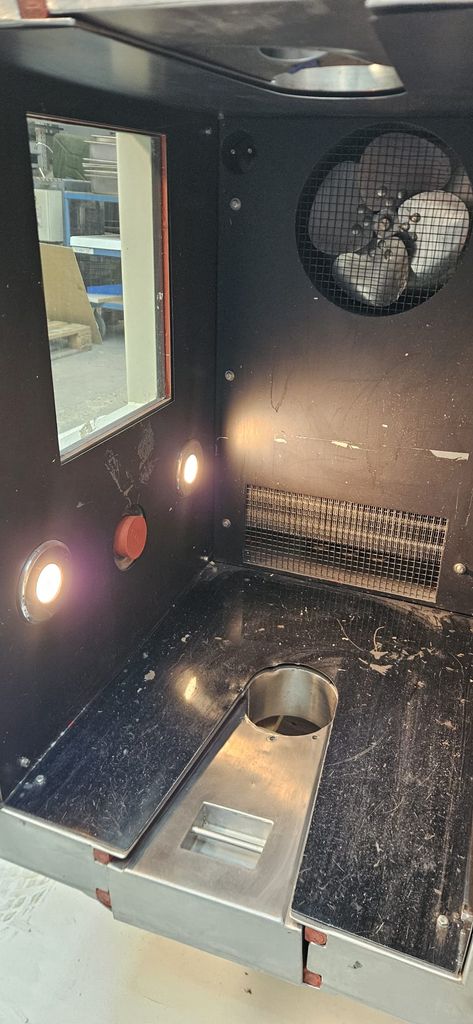

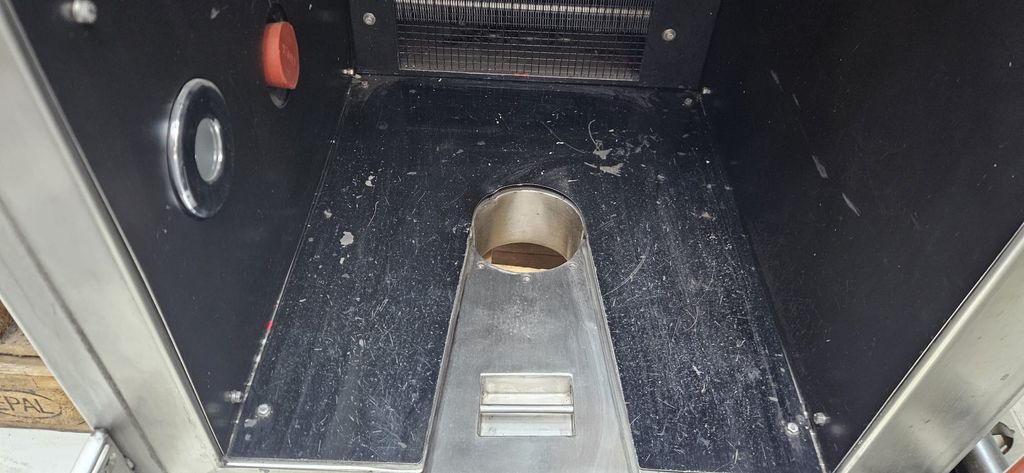

Chamber:
W x D x H = 440 x 530 x 650 mm

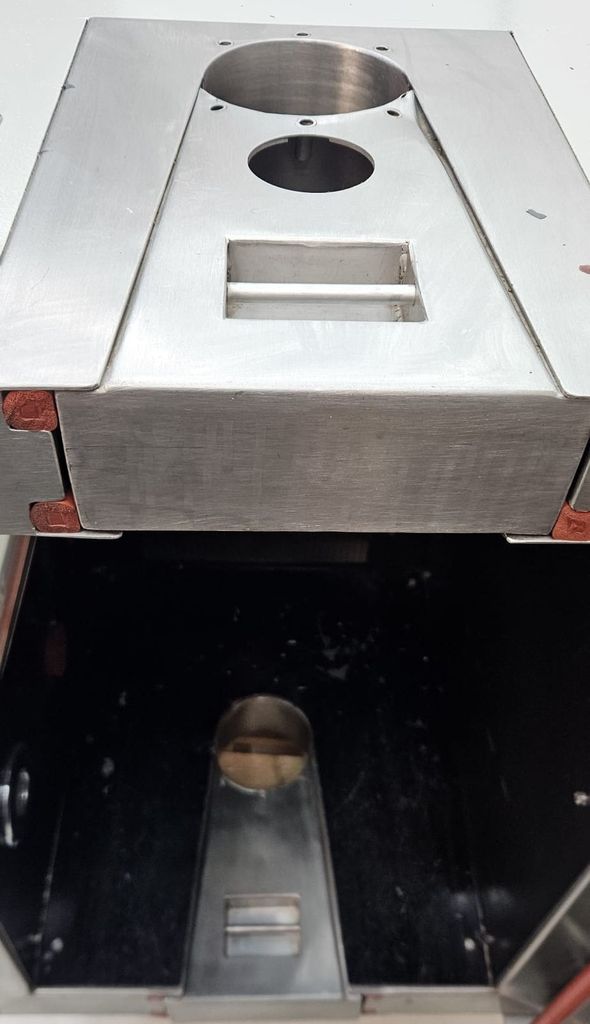

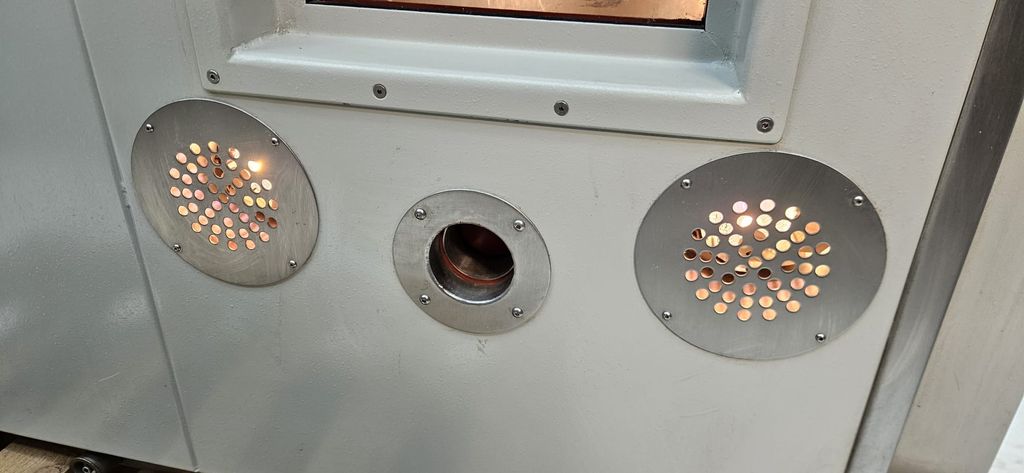

Test opening: 110 mm

Voltage: 400/230 16A 3N〜50/60Hz
Cooling by means of LN2 (liquid nitrogen)
