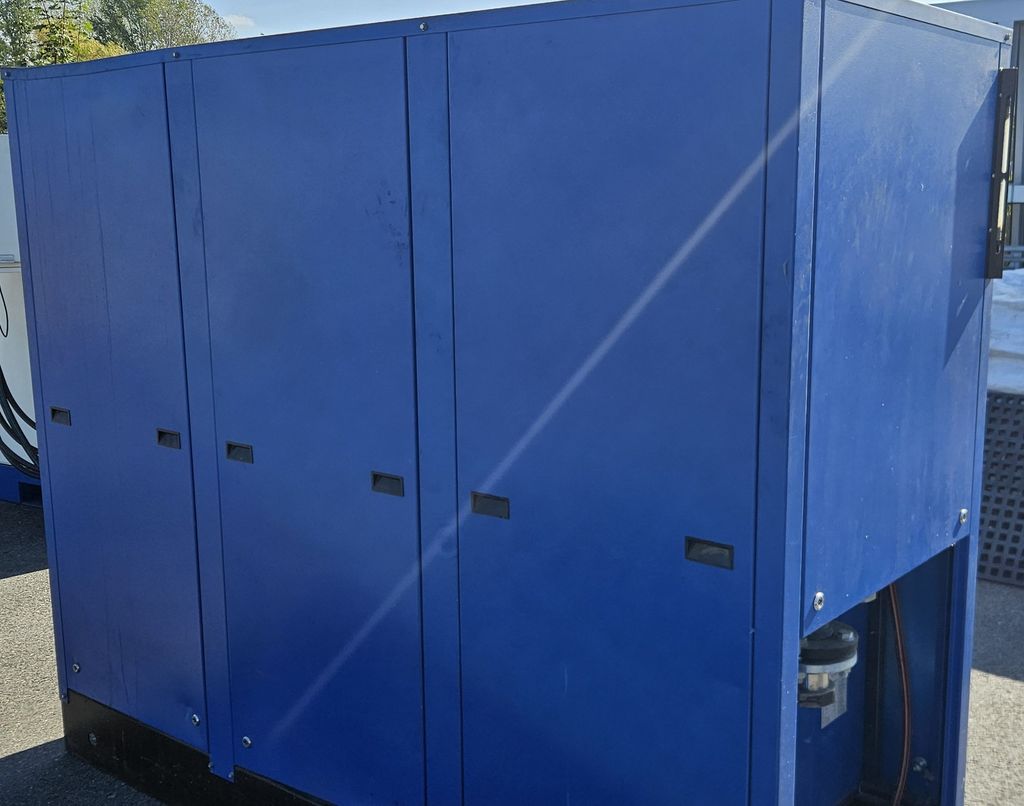

Rehsler TW HL4006D Industrial Chiller
The Rehsler TW HL4006D is an industrial chiller, specially developed for cooling the high-performance Trumpf Haas HL 4006D laser.
The system is used to dissipate the waste heat generated in the laser process and thus ensure a constant operating performance.
The device is primarily used in automated production lines, often in conjunction with industrial robots, where the associated laser is used for welding highly reflective materials such as aluminum or copper.
Technical data at a glance
The device is characterized by the following performance parameters:
- Cooling capacity/rated power: 11 kW.
- Electrical connection: 400 V voltage with a current consumption of 18 A.
- Operating pressure: Permissible pressure up to 10 bar.
- Protection class: IP54 (protected against dust and splash water).
- Temperature range: Suitable for ambient temperatures of at least 5 °C to a maximum of 43 °C
komplett-konzept.leasingo.de
You can find more articles - new and used - in our shop!
International shipping costs on request!
Technische Daten
Electrical & Performance Data
- Cooling capacity (rated power): 11 kW
- Rated voltage: 400 V
- Current consumption: 18 A
