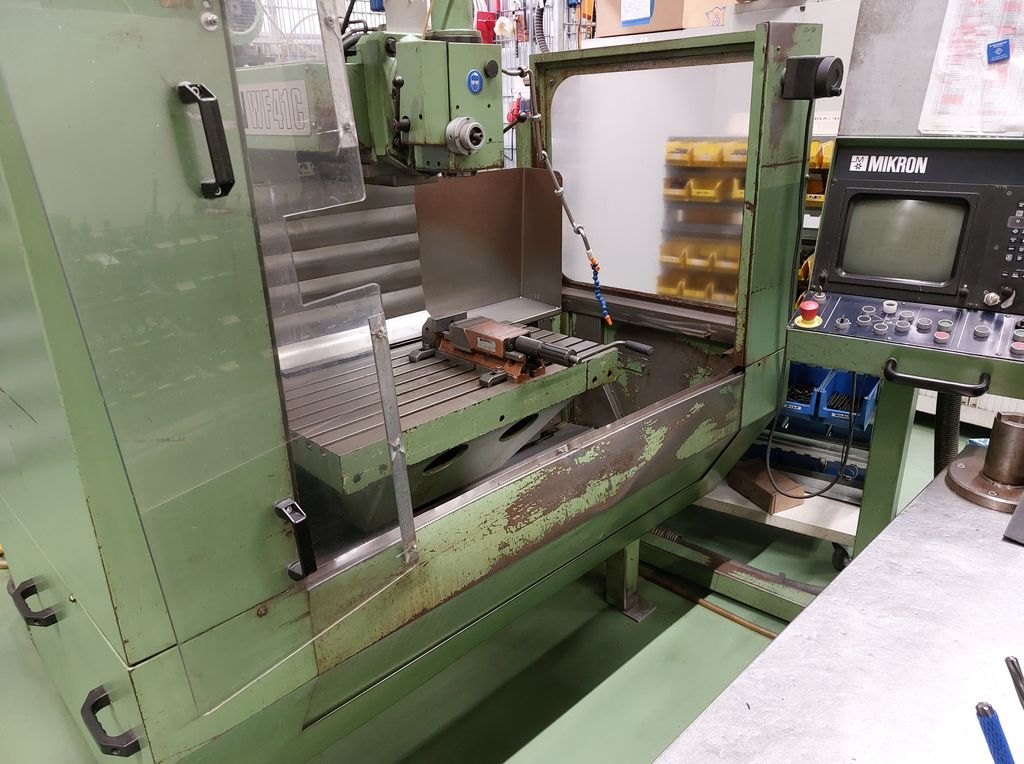

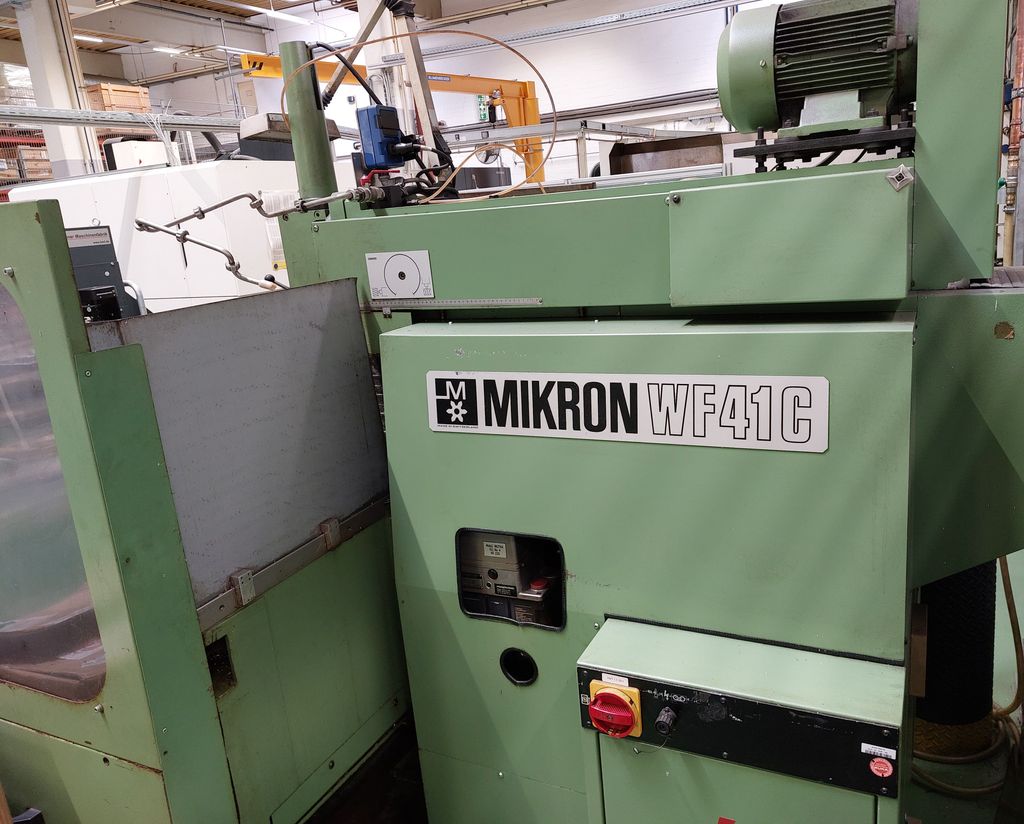

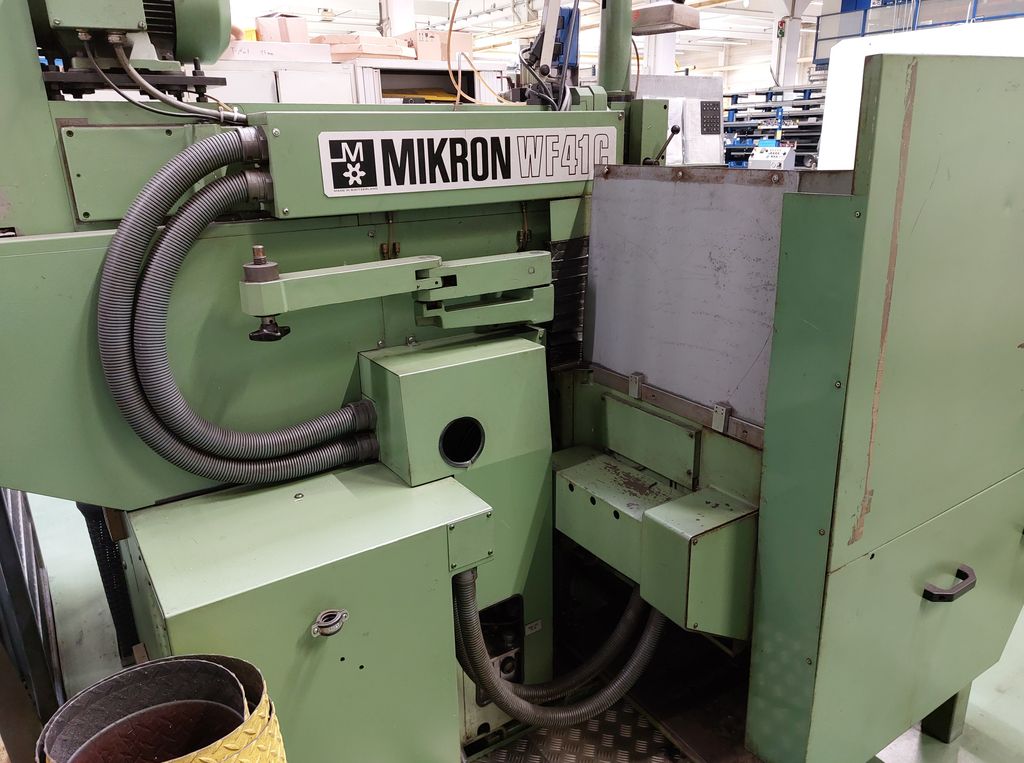

Mikron WF 41C CNC Universal Milling and Drilling Machine

Professional, extremely robust CNC universal milling and drilling machine MIKRON WF 41C

Due to its sturdy construction, the machine is ideally suited for workshops, prototype construction, maintenance or demanding tool making.

The machine is equipped with the proven HEIDENHAIN TNC 155 path control

Thanks to the plain-text dialog guidance, it is extremely easy to program directly on the machine, masters graphic simulations and allows simple loading of external CNC programs (ideal for CAD/CAM use) via the serial interface.

Technical data at a glance

CNC control
Model: HEIDENHAIN TNC 155
Operating modes: Manual (like digital display), Positioning with Manual Input, Single Block, Program Run, Program Test (Graphic Simulation)
Interface: V.24 / RS-232-C for data transfer

Feed drives & Travels
X-axis travel (table longitudinal, automatic): 630 mm
Y-axis travel (spindle slide cross, automatic): 500 mm
Z-axis travel (table vertical, automatic): 460 mm (p. 1)
Feed rate: infinitely variable from 1 - 3000 mm/min in all 3 axes
Rapid traverse: X and Y axis: 6000 mm/min | Z axis: 4000 mm/min
Max. vertical installation height: 559 mm (between vertical milling head and angle table)

Milling spindle drive
Spindle speeds: 21 gear steps
Speed range: 31.5 - 3150 rpm
Spindle motor power: 6.0 / 8.0 kW
Tool holder: ISO 40 / M 16 with draw-in groove (SK 40 DIN 2080)
Quill travel (vertical): 90 mm

Table geometry & workpiece capacity
Angle table clamping surface: 500 x 1000 mm
T-slots: 7 pieces (spacing: 63 mm, width: 14-H7 mm)
Vertical clamping surface: 397 x 550 mm (with 4 x 4 threaded holes M16, spacing 90 mm)
Max. recommended workpiece weight: 500 kg

Electrical & Cooling

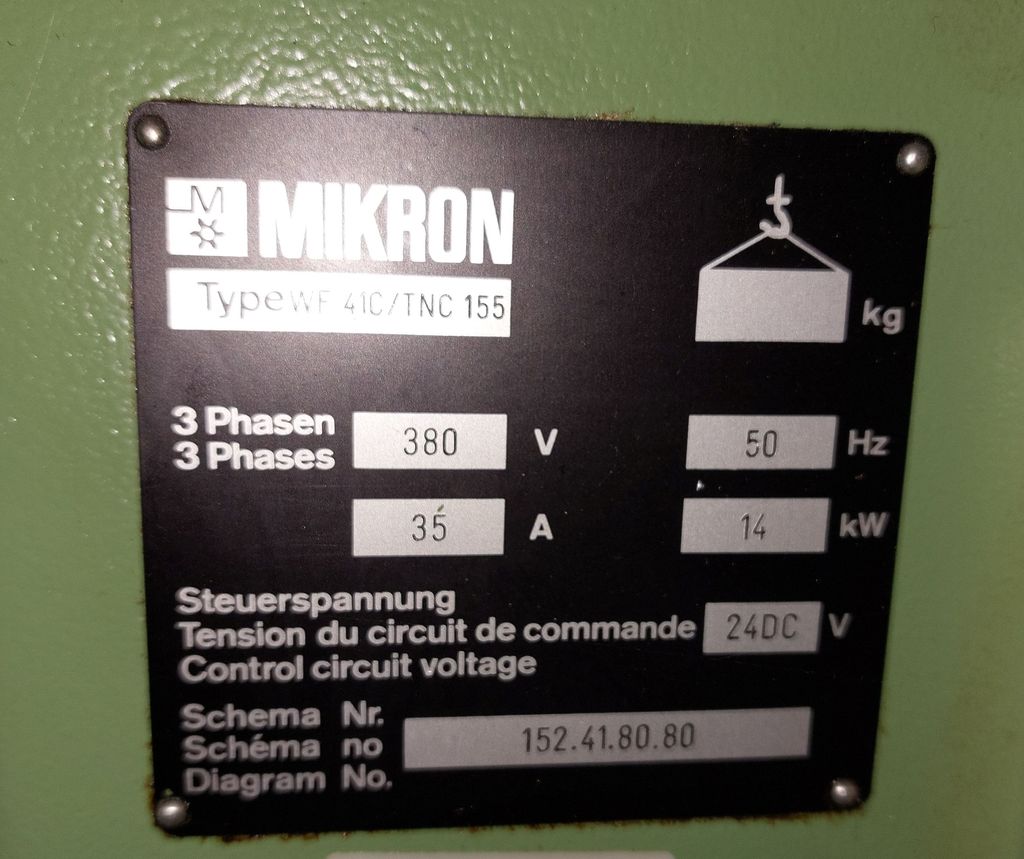

Electrical connected load: 13.5 kW
Coolant tank volume: approx. 100 liters

Dimensions & Weights
Pure machine dimensions: 1745 mm (L) x 1501 mm (W) x 2124 mm (H)
Max. space requirement in operation (incl. control arm): 2930 mm (L) x 2115 mm (W) x 2125 mm (H)
Machine weight (net): 3100 kg (incl. vertical milling head and angle table)

Product video

"Everything from a single source: We will be happy to offer you a suitable bank financing for your project."
komplett-konzept.leasingo.de

You can find more items - new and used - in our shop!
International shipping costs on request!

Technical data at a glance

CNC control
Model: HEIDENHAIN TNC 155
Operating modes: Manual (like digital display), Positioning with manual input, Single block, Program run, Program test (graphic simulation)
Interface: V.24 / RS-232-C for data transfer

Feed drives & travel paths
Travel path X-axis (table longitudinal, automatic): 630 mm
Travel path Y-axis (spindle slide transverse, automatic): 500 mm
Travel path Z-axis (table vertical, automatic): 460 mm (p. 1)
Feed rate: infinitely variable from 1 - 3000 mm/min in all 3 axes
Rapid traverse: X and Y axis: 6000 mm/min | Z-axis: 4000 mm/min
Max. vertical installation height: 559 mm (between vertical milling head and angle table)

Milling spindle drive
Working spindle speeds: 21 gear steps
Speed range: 31.5 - 3150 rpm
Spindle motor power: 6.0 / 8.0 kW
Tool holder: ISO 40 / M 16 with draw-in groove (SK 40 DIN 2080)
Quill movement (vertical): 90 mm

Table geometry & workpiece capacity
Angle table clamping surface: 500 x 1000 mm
T-slots: 7 pieces (spacing: 63 mm, width: 14-H7 mm)
Clamping surface vertical: 397 x 550 mm (with 4 x 4 threaded holes M16, spacing 90 mm)
Max. recommended workpiece weight: 500 kg

Electrical & Cooling
Electrical connected load: 13.5 kW
Coolant tank volume: approx. 100 liters

Dimensions & Weights
Pure machine dimensions: 1745 mm (L) x 1501 mm (W) x 2124 mm (H)
Max. space requirement in operation (incl. control arm): 2930 mm (L) x 2115 mm (W) x 2125 mm (H)
Machine weight (net): 3100 kg (incl. vertical milling head and angle table)
