Mikron UM 710/900 Universal Milling Machine

High-precision universal tool milling machine from the Swiss quality manufacturer MIKRON, model UM 710/900.

The machine comes from a well-maintained use and impresses with the proverbial Mikron precision as well as the generous work area (up to 900 mm travel in X). It is ideally suited for tool making, prototype construction, training or demanding repair workshops.

Technical data at a glance (manufacturer's specifications):

Work area & axes:
Longitudinal travel (X-axis): 710 / 900 mm
Cross travel (Y-axis): 630 mm
Vertical travel (Z-axis): 500 mm

Work spindle:
Tool holder: SK 40 / DIN 69871
Gear stages: 4
Speed range: adjustable (vertical & horizontal)

Main drive & feed:
Spindle drive power: 11 kW (at 44% ED) / 7.5 kW (at 100% ED)
Feed rate (X, Y): 0 – 10,000 mm/min (programmable)
Feed rate (Z): 0 – 8,000 mm/min (programmable)
Rapid traverse (X, Y / Z): 10 m/min / 8 m/min

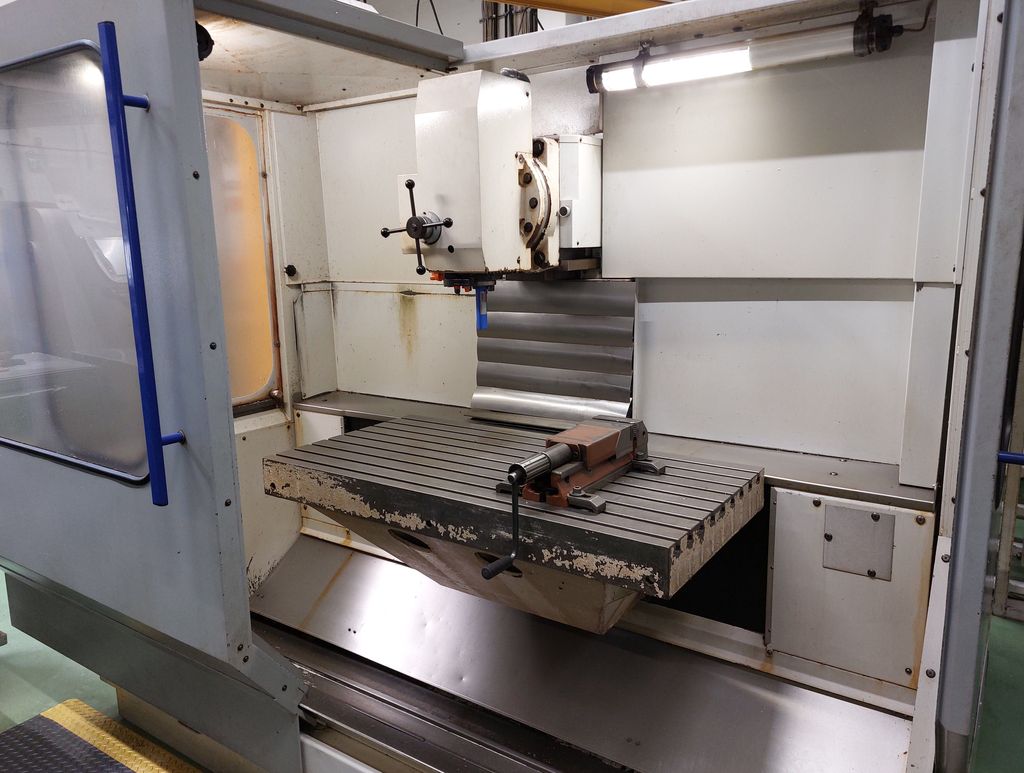

Clamping table (angle table):
Clamping surface: 600 x 1,200 mm
T-slots: 9 pieces (14-H7, spacing 63 mm)
Max. table load: 500 kg

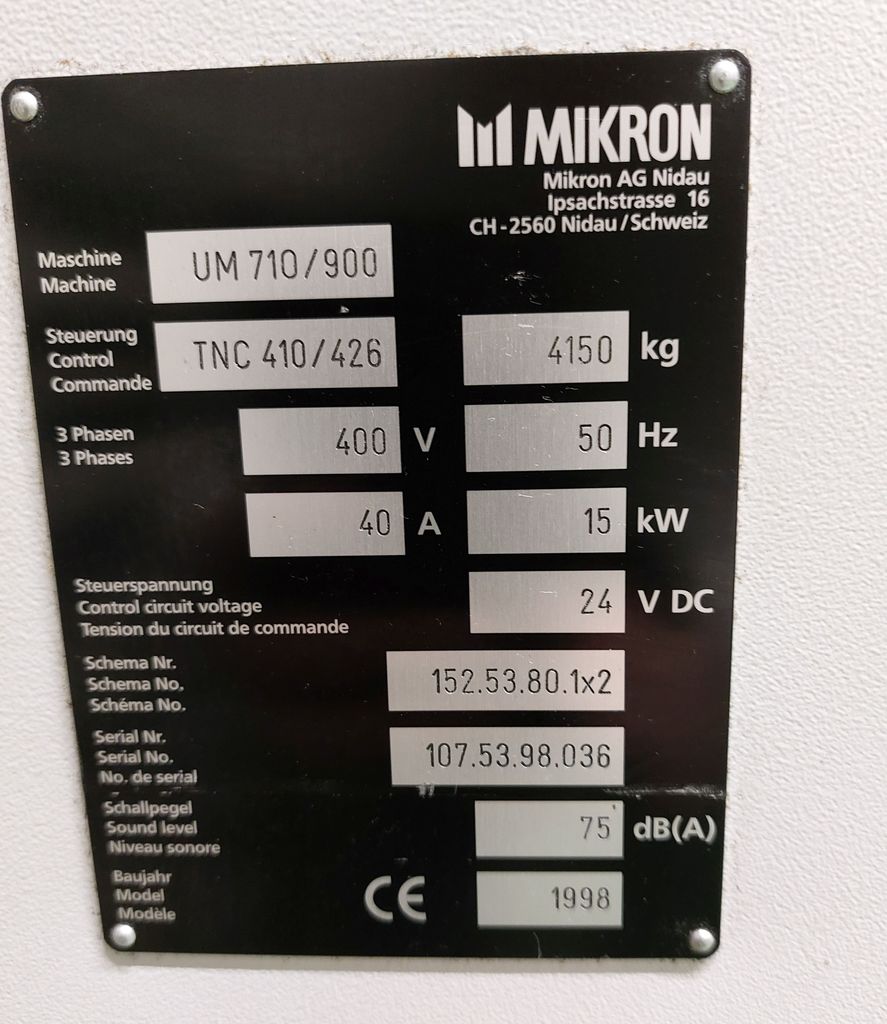

Electrical, dimensions & weights:
Connected load: Total installed rated power 21.5 kW
Operating voltage: 3 x 400 V - 50 Hz
Coolant system: 150 liter capacity

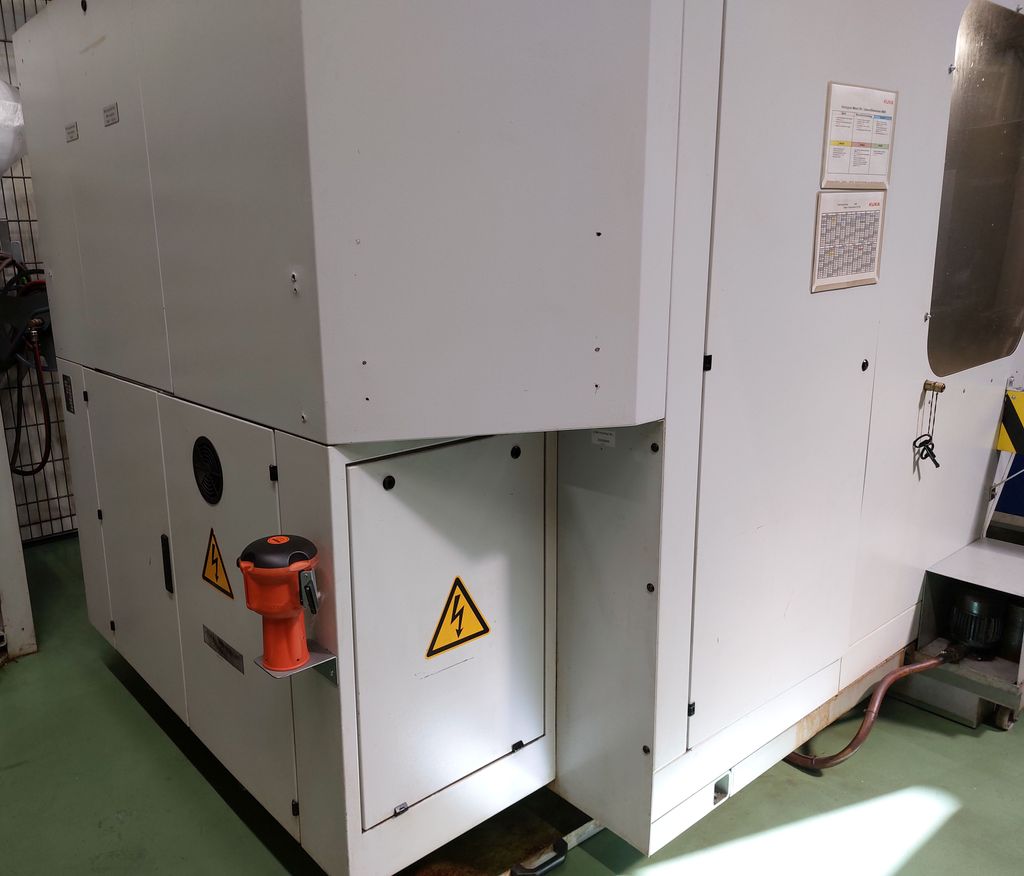

Machine weight: approx. 4,300 kg (incl. protective cabin)

Product video

"Everything from a single source: We will be happy to offer you a suitable bank financing for your project."
komplett-konzept.leasingo.de

You can find more articles - new and used - in our shop!
International shipping costs on request!

Technische Daten

Technical data at a glance (manufacturer's specifications):

Working range & axes:
Longitudinal travel (X-axis): 710 / 900 mm
Cross travel (Y-axis): 630 mm
Vertical travel (Z-axis): 500 mm
