Jungheinrich ERC 216z Electric High-Lift Truck

The efficient and versatile electric pallet stackers ERC impress with their particularly economical transport of goods over longer distances and their storage and retrieval on higher rack levels.
Equipped with a foldable standing platform, they are very flexibly deployable over medium distances. Thanks to increased ground clearance, uneven floors and ramps are no problem.
The powerful and particularly precise lift motor enables smooth and material-friendly lifting and lowering of loads at lift heights up to 6 metres.
In addition, both the four-wheel concept and optional assistance systems such as the overload warning system operationCONTROL or the lift height pre-selection positionCONTROL ensure greater safety and efficiency in everyday warehouse operations.

The Jungheinrich ERC 216z is a powerful electric high-lift truck that stands out for its versatility in warehouse operations. The distinctive "z" in the model designation stands for the additional chassis lift, which makes the device particularly suitable for uneven floors and ramps.

All advantages at a glance
Efficient storage and retrieval at lift heights up to 6 m.
Manoeuvrable and compact thanks to small dimensions.

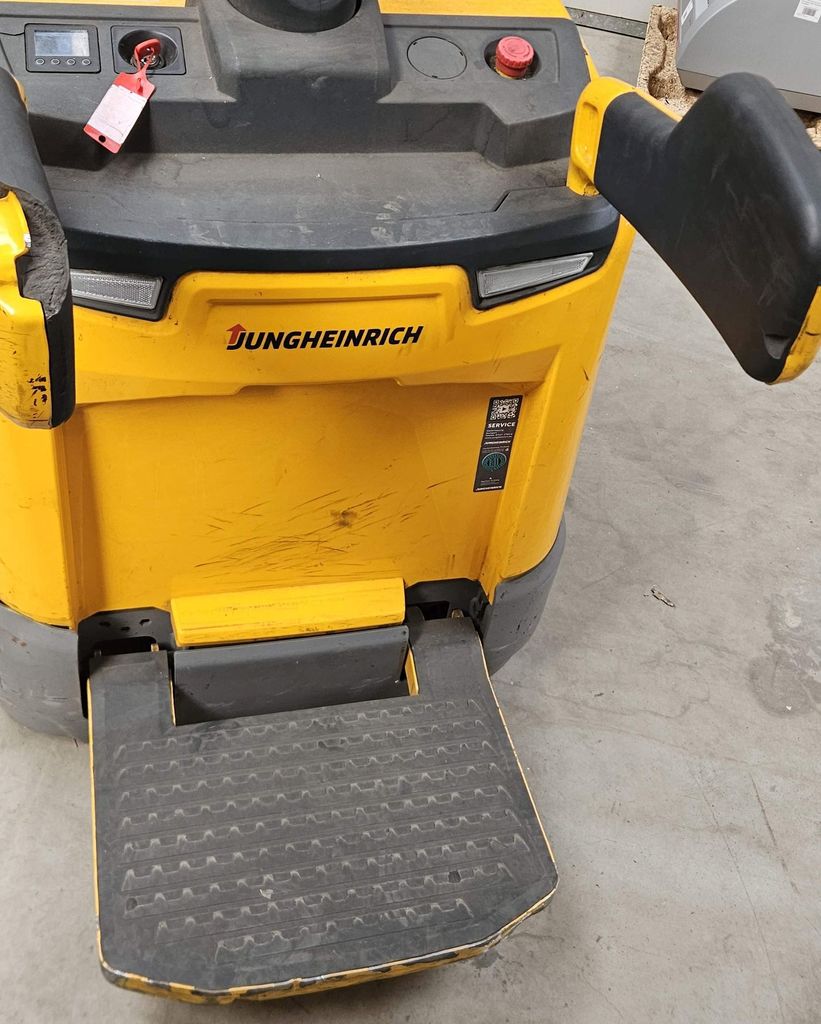

Ergonomic working thanks to foldable standing platform.
Efficient double-deck transport thanks to chassis lift.
Greater safety in the warehouse thanks to intelligent assistance systems.

Manufacturer: Jungheinrich
Type: ERC 216z
Option 115 525 DZ
Aisle width: 2323 mm
(Pallet 800x1200 lengthwise)
Lift speed without load: 0.3 m/s
Lateral battery removal for intensive multi-shift use
Height of mast retracted: 2500 mm

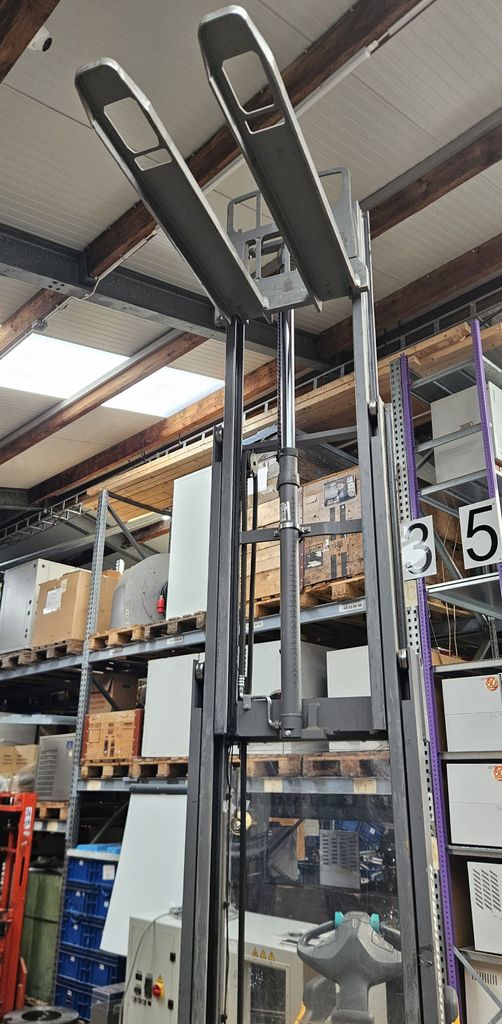

Height of mast extended: 5250 mm

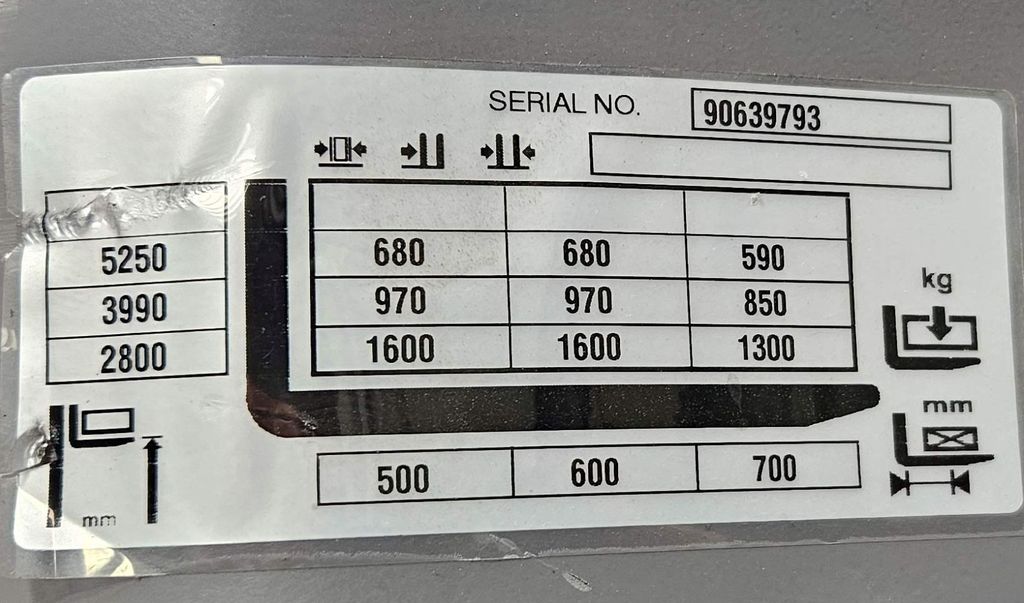

Rated capacity/load at chassis lift: 2000 kg
Rated capacity/load at mast lift: 1600 kg
Operating hours: 3938
Own weight (without battery): 1225 kg
Tyres: Polyurethane (PU)
Tyre size, front Ø: 230 x 77
Tyre size, rear Ø: 85 x 95 / 75
Fork dimensions: 56 x 185 x 1150 mm
Transport length: 2.067 m
Transport width: 0.8 m
Transport height: 1.95 m
Turning radius: 1.618 m
Battery: 24, 375 Ah
Battery weight: 280/442 kg
Serial No.: 90639793
Year of manufacture: 2021
