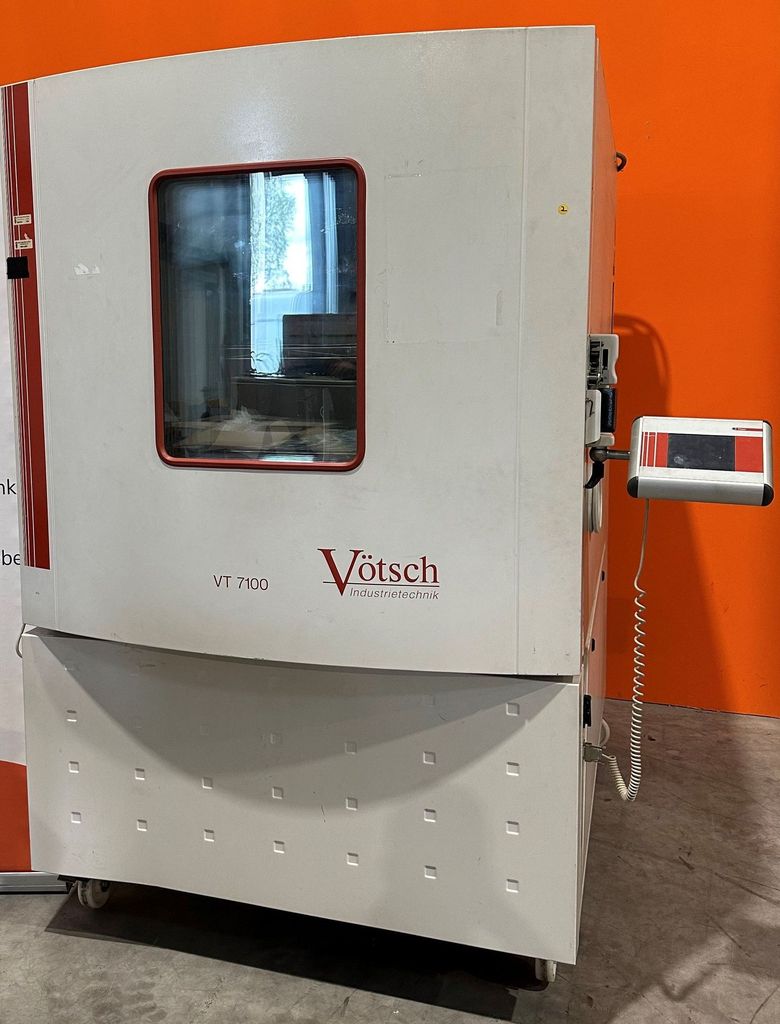

Vötsch VT 7100 Temperature Test Cabinet -70°C to +180°C Test Chamber 990 Liters

Vötsch VT 7100 Temperature Test Chamber -70°C to +180°C

Features
• Touchpanel
• Microprocessor-controlled monitoring and control MINCON/32
• Extremely low noise level
• Protection of test specimens through independent temperature measurement
• Maintenance-friendly design
• Door with window (incl. test chamber lighting)
• Flow-optimized air guidance

Manufacturer: Weiss Vötsch
Type: Temperature Test Chamber
Model: VT 7100
Control system: MINCON / 32
Control unit: Touchpanel
Test chamber volume: 990 l
Temperature range: -70 °C to +180 °C
Temporal temperature deviation: ±=0.1 to ±=0.5 K
Spatial temperature deviation: ±=0.1 to ±=0.5 K
Temperature change rate (cooling): 2.2 K/min
Temperature change rate (heating): 3 K/min

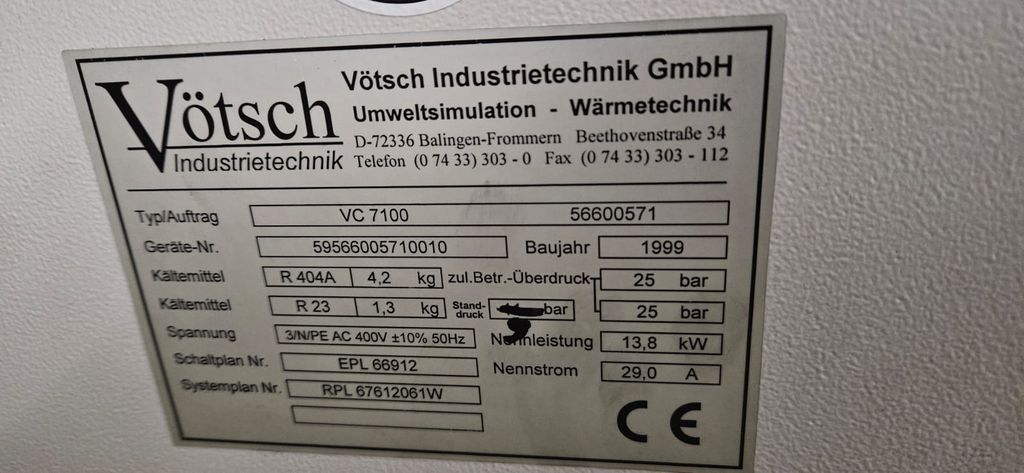

Electrical connection: 3/N/PE AC, 400 V ±10 %, 50 Hz
Rated power: 13.8 kW
Rated current: 29 A
Weight: 910 kg

Test room dimensions:
Width: 1100 mm
Depth: 950 mm
Height: 950 mm

Outer dimensions:
Width: 1390 mm
Depth: 1855 mm
Height: 1995 mm
