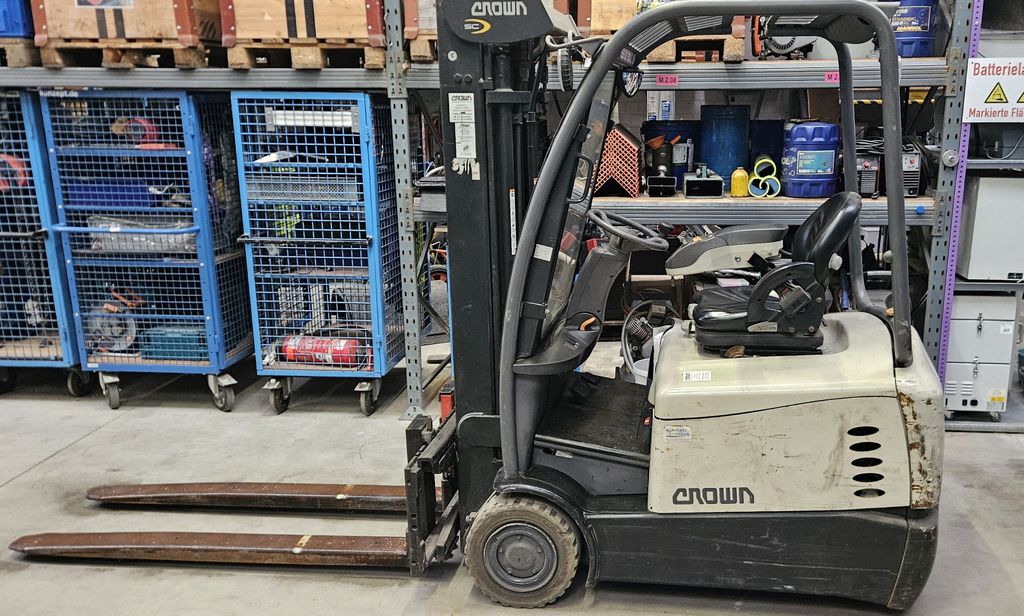

Crown SC 5360 1.8 Electric Forklift

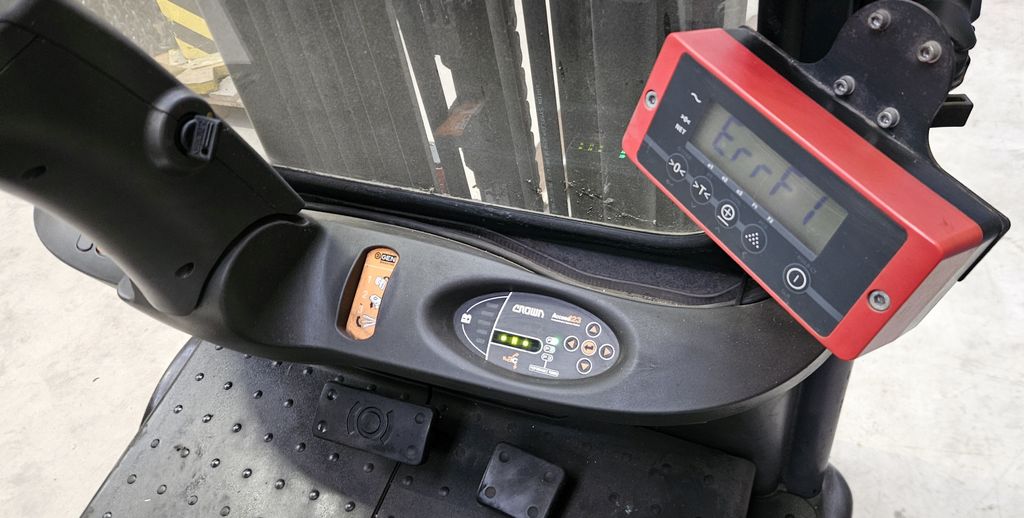

incl. iForks weighing forks for forklift new price 4300 ,- €

2025 received new steering pump motor. 0 operating hours

The forklifts of the SC series offer the necessary power, agility and reliability to meet the demands of the application as well as the operator.
The optimal balance of attention to detail, advanced technology, a solid foundation and ergonomics tailored to requirements makes the advantage of the SC series.

Whether indoors or outdoors, the SC series forklifts offer a working environment that makes life easier for the operator.

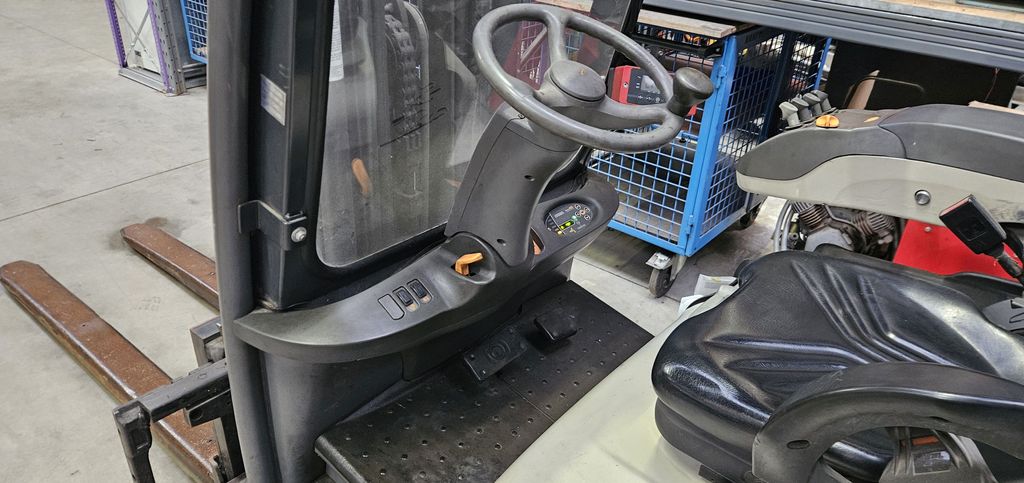

The position of the D4 armrest can be easily adjusted vertically and horizontally with one hand.

The SC forklifts offer excellent all-round visibility in all directions

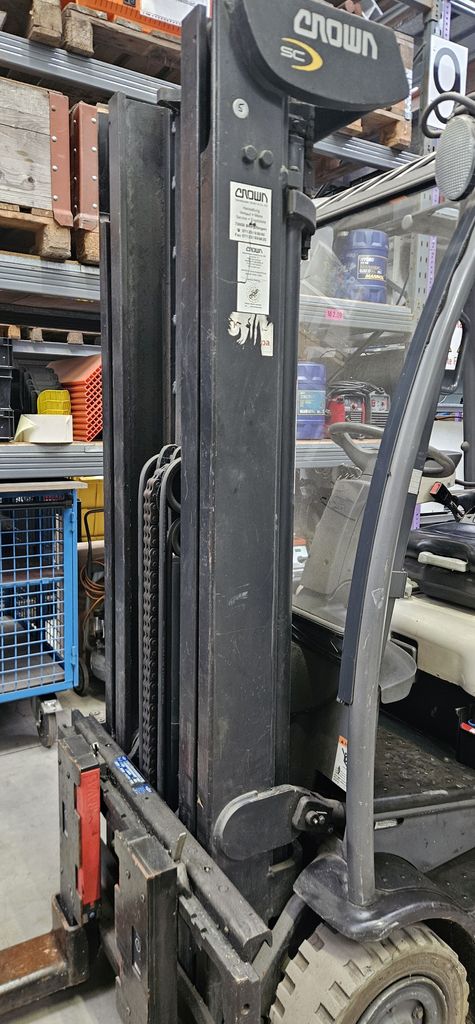

Robust I-beam masts that withstand longitudinal, lateral and torsional bending forces well.

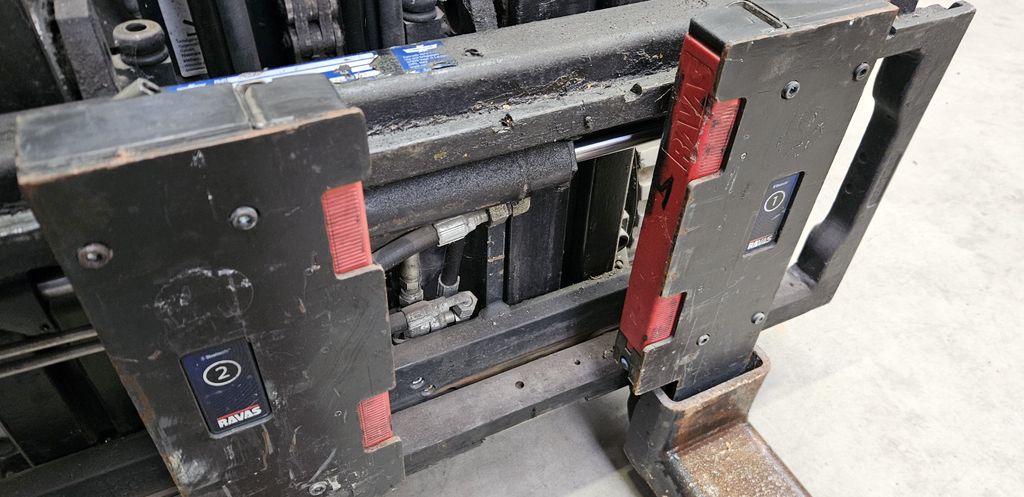

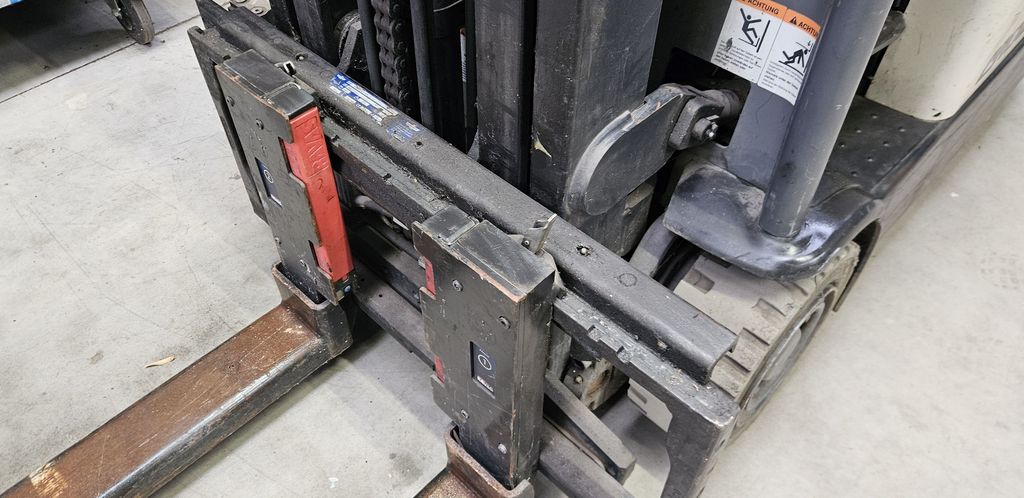

Integrated side shifter with fork carriage that protects the cylinders and helps prevent hydraulic oil from leaking.

Electric motors developed and produced by Crown with the industry's highest thermal protection ratings.

Symmetrical box frame construction to reduce frame distortion from collisions.

Robust steering axles with extremely load-bearing tapered roller bearings resist shocks from rough floors and loading ramps.

Easy maintenance

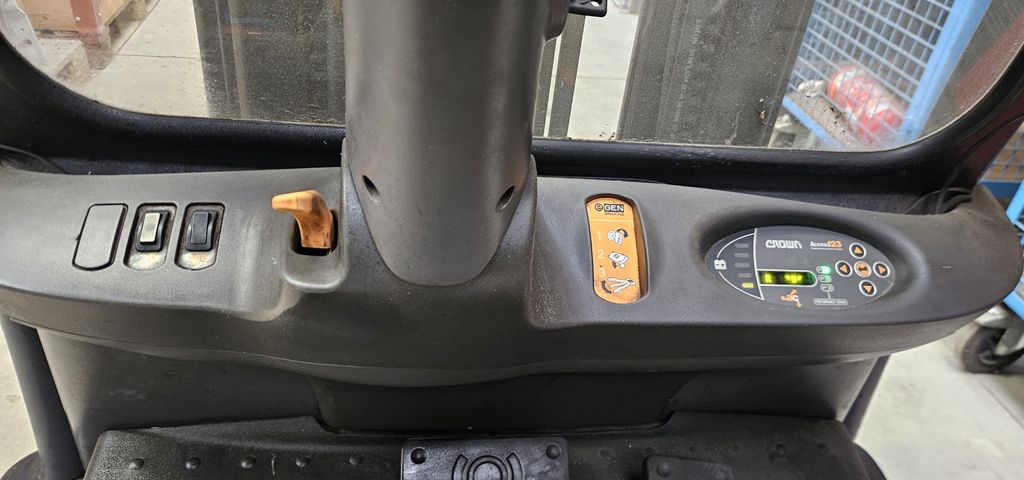

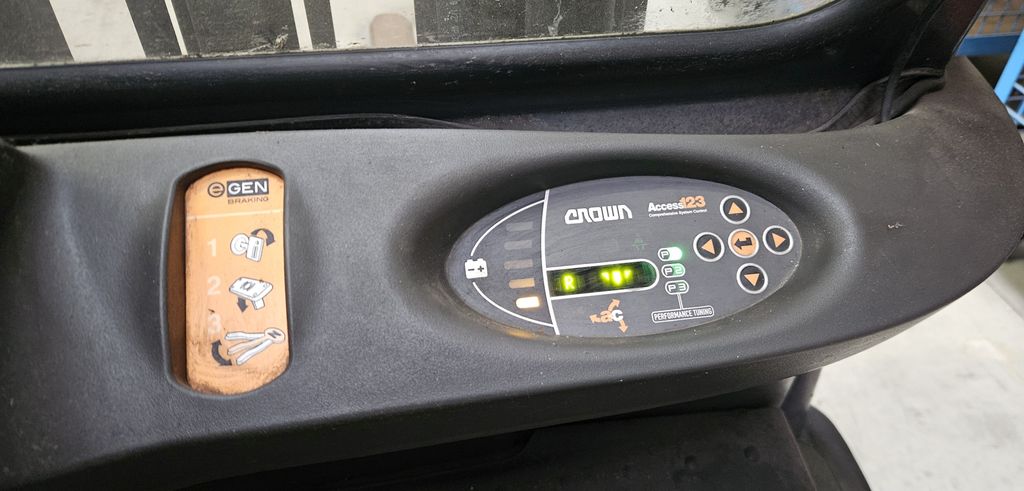

Crown Access 1 2 3 technology provides reliable on-board diagnostics and control of all truck systems in real time.
This greatly simplifies maintenance and also builds confidence in operators.

The e-GEN braking system replaces the conventional friction brake, providing performance, service and cost benefits. It enables the controlled use of regenerative engine braking depending on operating conditions and reduces pedal forces as well as long-term maintenance requirements.

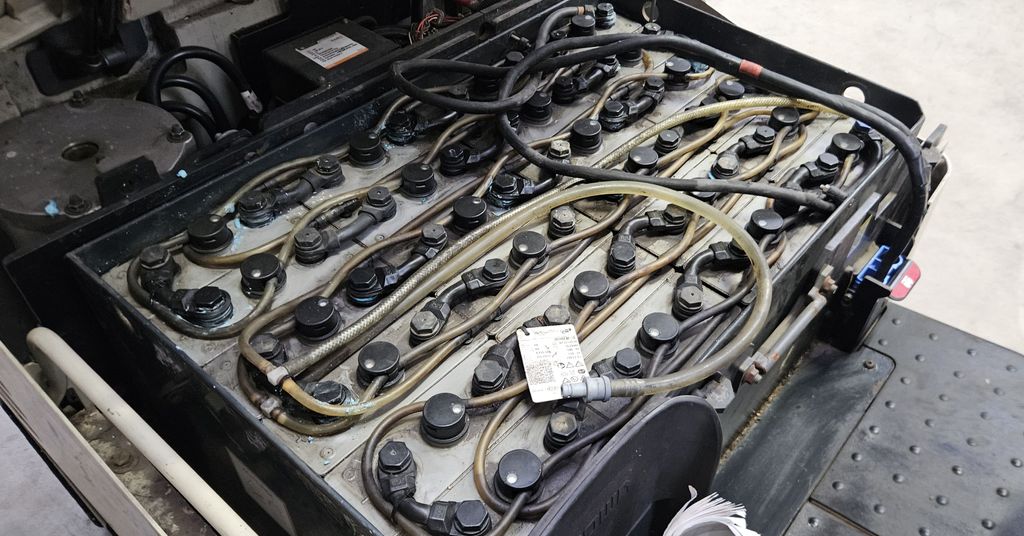

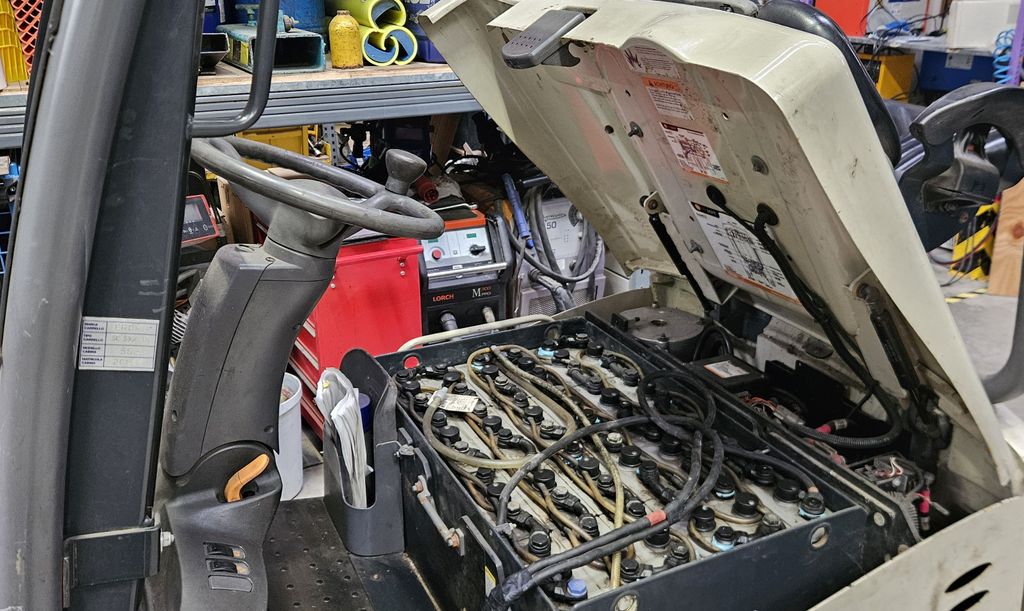

For easy and quick battery maintenance, the battery is accessible from above.

Technical Data

Manufacturer: Crown
Model: SC 5360 1.8
Electric 3-wheel forklift
Weight: 2.88 t
Standard tyres: 2x/2
Model series: SC 5300
Overall width: 1123 mm
Turning radius: 1.694 m

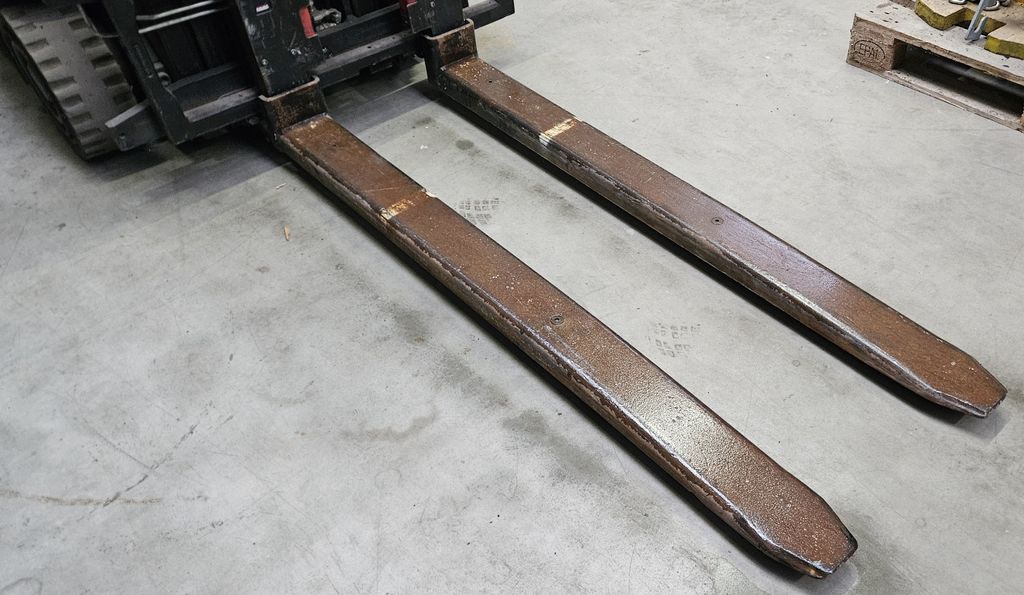

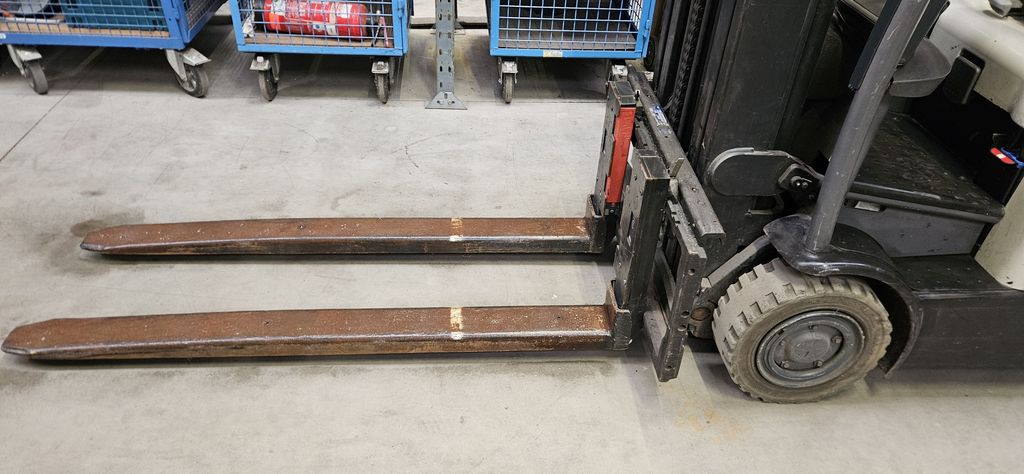

Fork length: 1600 mm iForks weighing forks
Drive system: D
Rated load limit at LSP: 1.8 t
Load centre: 500 mm
Lift height: 3.5 m
Voltage: 48 V
Drive motor(s): 9.6 kW
Lift motor(s): 7.9 kW
Travel speed with/without load: 16 km/h
Lifting with/without load: 0.56/0.37 m/s
Lowering with load: 0.56 m/s
Overall height: 2260 mm
Battery weight: 0.962 t
New steering pump motor (2025)
Operating hours: 5579

Year of manufacture: 2012

Technical Data

Manufacturer: Crown
Model: SC 5360 1.8
Electric 3-wheel forklift
Weight: 2.88 t
Standard tyres: 2x/2
Model series: SC 5300
Overall width: 1123 mm
Turning radius: 1.694 m
Fork length: 1600 mm iForks weighing forks
Drive system: D
Rated load limit at LSP: 1.8 t
Load centre: 500 mm
Lift height: 3.5 m
Voltage: 48 V
Drive motor(s): 9.6 kW
Lift motor(s): 7.9 kW
Travel speed with/without load: 16 km/h
Lifting with/without load: 0.56/0.37 m/s
Lowering with load: 0.56 m/s
Overall height: 2260 mm
Battery weight: 0.962 t
New steering pump motor (2025)
Operating hours: 5579

iForks weighing forks for forklift new price 4300 ,- €
