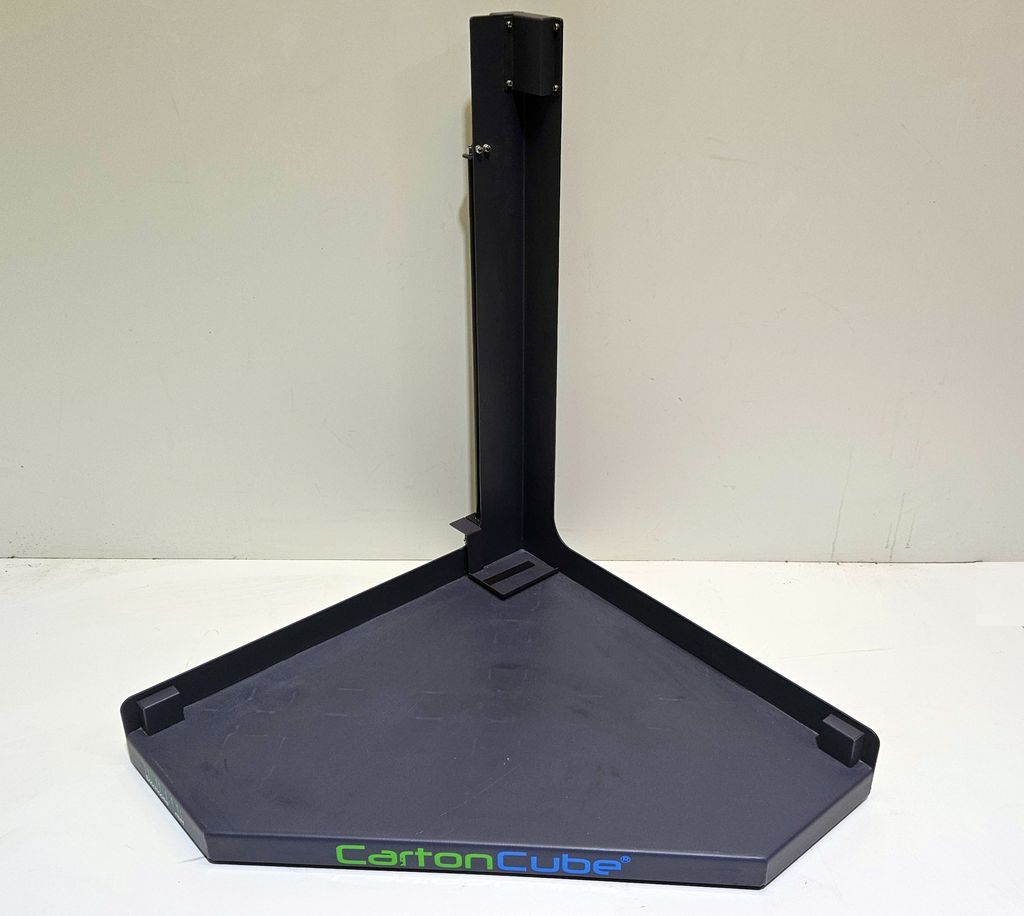

Bosche Volume Scale 3D Silence 600

Volume and weight capture for master data acquisition and master data maintenance in the warehouse

Precise volume and weight capture for warehouse management and order picking.
Non-contact measurement with laser sensors
Weighing range up to 150 kg
Easy integration into IT systems

Ideal for precise freight calculation and master data acquisition

✔ Professional weighing technology
✔ Original BOSCHE quality

Fast - Accurate - Reliable

Modern warehouse management and order picking require precise article master data. Improving process quality includes the accurate determination of dimensions (girth) and weight for exact freight billing and the actual transport or storage space required. The BOSCHE Volume Scale 3D is the ideal tool for non-contact volume and weight capture of packages. The semi-automatic measurement (length x width x height and weight) is completed in seconds. Based on the dimensions, the correct packaging material can be determined and warehouse loading plans can be organized. Three high-precision laser sensors scan the cuboid-shaped cartons for non-contact dimension capture. During weighing, the corresponding volumetric weight is calculated. An optional camera can capture the respective product photo for the master data.

Features of the volume scale
Static volume measurement of parcels
Fast, non-contact dimension capture of packages
Measuring frame made of powder-coated steel
Low construction height for easy placement of packages
Weighing range 30 kg, 60 kg or 150 kg (weighing accuracy up to 10 g)
Reliable weighing through three calibratable, laser-welded load cells
Three high-quality laser distance sensors with laser class 2
Measurement accuracy up to 1.5 mm
Maintenance-free and wear-free design of the weighing technology
Simple operation with high user comfort
Easy integration into merchandise management and shipping systems
Direct connection to existing PC systems via USB interface (or optionally via Wi-Fi)
Data transfer to higher-level IT systems or WMS (warehouse management systems) in modern formats (SQL, CSV, REST)
Simple process integration thanks to WINDOWS 10 operating system (WINDOWS network client)

Intuitively operable software provides all data at a glance

Weighing platform /Steel powder-coated)
3 integrated laser sensors
3 high-precision load cells (BOSCHE)

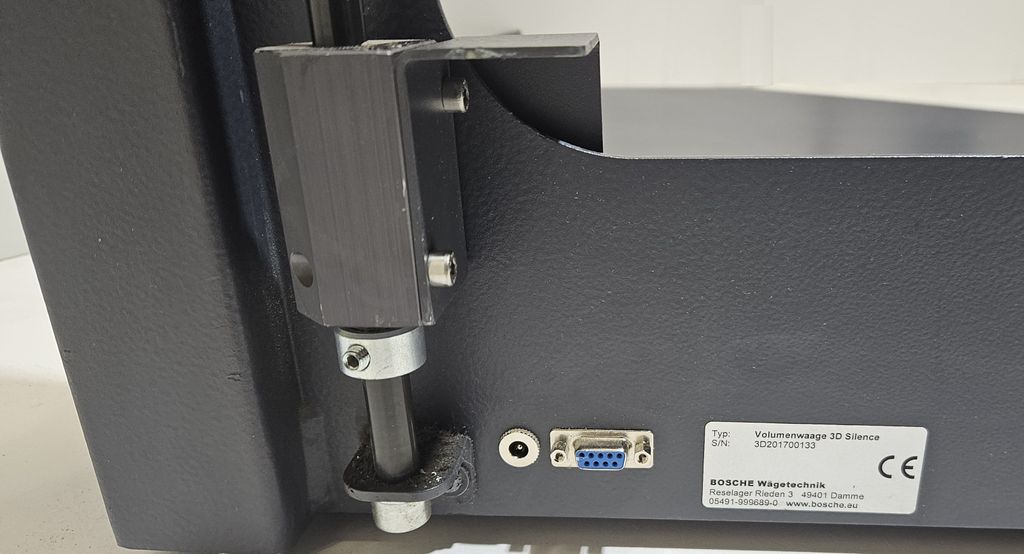

Digital junction box with interface output
Power supply via power adapter

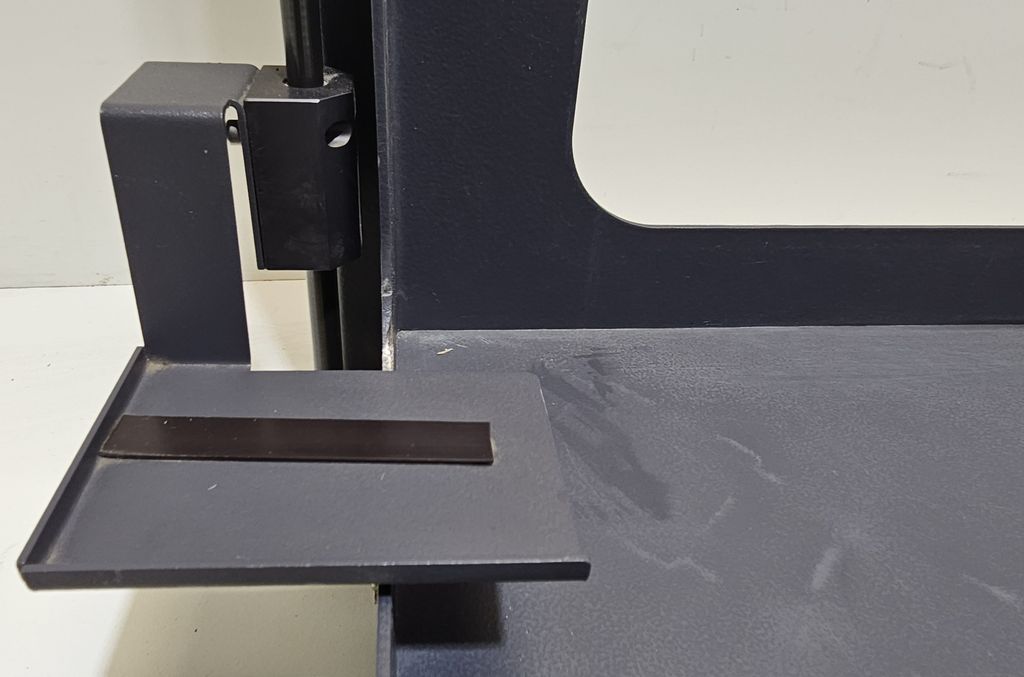

Measurement stops for measuring non-cubic objects

Application areas
Parcel measurement => Length x Width x Height => Girth => Volume measurement (accuracy to 1.5 mm)
Master data acquisition - freight checkpoints
Air freight control - freight acceptance
Packaging planning - calculation of packaging sizes for optimal shipping
Capacity planning - planning of storage spaces
Profitability assessment of storage space and packaging processes
Optimised forklift trips
Best possible use of cargo space in trucks
Master data acquisition in seconds: height, length, width, weight

Weighing technology - measurement technology
The scale platform is connected to a Windows PC via an interface.
The software included in the delivery visualises weight and dimension data directly on your Windows computer.
The calculated volume and volumetric weight are also displayed.

Construction

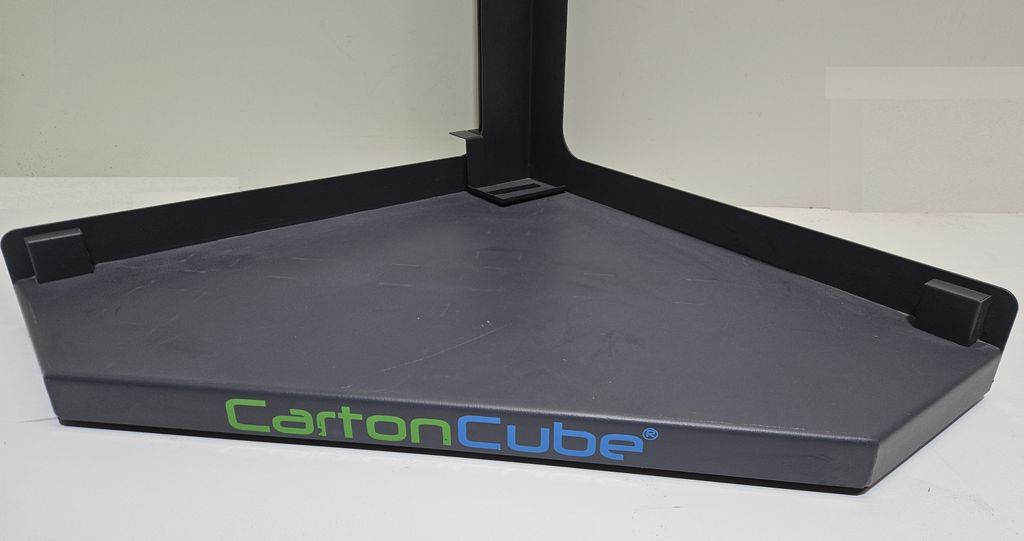

The extremely flat weighing bridge substructure made of powder-coated steel is exceptionally robust. It is equipped with three laser-welded load cells.
Three high-quality laser distance sensors of laser class 2 ensure volume measurement. These measure the length, width and height of the parcel to an accuracy of 1.5 mm.
For optimal integration into your processes, the BOSCHE 3D scale is available in three different sizes.
Weighing range: 30 kg, 60 kg or 150 kg.

Delivery without software

HxWxD = 1000 x 780 x 780 mm

Product video

Volume scale 3D Silence: List price 8,663.00 € gross
Software VolumeScannerProfessional: 1,236.00 € gross
