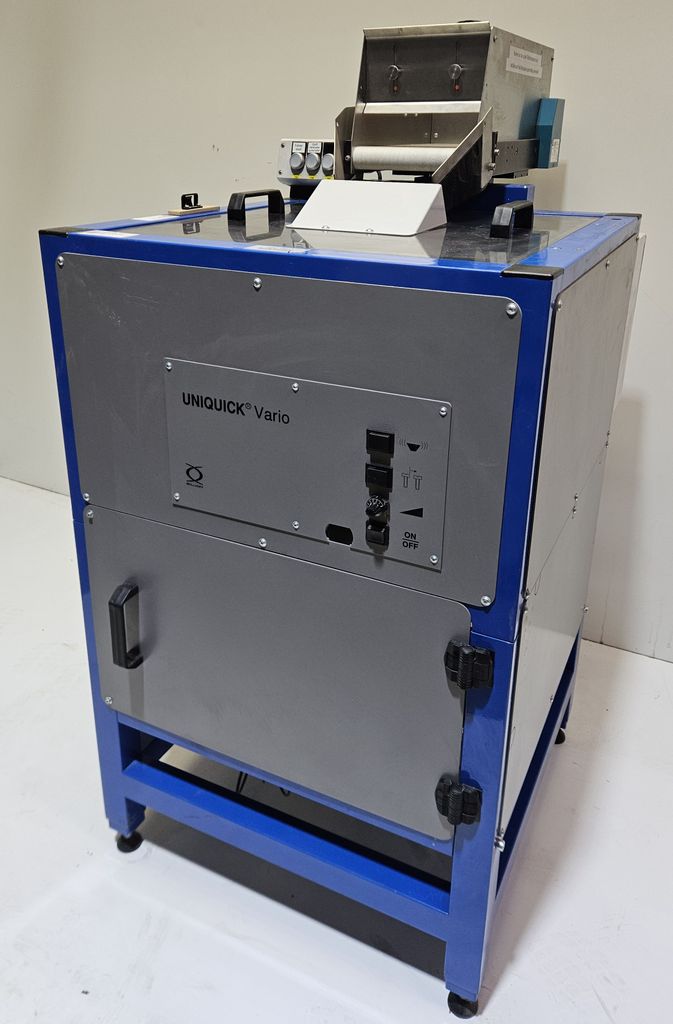

Böllhoff Uniquick Vario Screw Feeder

UNIQUICK Feeder
Type 360
Plastic sorting pot ∅ 360 mm
Quiet and surface-friendly conveying
Optimal helix dimensions depending on the conveyed goods (width and height)
Integrated and controlled baffle
High wear resistance
Uniform feed rate through amplitude control
In sound-insulated housing on a frame
Track width: 20 mm
Head-Ø of the fastener up to 20 mm
Length of the fastener up to 55 mm
Filling volume: 3 l

SIM BB-10-C (ws) Belt Hopper
Hopper tub, chute: stainless steel
Belt: white with FDA approval
Filling volume: 10 liters
Max. filling weight: 35 kg
Drive: AC geared motor 230V / 50Hz
Hopper with innovative drive to ensure a metered, quiet and part-friendly supply of screws and fasteners.

UNIQUICK Multi
Modularly expandable 3-way switch
Distributes the tested screws to three stationary screwdrivers

Singulation
Adapted outlet rail
Precise guidance at the head
Modular design
Few format-dependent parts
Reproducibility of the component
Sensor monitoring
Maintenance-free

Noise insulation
Screw conveying in the plastic pot
Lining with sound-absorbing material
Airtight blowing of screws

Compressed air maintenance unit
Compressed air connection: 6 bar
Power supply: 230 V AC
Year of construction: 2017

Dimensions: HxWxD 1050 x 650 x 650 mm

Technical data
