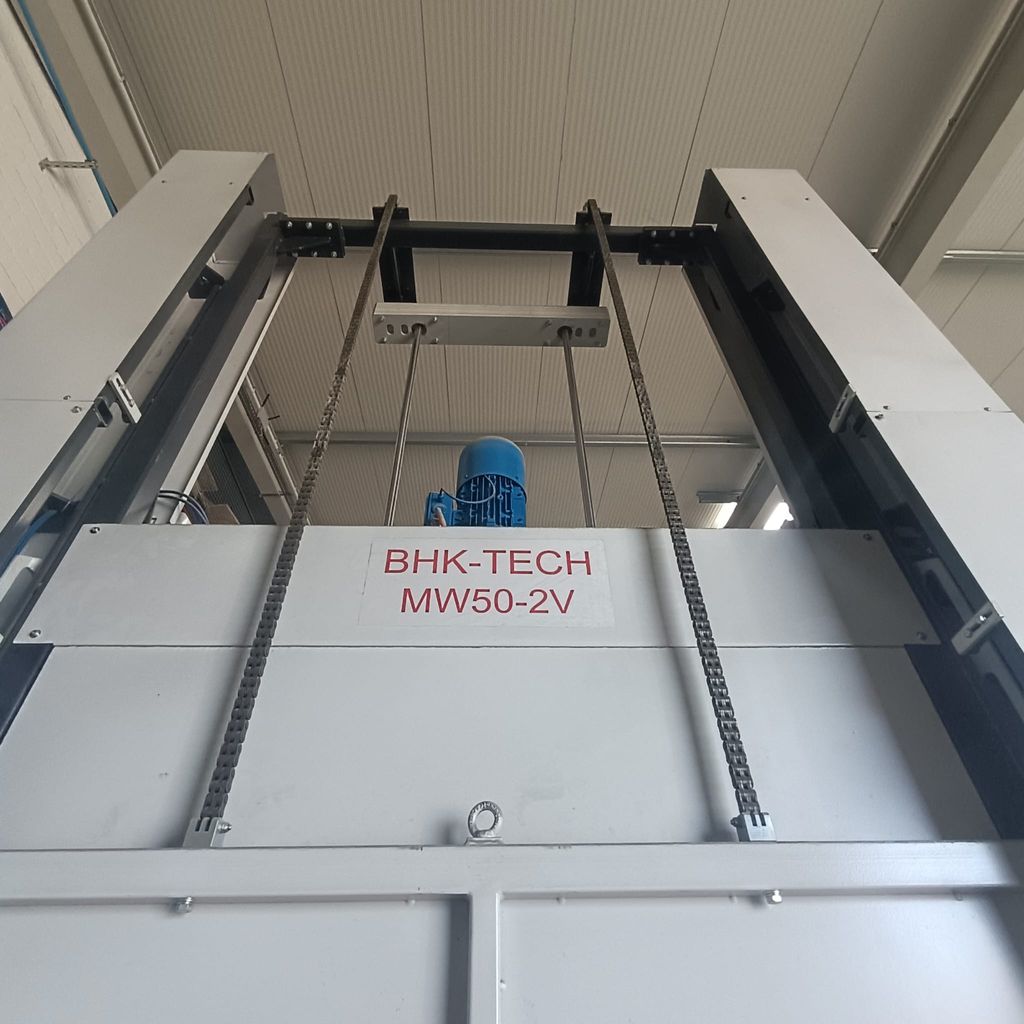

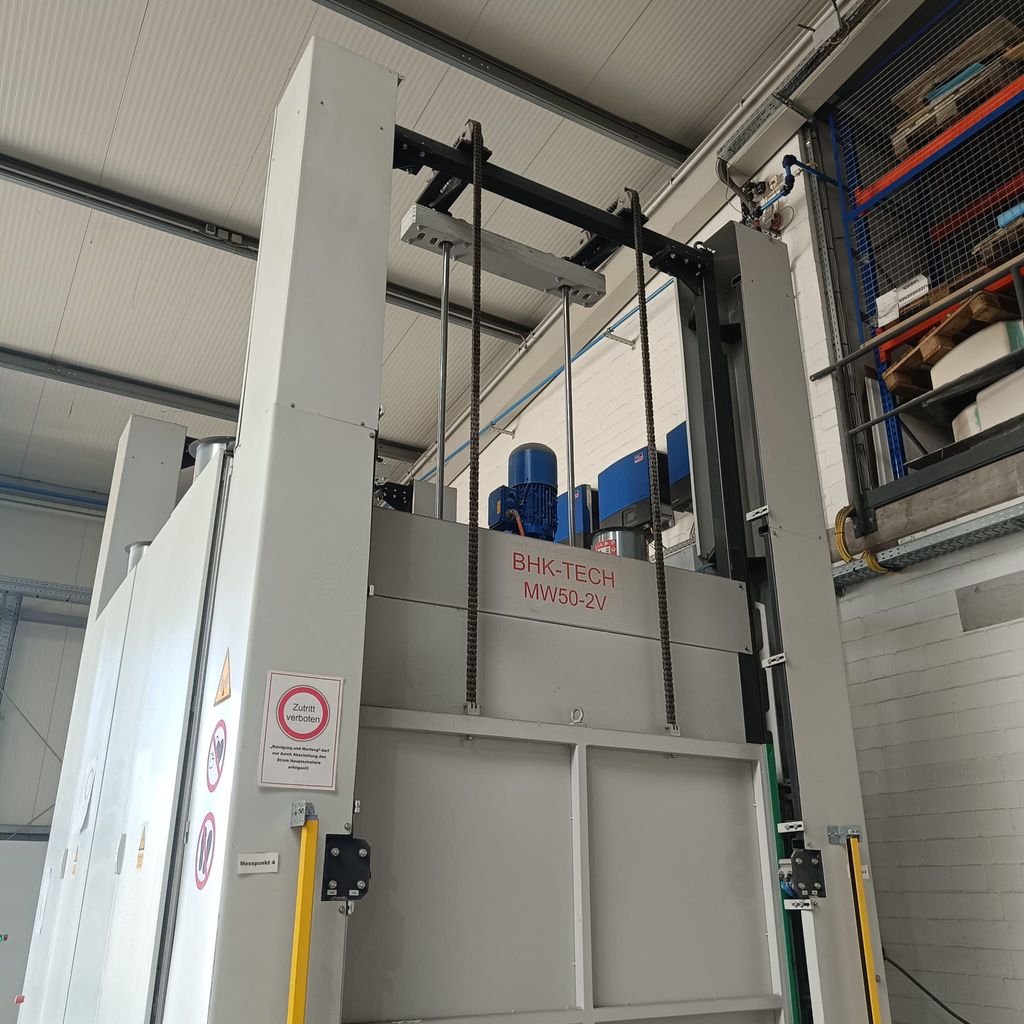

BHK-TECH MW50-2V Microwave System

System and Function Description

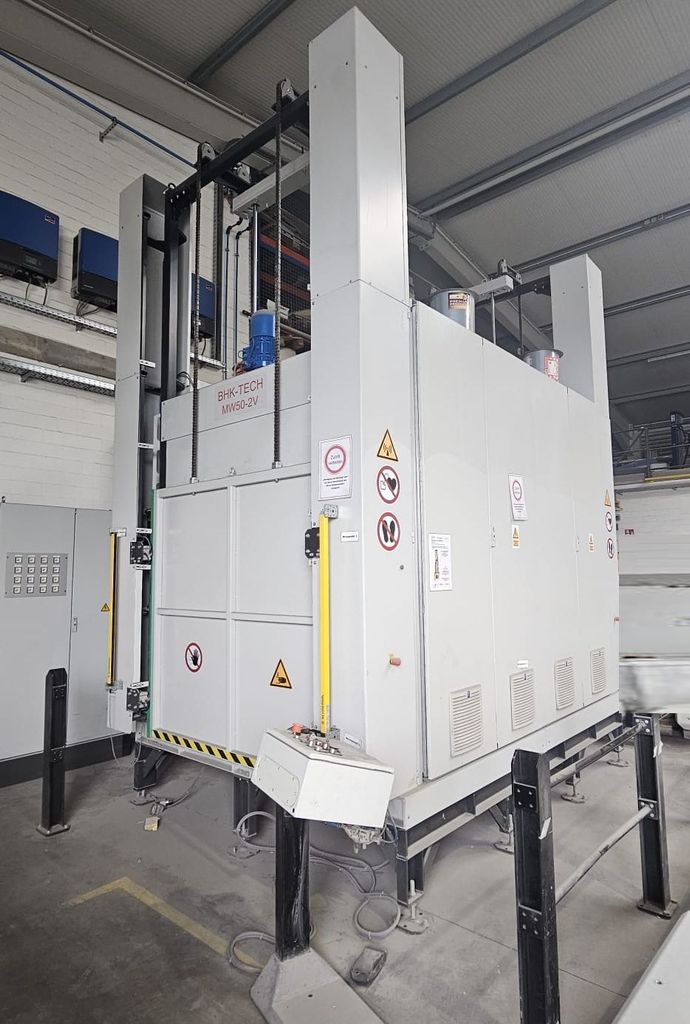

Microwave system, consisting of two MW50 V microwave modules, an internal roller conveyor and
two external roller conveyors.

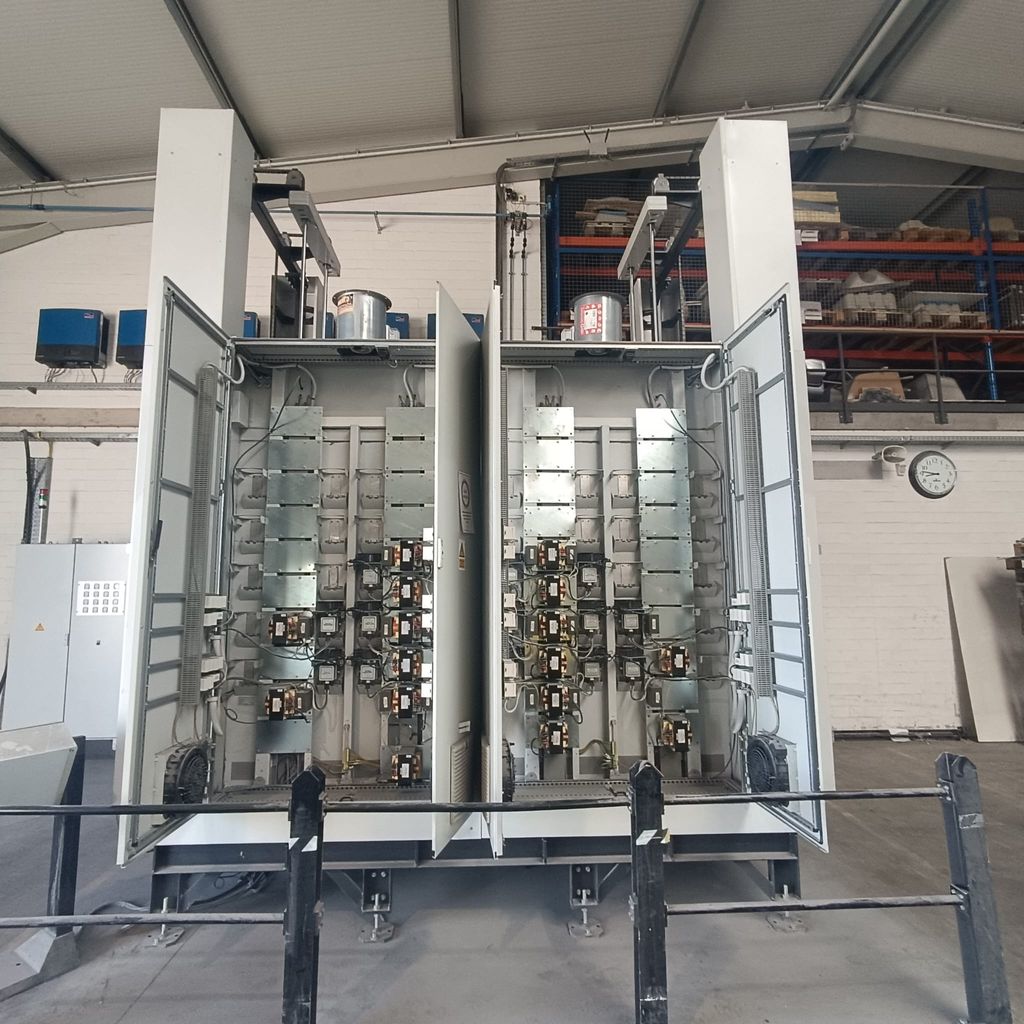

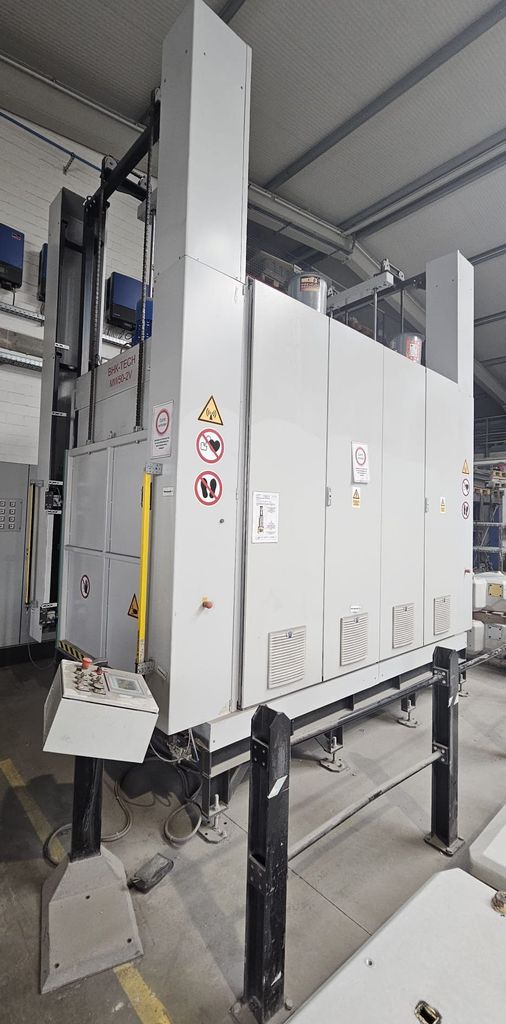

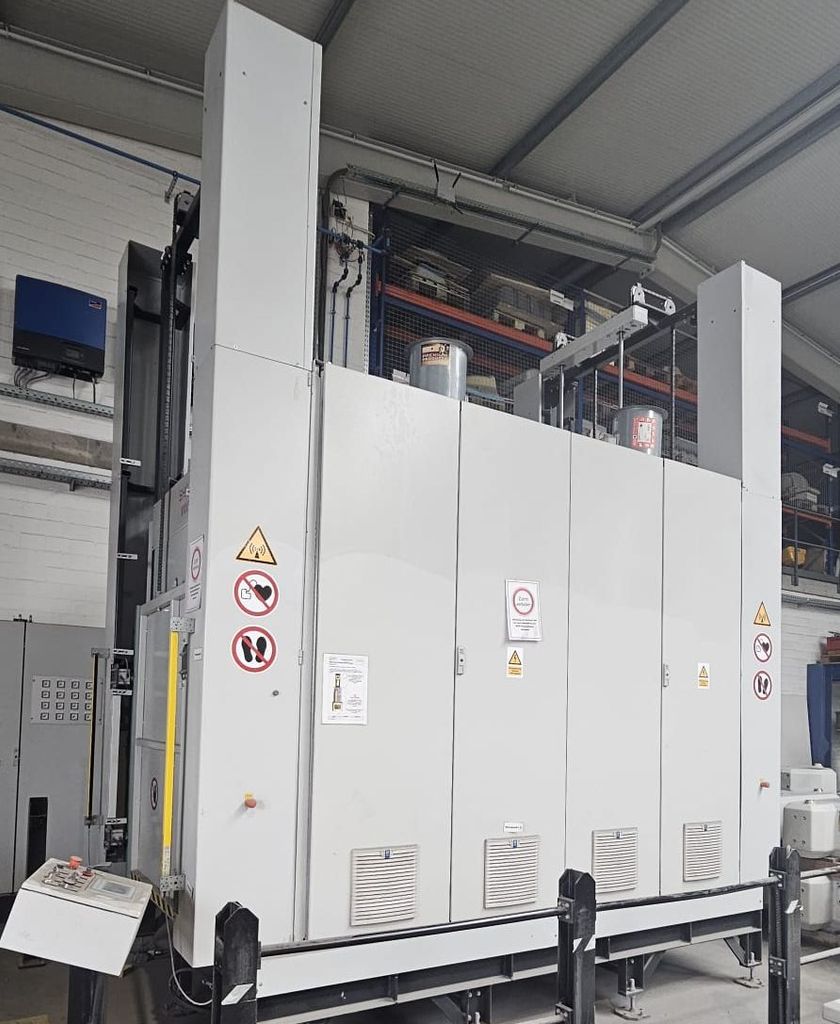

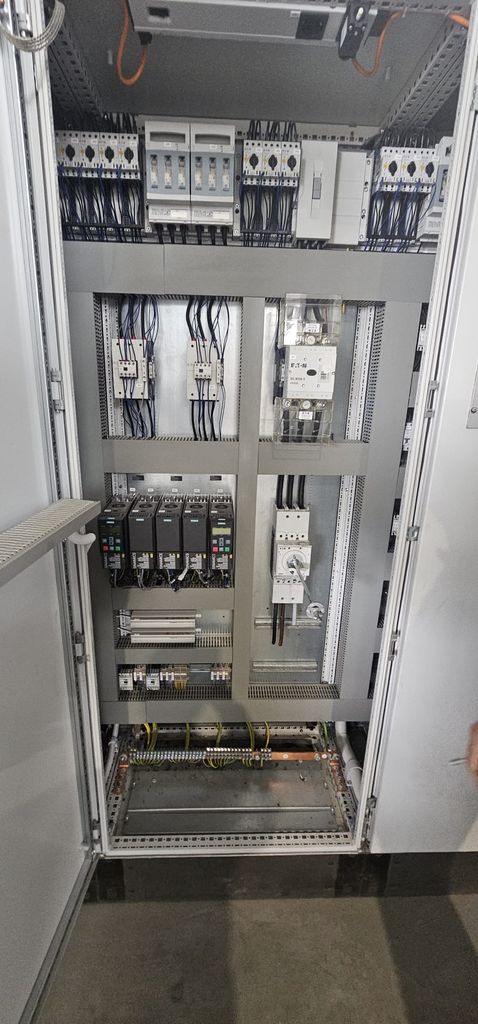

The actual microwave chamber is made of 3 mm stainless steel sheet and has control cabinet segments
mounted longitudinally, in which the high-frequency components are installed behind mechanically and
electrically secured covers.

The roller conveyor system for transporting the pallet within the system is manufactured in a microwave-
shielded form.

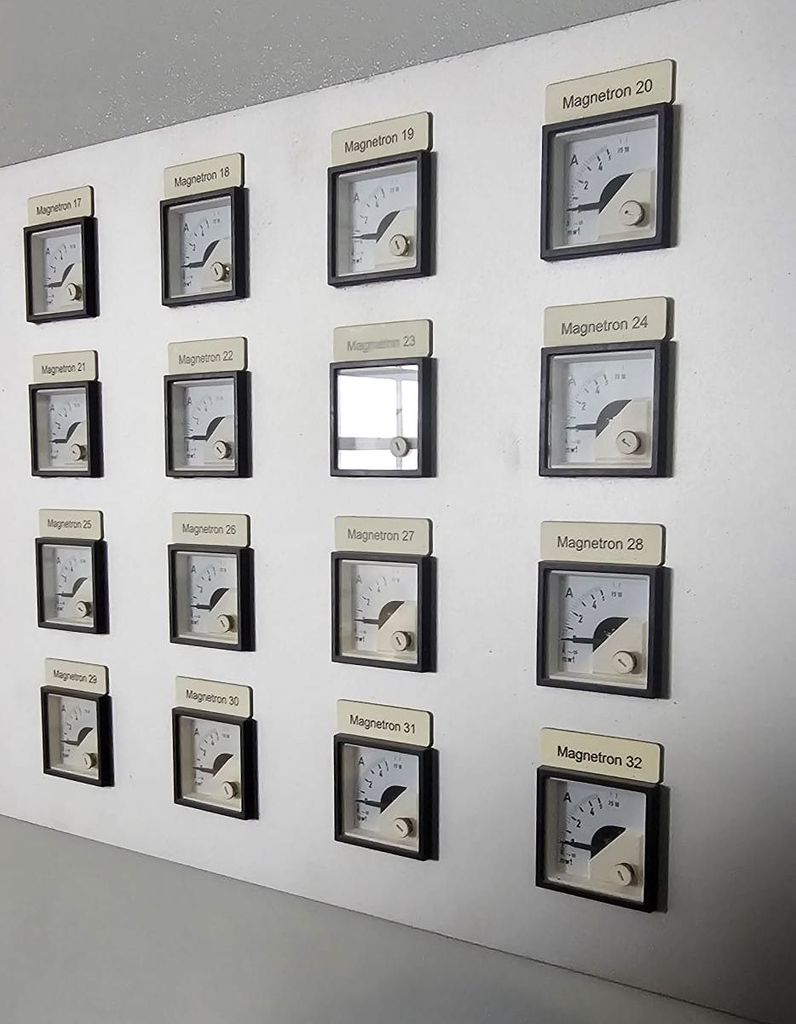

The microwave system is equipped with a total of 32 magnetrons, which deliver the energy directly into the
chamber interior.

This technology guarantees an even distribution of energy within the chamber.

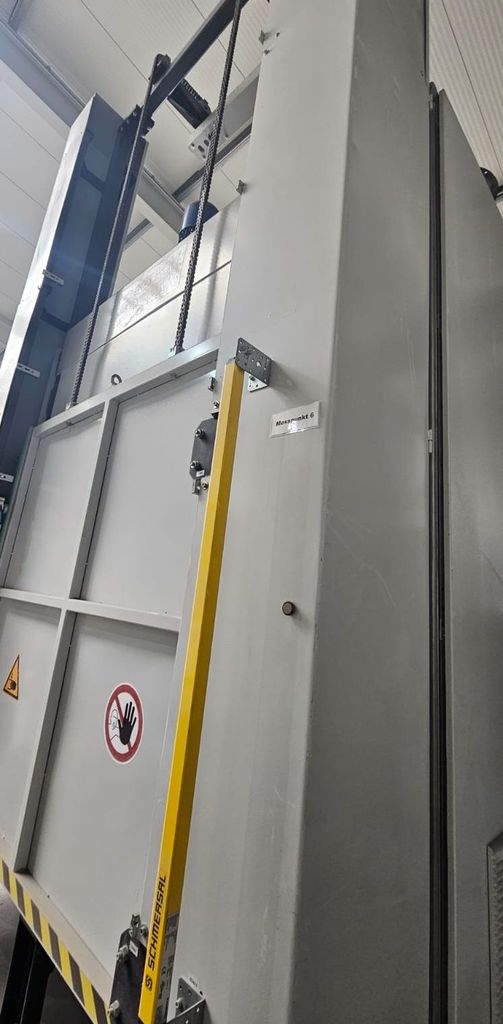

The magnetrons are only ready for operation when the door is closed and pressed.

The sealing system at the door opening prevents microwave leakage radiation.

The extraction of any vapors that may be generated is carried out via 2 exhaust fans with a total
delivery rate of 17,000 m*/h (free blowing).

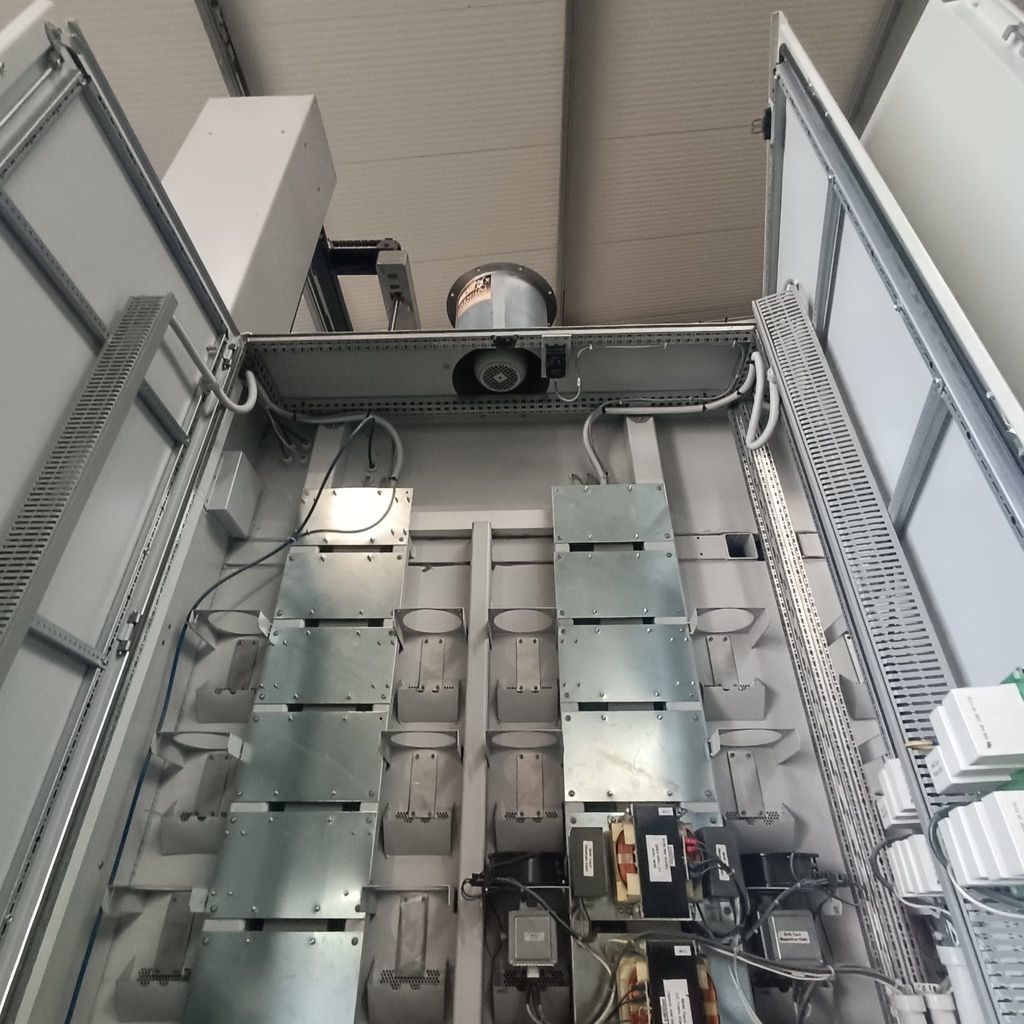

The necessary cooling of the high-frequency components is carried out via the air flow of the
exhaust fans, supported by 4 supply air fans (delivery rate free blowing approx.
3,500 m*/h each).

There is a roller conveyor in front of the system with its own drive.

The pallet is loaded and unloaded manually by the customer.

Initiators check whether the pallet is correctly positioned on the roller conveyor. The program is started
at the control panel using a switch. The loaded pallet is transported into the microwave system and
positioned using a light barrier.

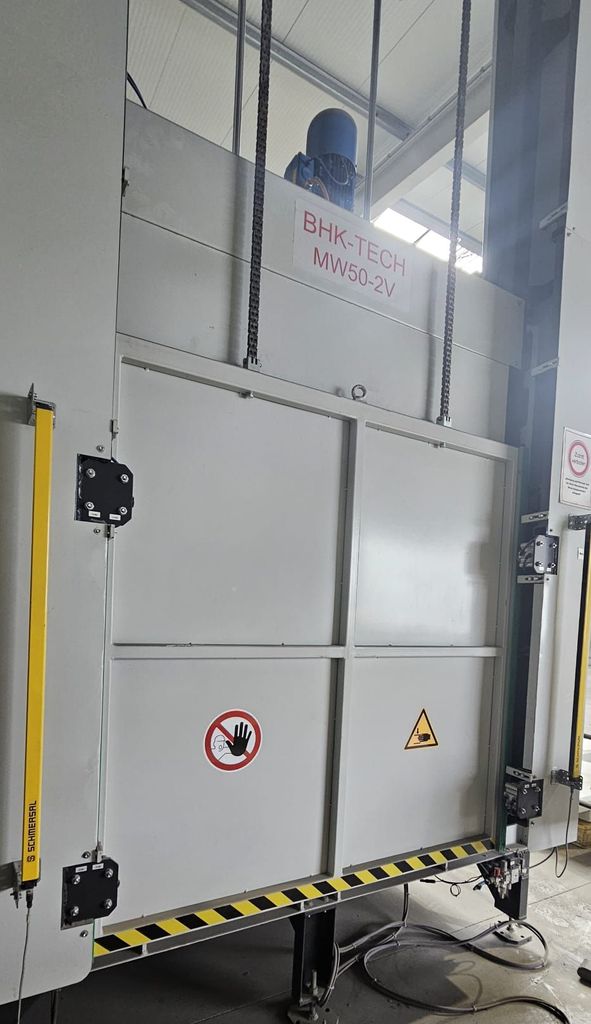

The doors of the microwave system are closed and the microwave irradiation is switched on.

After the microwave irradiation has elapsed, the door is opened and the pallet is transported to the
unloading roller conveyor.

The switch-on time of the magnetrons can be preselected in four power levels at the main control panel.

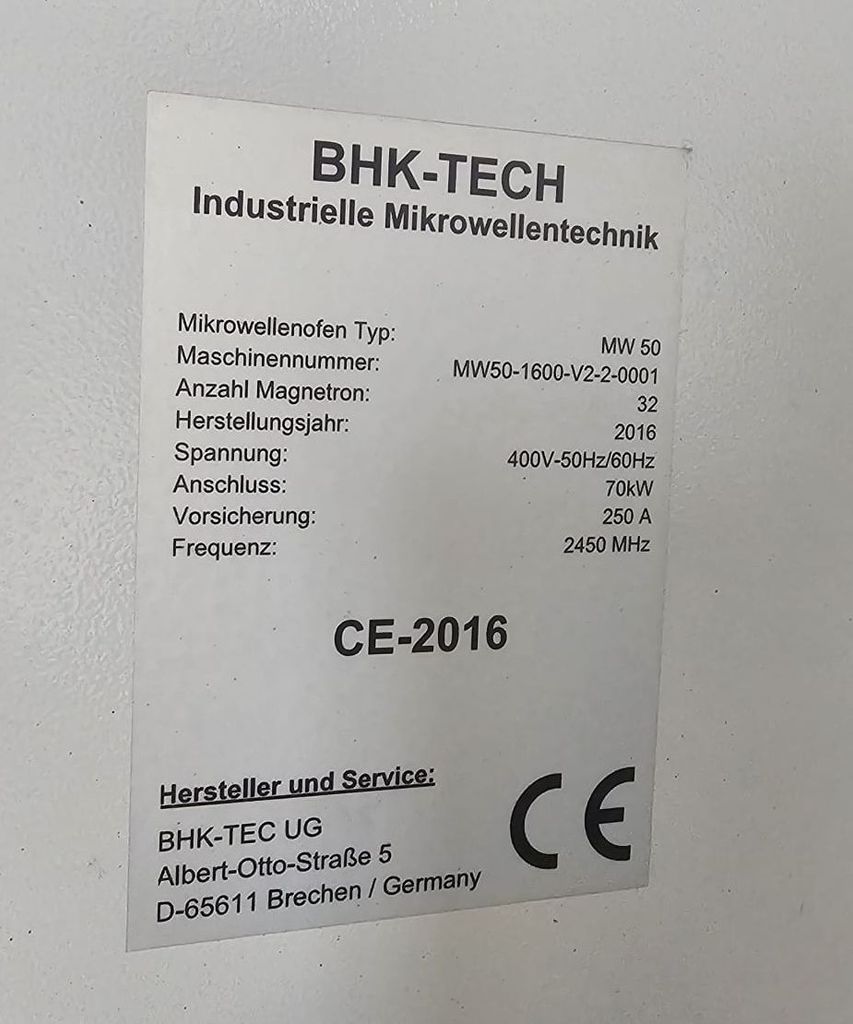

Manufacturer: BHK-TEC
Microwave oven model: MW50-2V
Number of magnetrons: 32
Voltage: 400 V 50/60 Hz
Connection: 70 kW
Fuse: 250 A
Frequency: 2450 MHz
Compressed air: 6-10 bar
Year of manufacture: 2016

Emissions

Sound pressure: 80 dB
Frequency: 50/60 Hz
Exhaust: 2 x 8500 m³/h
Supply air: 4 x 3500 m³/h
Supply air connection: 2 x 346 mm ø
Exhaust air connection: 1 x 465 mm ø

Dimensions and weight

Microwave oven: (LxWxH) 3735 x 2373 x 4756 mm
Min. room height: 5000 mm
Usable interior: (LxWxH) 3100 x 1200 x 1200 mm
Max. permissible roller conveyor load: 3000 kg
Max. permissible total weight: 9000 kg
Empty weight: 6000 kg

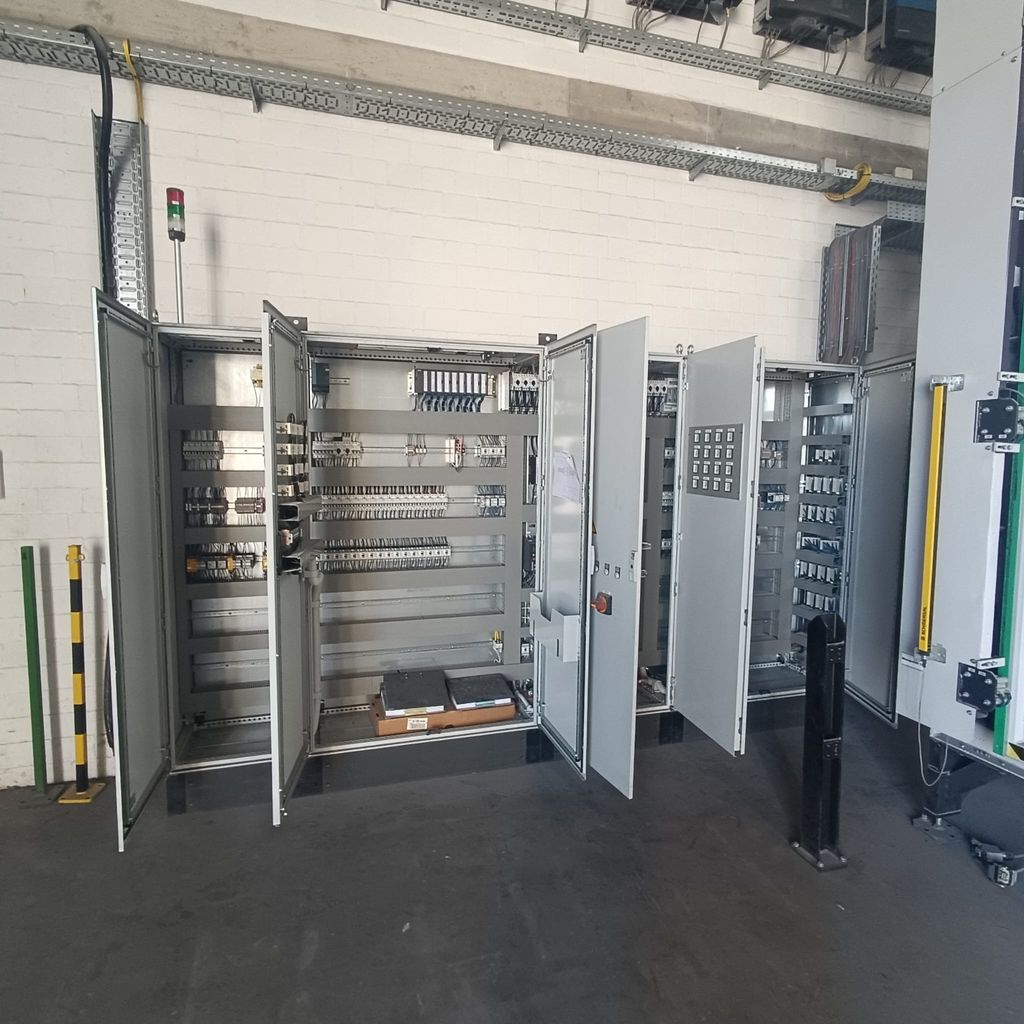

Control cabinet: (LxWxH) 3800 x 520 x 2250 mm
Weight: 700 kg

The machine is in absolute new condition
The machine has never been used
New price 300,000 €
