[EUR3,0/m] 2 x Phoenix Contact 1669628 Sensor-Aktor-Kabel 5m E221474 3 polig

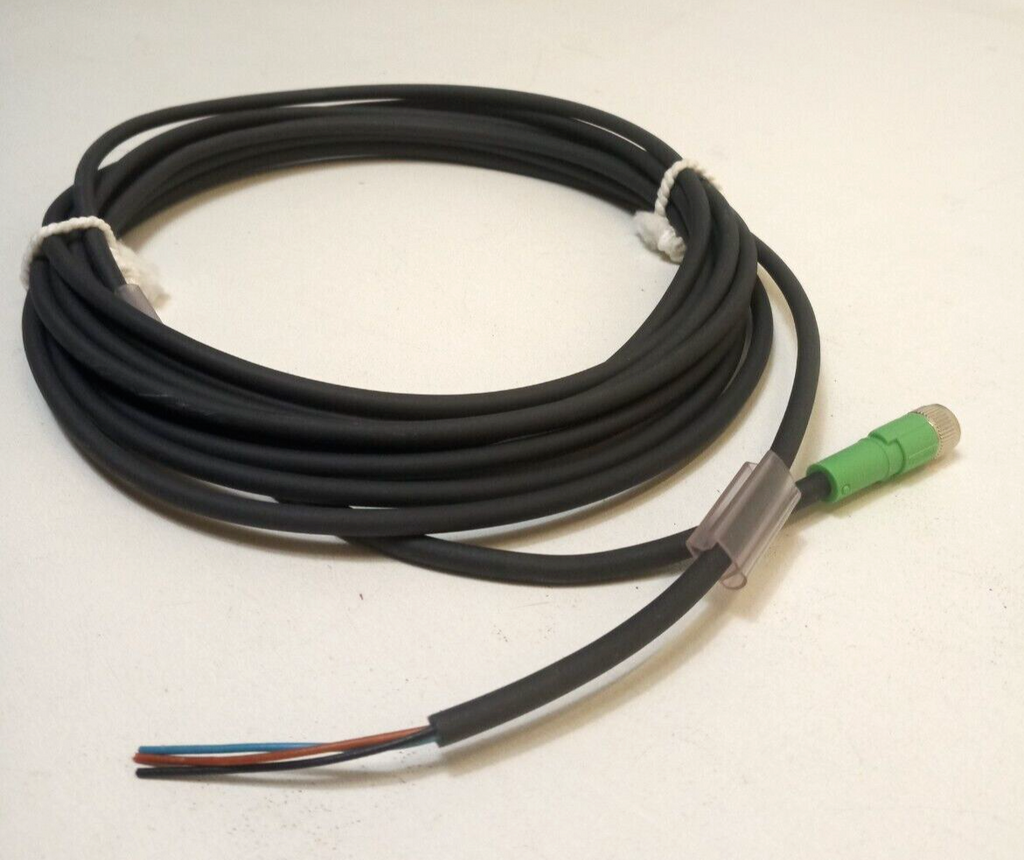

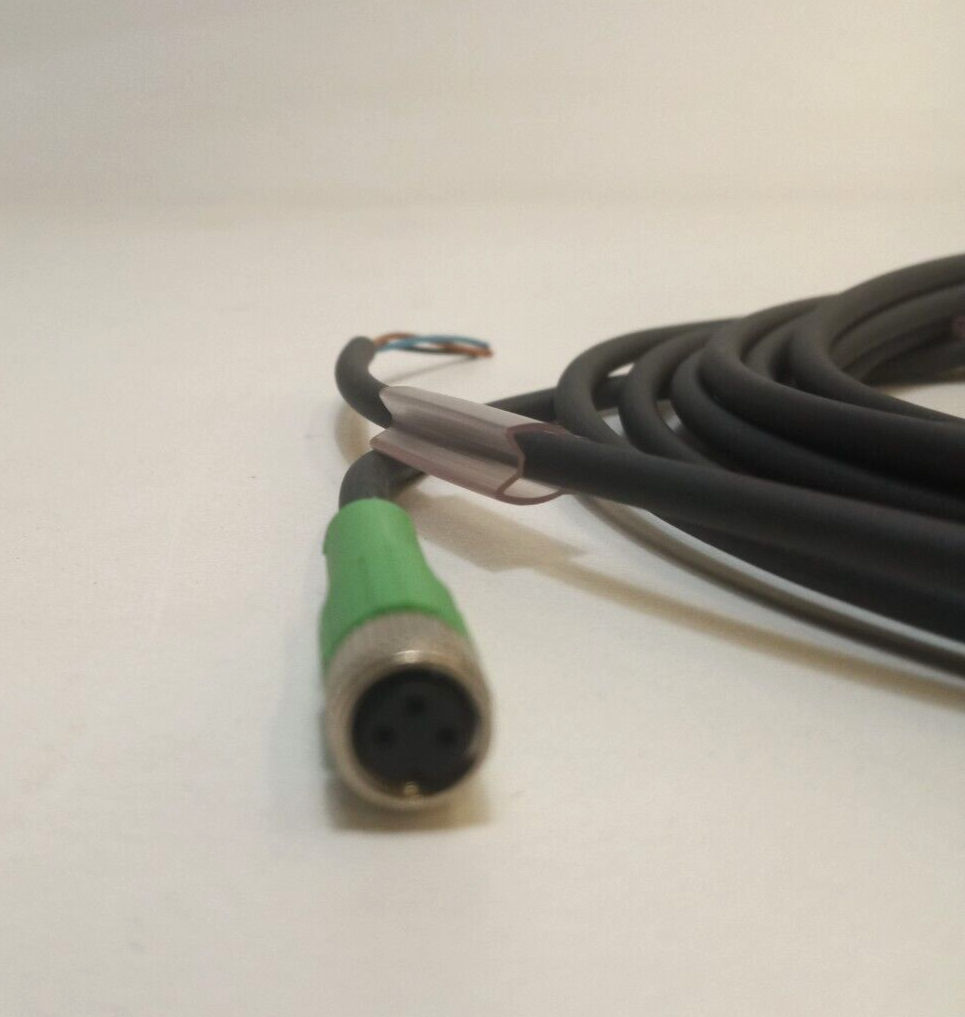

[EUR3.0/m] 2 x Phoenix Contact 1669628 Sensor-Actuator Cable 5m E221474 3-pole


Item condition: Used, in perfect condition


Property Value Connection A M8 Sheath color Black Connection B Unfinished Connection A Gender Female Connection A Orientation Straight Coding A Shielding Unshielded Length 5m Sheath material PUR Protection class IP65, IP67, IP68 Number of contacts Connector A 3 Conductor material Copper Bending radius min. 18 mm (fixed), 36 mm (movable) Housing type Connector A Socket Behavior in case of fire Halogen-free Standards cUL, cULus, EAC, IEC 61076-2-104, UL Insulation material PP AWG 24 AWG Oil resistant Yes Operating temperature min. -25°C Conductor cross-section 0.25 mm² Operating voltage 48 V Operating temperature max. +90°C Outer diameter 3.6mm Conductor resistance 78 Ω/km Nominal current 4 A Cable profile Twisted Pair
