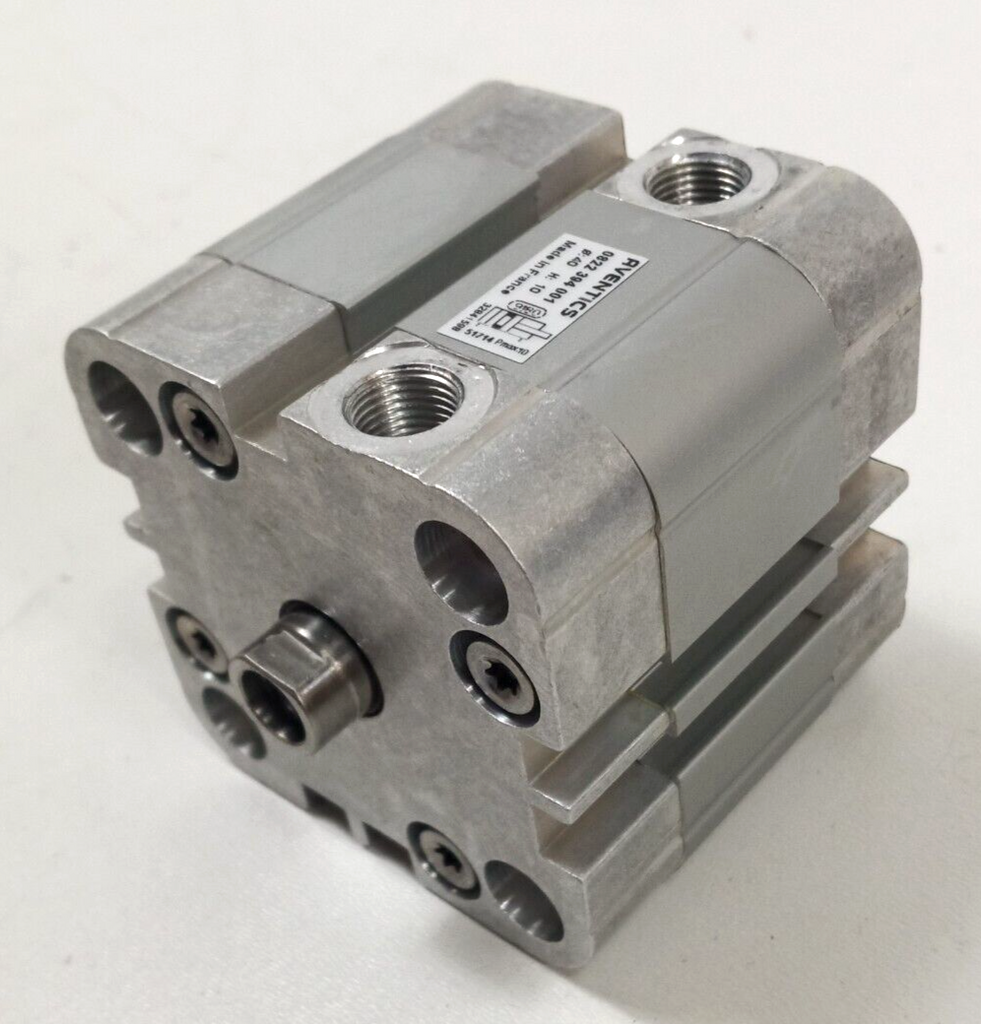

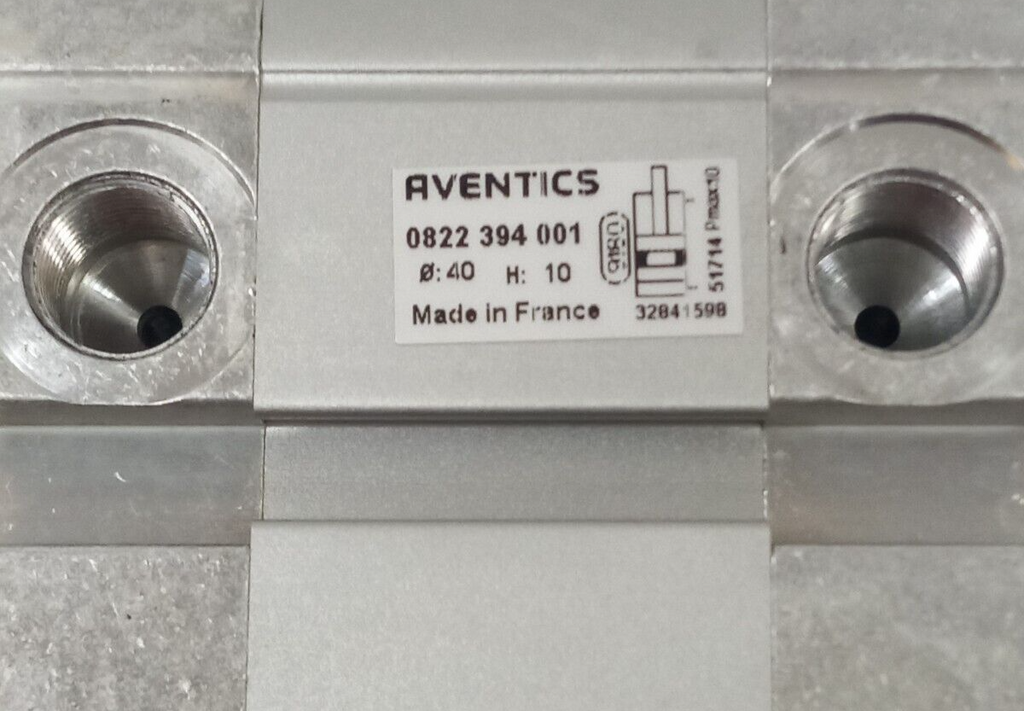

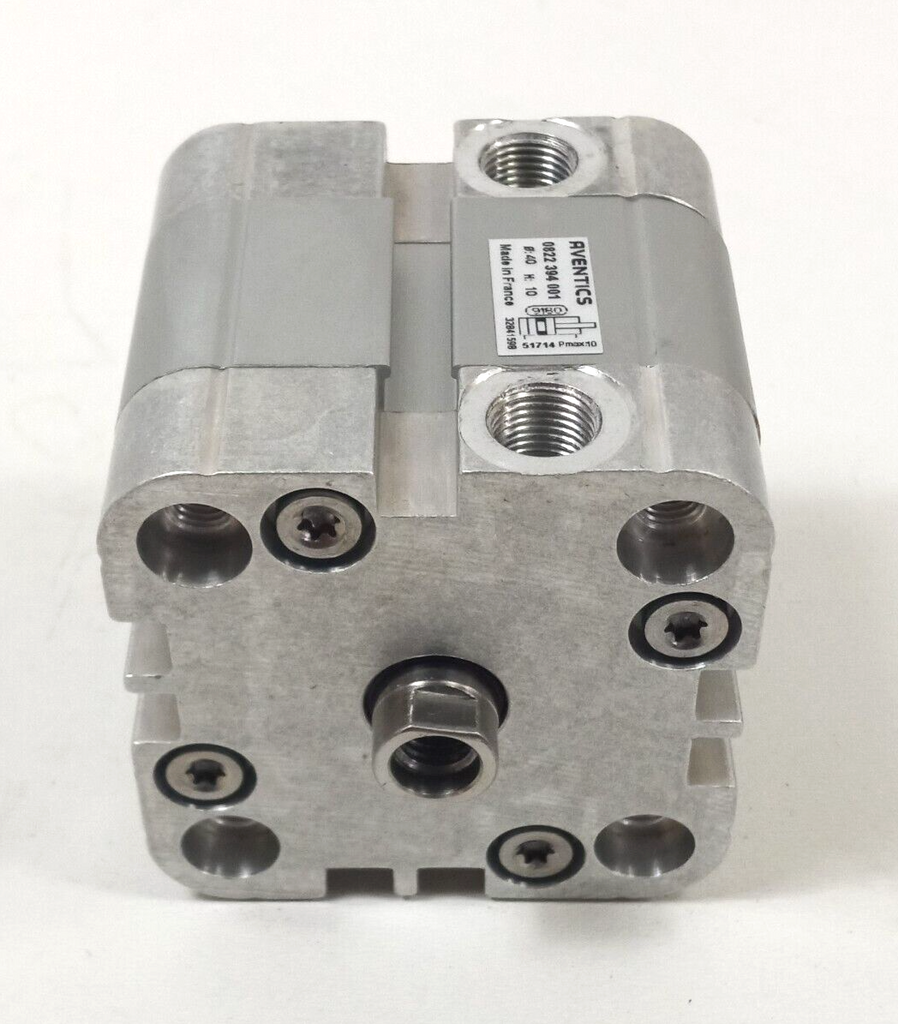

Aventics Bosch 0822394001, Pmax 10 Bar, Compact Cylinder, Cylinder

Item condition: New (other)

Damping elastic
Air connection G 1/8
Stroke 25 mm
Piston diameter 32 mm
Piston rod thread M10x1.25
Ambient temperature max. 80 °C
Ambient temperature min. -20 °C
Operating principle single-acting, pressure-less retracted
Operating pressure max. 10 bar
Operating pressure min. 1.3 bar

H1R5A11K24-1_HS
R14A11K5-PD(BOR)
