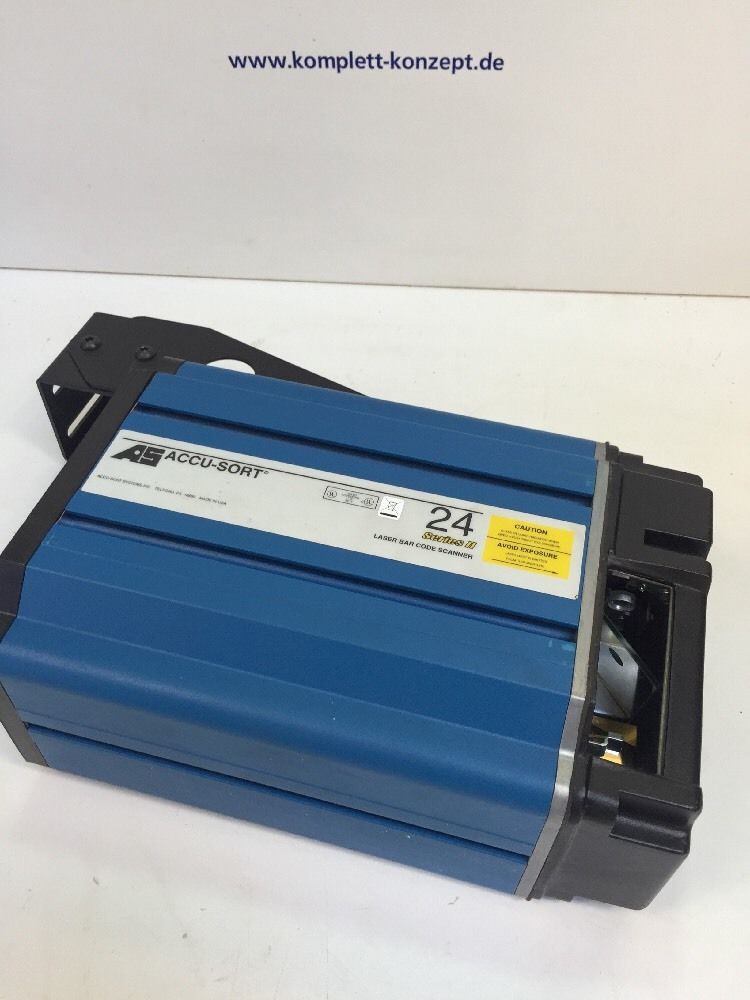

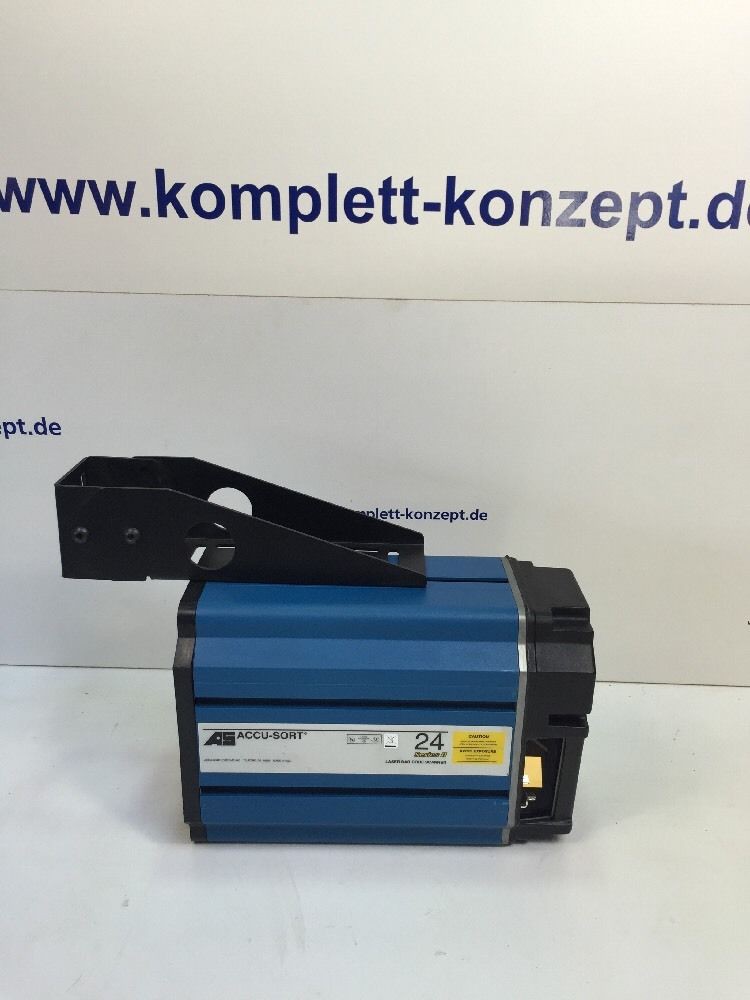

AS ACCU-SORT 24i Series II Laser Bar Code Scanner DRX Laser

Product Specifications

Scan Rate: 300-3000 scans per second
Depth of Field See read charts (application and code dependent)
Laser Type: 650 nm laser diode
Visual Diagnostics: Trigger
Laser on GO/NVC (only on 24i)
Bar Code Types: All standard 1D symbologies

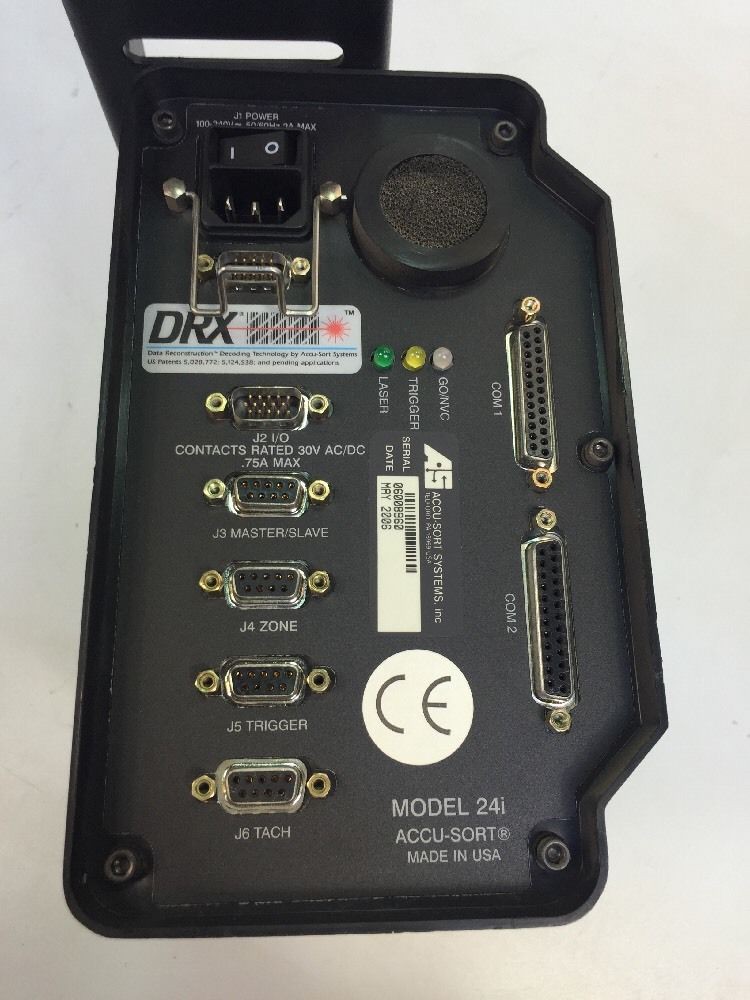

Connectors: 4 Serial ports
 1 I/O port
 1 Master/Slave (24i)/
 External Logic (24e)
 1 Zone input
 1 Trigger input
 1 Tachometer input
Communications: Ports:
 RS-232 (up to 115200 bps)
 RS-422
 RS-485 Multidrop
 Current Loop
Options:
 DeviceNet
 Profibus
 Ethernet
Outputs: NVC
GO
Life Light
Error Light
Temperature Range: 32°-122°F (0°-50°C)
Relative Humidity: 10%-90% non-condensing
Enclosure: NEMA 12 (IP 54)
Approvals: UL, cUL, FCC, CDRH Class II
Power: 100-240VAC, 50/60 Hz, 20 Watts
Size: Length - 12.0 [30.5 cm]
Width - 5.1 [12.8 cm]
Height - 8.3 [21 cm]
Weight - 13 lb [5.89 kg]

Zum Datenblatt

Bj 2006
